RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling

RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling

Small Water Well Drilling Machine

Rotary Water Well Drilling Machine

Place of Origin:

China

Brand Name:

Rancheng

Certification:

CE,ISO 9001:2000

Model Number:

RC120W

Contact Us
Request A Quote
Product Details
Drill Depth:
0-120 M
Drilling Diameter:
90 -220mm
Drill System And Operation:
Hydraulic
Geology Drilled:
All Kinds
Drilling Way:
Both Mud Pump Drilling And Air DTH Drilling
Power:
18.7KW
Highlight:

Small Water Well Drilling Machine

,

Rotary Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping,Can be loaded into 20-foot container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per month
Product Description

RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling

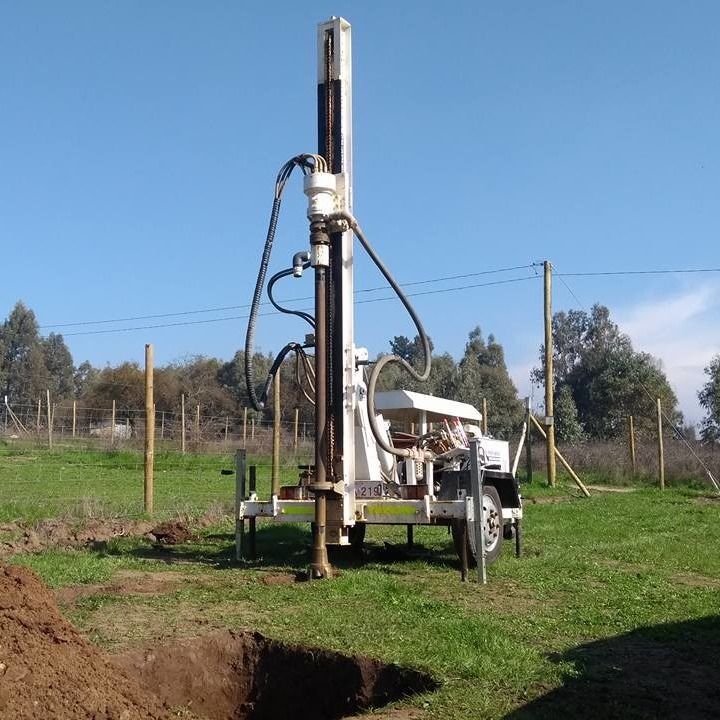

RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling 0

Product Introduction

RC120W Small Water Well Drilling Machine is a Trailer mounted small water well drilling machine which uses advanced hydraulic technology, top head driving, and it can work with both mud pump and air compressor. This well drilling rig is compact fully hydraulic, for down-the-hole hammer and rotary drilling up to 120 meters. It has the characters of lightweight, high efficiency, and powerful multi-function. This Small Water Well Drilling Machine can be your most economical and practical choice!

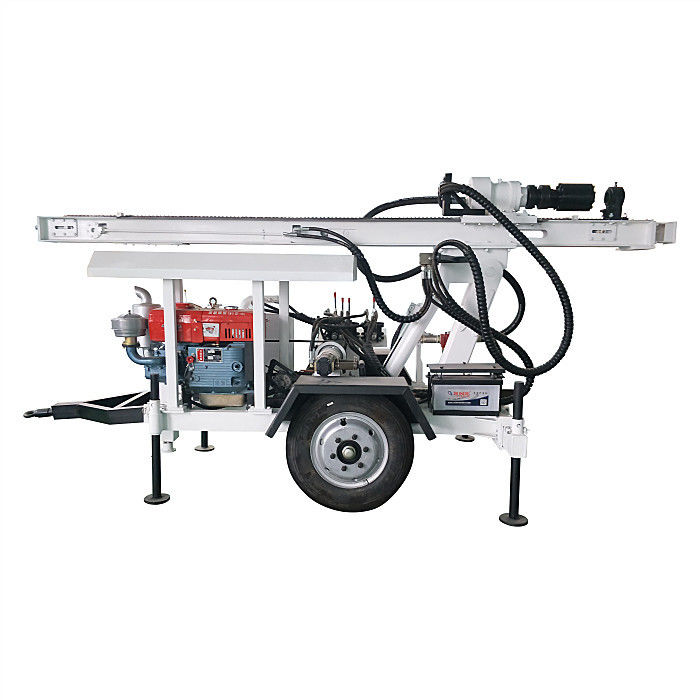

RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling 1

Application

RC120W small drilling machine is mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes, and other wells, especially for water intake projects in mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive.

RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling 2
In particular, this small drilling rig can drill on hard rock layers, and it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 1300kg allows it to be pulled by a pick-up it is packed with features.

RC120W Small Water Well Drilling Machine Suitable for down-the-hole hammer and rotary drilling 3

Advantages

1, this small water drilling machine is a light, efficient and versatile drilling well machine

2, The drilling rig adopts a two-wheeled trailer type, which makes the transition convenient and quick.

3, this drill rig is one very economic and practical small bore well drilling machine, the economic benefits created for the users are extremely impressive.

4, this hydraulic drilling rig can work with both mud pump and air compressor, can drill on hard rock layer, it can work efficiently under various geological structures.

5, It is the most popular machine meeting most requirements for a combination drilling machine, able to complete rural water supply wells in sediments and hard rock.

6, this drilling machine weight is about 1300kg, which allows it to be pulled by a pick-up

7, This small water drilling rig is compact in structure and convenient to carry. The whole machine adopts a full hydraulic drive and has a low failure rate.

8, this small well drilling rig is a Diesel engine for power, can be used in any area, especially the place where electricity is not available.

9, this water drill rig is suitable for drilling small-aperture wells, geothermal air-conditioning holes, and other wells, especially for water intake projects in mountainous and rock formations.

Product Specifications

Model RC120W
Geology drilled All kinds
Drilling way Both mud pump drilling and air DTH drilling
Drill depth 0-120 m
Drilling Diameter 90 -220mm
Drill system and operation Hydraulic
Rotary head
Rotation Torque 2200N.m
Rotation speed 60-120rpm
Lifting capacity 5000KGS
Pull down capacity 3000KGS
Drill pipe
Drill pipe length 2.00 meter
Drill pipe diameter 60/76 mm
Mud pump
Flow capacity 200 liter/min
Max. working pressure 1.8MPA
Hydraulic system
Hydraulic tank capacity 140 liter
Dimension
Overall length 3200 mm
Overall width 1400 mm
Overall height 1500 mm
Diesel engine
Power 18.7KW
