30m Hydraulic Mechanical Transmission Pile Driver With 30HP Diesel Engine
Product Description
RCKM-30S Small Crawler Pneumatic Pile Driver for solar pile driver or Road Side Fence or mini pile drilling ,it is multi function.it can be solar screw pile drilling ,auger pipe drilling or DTH drilling .
This machine with 30HP diesel engine, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
This Small hydraulic earth screw pile driver is suitable for solar power industry projects. This machine is equipped with a crawler travel device and uses hydraulic travel motor technology. The technology is relatively advanced, the maneuverability is good, and it can adapt to harsh construction environments such as swamps, quagmires, and potholes. The brand engine has strong power, reliable performance and stable operation for a long time. The overall structure of the drill frame is reasonable. It uses thickened steel plates and incorporates secondary welding technology to ensure that the machine body does not shake or tilt during operation, improving construction safety performance.
This Small crawler piling rig is suitable for high-speed railway contact network support piles, slope protection piles, solar photovoltaic power station foundation support piles, power grid renovation, civil construction, new rural construction, municipal engineering construction, landscaping and other projects. Applicable to various geological conditions. Suitable for soil layer, clay layer, filler layer, clay layer, powder layer, silt layer, sand layer and part of the strata containing pebbles.
Product Specifications
| Model |
RCKM-30S |
| Rig weight |
1.2t |
| Dimensions (L×W×H) |
2300*1300*2200mm |
| Engine power |
25HP |
| Rotary head torque |
3500N.m |
| Hydraulic oil pump |
Single pump |
| hydraulic loading system |
Cylinder chain pressure |
| Hydraulic working pressure |
20Mpa |
| Way of walking |
Crawler gearbox walking |
| Walking speed |
7-15km/h |
| cooling system |
Hydraulic cooler |
| Carriage travel distance |
2.8m |
| Piling height |
1-3m |
| Borehole diameter |
50-300mm |
| Borehole depth |
1-30m |
| Air consumption |
6m3/min |
| Adapt to rock types |
Medium hard rock ,F=8-12 |
| Climbing ability |
35° |
| Hydraulic legs |
4 |
Product Features
1.Drilling depth up to 30m, drilling diameter 50-300mm.
2.The drilling angle is adjustable from 45° to 90°, easy to operate, and the drilling efficiency is fast.
3.Advanced hydraulic system, excellent hydraulic components, long service life of hydraulic system.
4.High torque hydraulic power head ,fast drilling speed ,with the impactor can be drilled rock
5.Adopting branded single-cylinder diesel engine ,strong power ,reliable performance ,stable operation for a long time
6.Adaptable to all kinds of complex terrain ,no damage to the road surface ,flexible and maneuverable

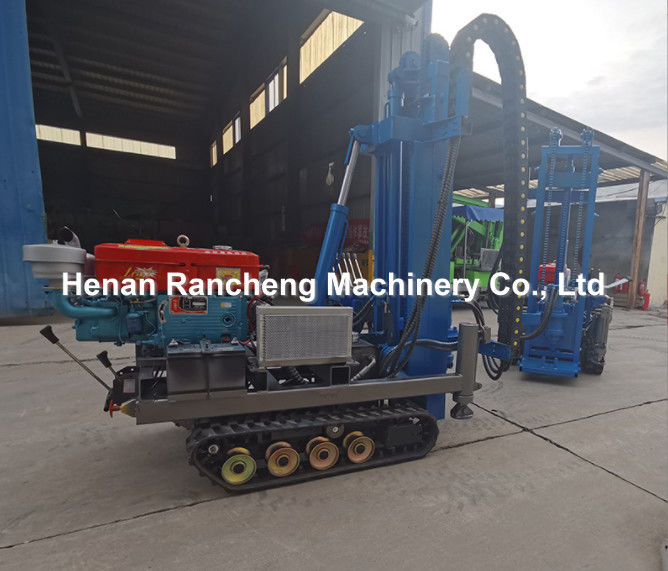

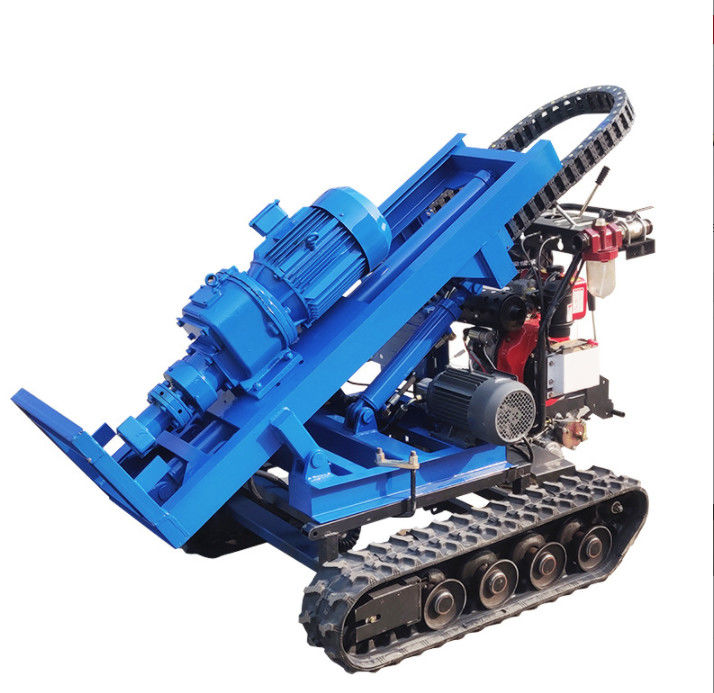

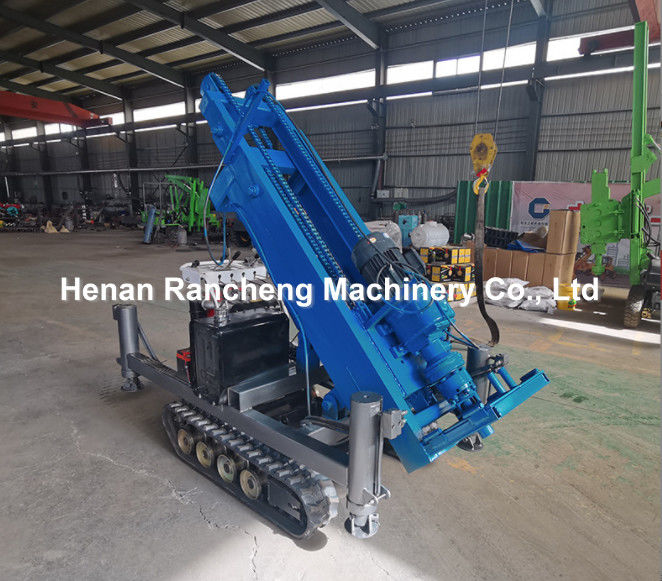

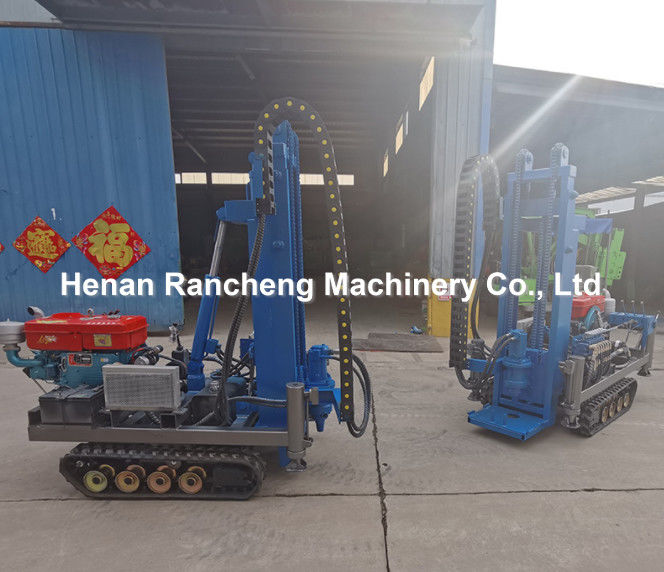

Product Image
