RCF200C 200 Meter Crawler Mounted Water Drilling Rig Machine Hydraulic Deep Water Well Drill Rigs

RCF200C 200 Meter Crawler Mounted Water Drilling Rig Machine Hydraulic Deep Water Well Drill Rigs

hydraulic deep water well drill rigs

Crawler Deep Water Well Drill Rigs

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE,ISO 9001:2000

Model Number:

RCF200C

Contact Us
Request A Quote
Product Details
Name:
Crawler Mounted Water Well Drilling Machine
Model:
RCF200C
Bore Diameter:
90-350mm
Bore Depth:
200m
Push Force:
4T
Lifting Force:
15T
Pipe Diameter:
76mm/89mm
Pipe Length:
3m
High Hydraulic Leg:
1.5m
Feeding Efficiency:
10-35m/h
Diesel Engine:
58KW Yuchai
Condition:
New
Warranty:
1 Year
Highlight:

hydraulic deep water well drill rigs

,

Crawler Deep Water Well Drill Rigs

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF200C 200 meter crawler mounted water drilling rig machine hydraulic deep water well drill rigs

Product Description

RCF200C deep water well drilling rig is adopt newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.



Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.



Application



This water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects,etc.



Technical Parameters



Model RCF200C
Bore diameter(Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4000X1800X2300mm
Weight 5000Kg
Diesel engine

58KW Yuchai



Product advantages



Easy and flexible full hydraulic control

The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes



Top-drive slewing propulsion lift

It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.



Multifunctional drilling

Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.



High efficiency

Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.



low cost

DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.

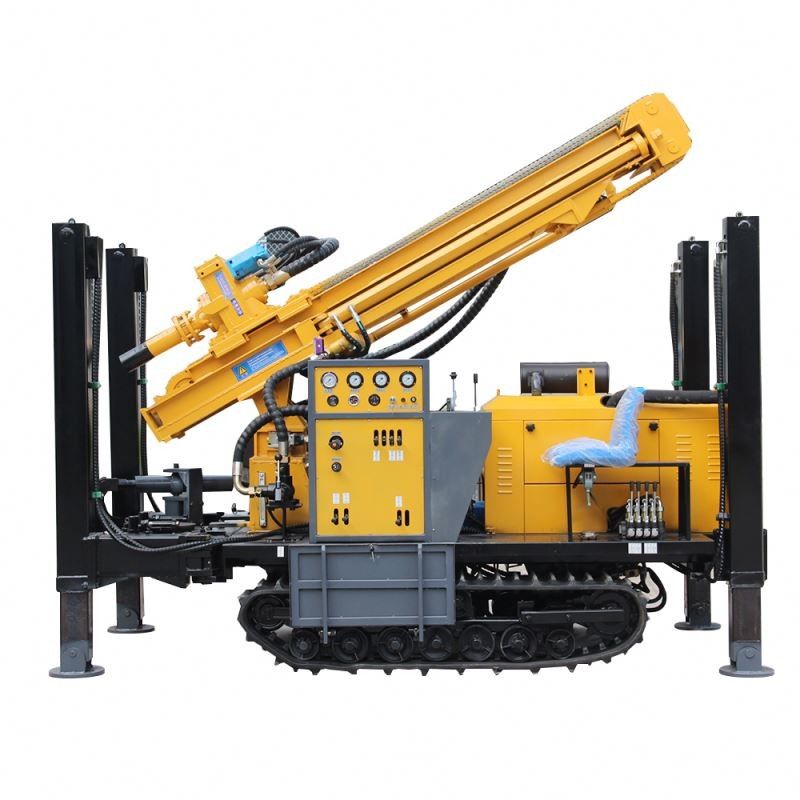

The Machine picture



RCF200C 200 Meter Crawler Mounted Water Drilling Rig Machine Hydraulic Deep Water Well Drill Rigs 0RCF200C 200 Meter Crawler Mounted Water Drilling Rig Machine Hydraulic Deep Water Well Drill Rigs 1

RCF200C 200 Meter Crawler Mounted Water Drilling Rig Machine Hydraulic Deep Water Well Drill Rigs 2

RCF200C 200 Meter Crawler Mounted Water Drilling Rig Machine Hydraulic Deep Water Well Drill Rigs 3
