30m Small Borehole Drilling Machine /Mini crawler mounted solar Pile driver
Machine Introduction
RCKM-30S Small Crawler Pneumatic Pile Driver for solar pile driver or Road Side Fence or mini pile drilling ,it is multi function.it can be solar screw pile drilling ,auger pipe drilling or DTH drilling .
This machine with 30HP diesel engine, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
Technical Parameters
| Model |
RCKM-30S rubber crawler mounted mini pile driver |
| Rig weight |
1.2t |
| Dimensions (L×W×H) |
2300*1300*2200mm |
| Engine power |
25HP |
| Rotary head torque |
3500N.m |
| Hydraulic oil pump |
Single pump |
| Hydraulic loading system |
Cylinder chain pressure |
| Hydraulic working pressure |
20Mpa |
| Way of walking |
Crawler gearbox walking |
| Walking speed |
7-15km/h |
| Cooling system |
Hydraulic cooler |
| Carriage travel distance |
2.8m |
| Piling height |
1-3m |
| Borehole diameter |
50-300mm |
| Borehole depth |
1-30m |
| Air consumption |
6m3/min |
| Adapt to rock types |
Medium hard rock ,F=8-12 |
| Climbing ability |
35° |
| Hydraulic legs |
4 |
Machine Advantages
Powerful function
Drilling depth up to 30m, drilling diameter 50-300mm.
Accurate drilling positioning
The drilling angle is adjustable from 45° to 90°, easy to operate, and the drilling efficiency is fast.
New hydraulic technology
Advanced hydraulic system, excellent hydraulic components, long service life of hydraulic system.
Hydraulic power head
High torque hydraulic power head ,fast drilling speed ,with the impactor can be drilled rock
Brand engine
Adopting branded single-cylinder diesel engine ,strong power ,reliable performance ,stable operation for a long time
Rubber track chassis
Adaptable to all kinds of complex terrain ,no damage to the road surface ,flexible and maneuverable

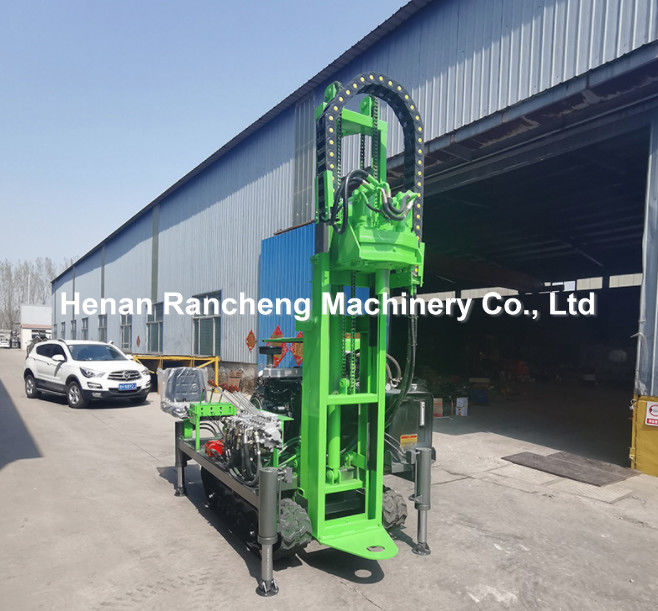

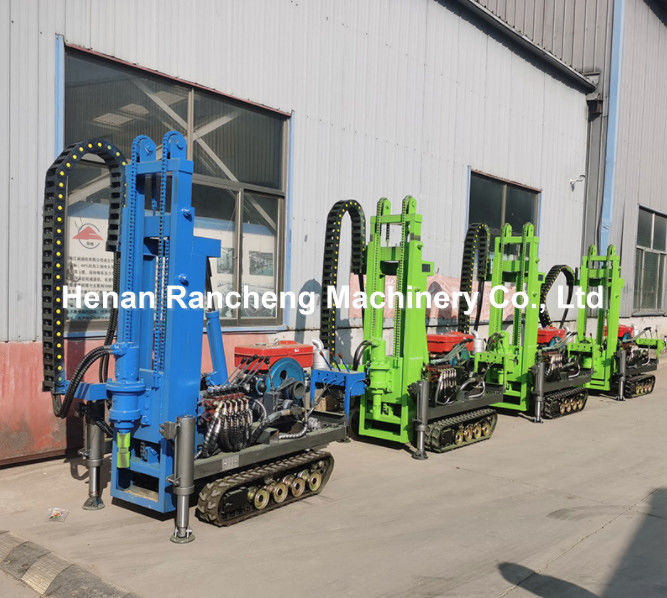

Machine Pictures
