RC260Y Pile Drilling Machine Photovoltaic Crawler Hydraulic Helical Solar Pile Driver
Generally introduction:
RC260Y-2 crawler hydraulic solar pile driver, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on.
the solar pile driver hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment;
Product Specifications
Impact frequency(bpm) | 450-800 |
Impact(j) | 1000 |
Skid pitch(º) | 120 |
Boom swing angle(º) | left and right total 50 |
Swinging angle of the skid(º) | left and right total 40 |
Climb ability(º) | 35 |
Dimension(L*W*H)(mm) | 6410*1970*2830 |
Weight(kg) | 5800 |
Walk speed(km/h) | 0--2.5 |
For rotary drilling | |
Bore diameter(DTH hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure | 0.7-1.6Mpa(medium) |
Bore diameter(screw) | Max 600mm |
Bore depth | 0-30m |
Rotation speed | 0-110r/min |
Torque | 7000N.m |
Product Features
1,Engine: 88KW turbocharged engine ,Yuchai famous brand,very powerful engine
2,Walking device: equipped with new walking motor and reducer, with long service life;
3,Hydraulic oil pump: PERMCO ,imported from the United States, the parallel gearbox is designed to separate the oil pump, providing sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance and low cost;
4,Power head device of this PV solar pile driver:America Eaton ,imported brand ,The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less maintenance cost;
5,hydraulic system of this solar piling rig :Italy Hydrocontrol hydraulic valve and hydraulic system ,stable performance ,less maintenance and comfortable operation
6,Drilling rig chassis; Professional excavator chassis, classic durable, large weight bearing, wide chain plate width, small damage to hard pavement;
7,this hydraulic solar piling machine has compact structure, and the mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability .
8,this ground screw piling machine has reliable performance, high efficiency, multifunctional applications.
9,The screwing and ramming power heads can be interchanged to adapt to different engineering construction technologies, which is more adaptable and more comprehensive for solar ground mounting , can save more cost for customers

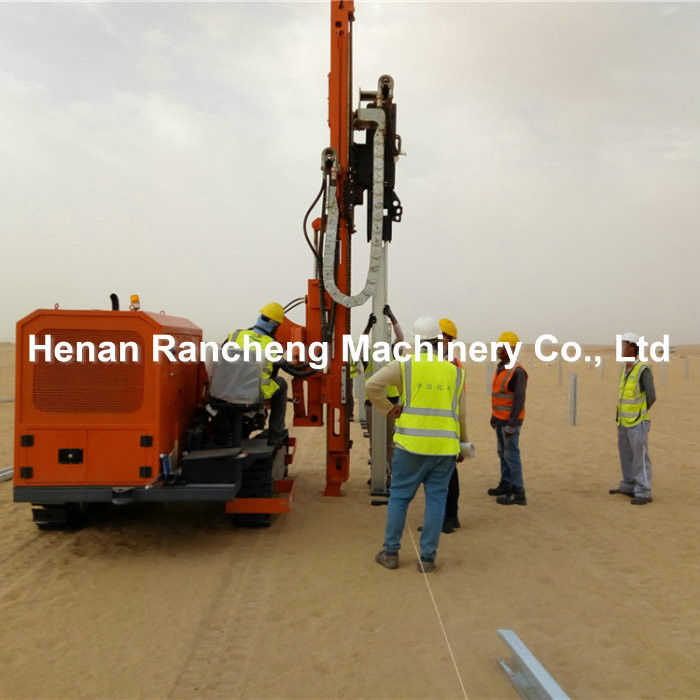

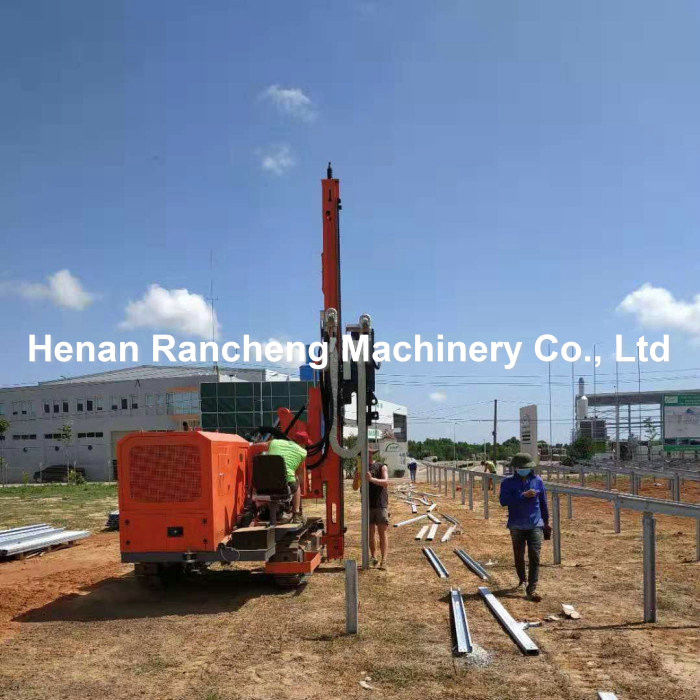

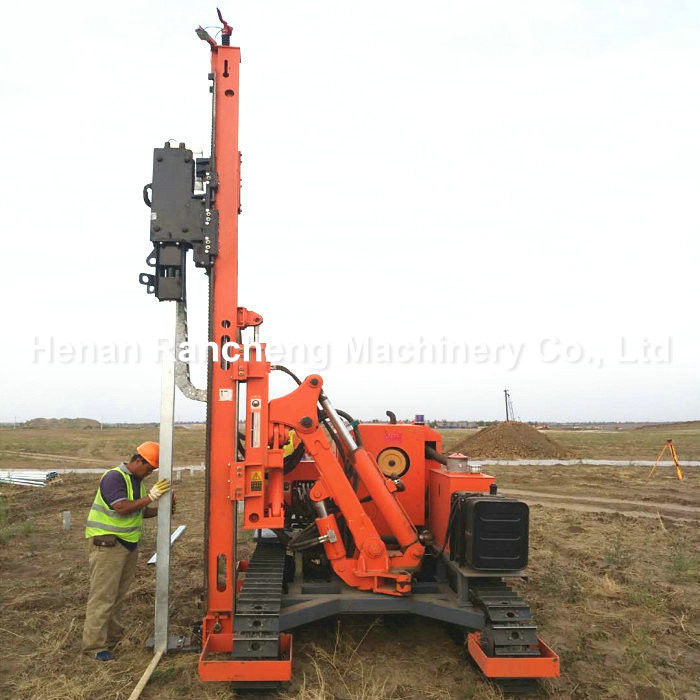

Product Image
