Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter

150m Water Well Drilling Rig Machine

Water Well Drilling Rig Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150S

Contact Us
Request A Quote
Product Details
Color:
Customizable
Drilling Depth:
150m
Drilling Method:
Mud Pump And Air Compressor Drilling
Diesel Engine Power:
42KW Yuchai Engine
Drilling Diameter:
90-300mm
Model:
RCF150S Small Water Boring Machine
Weight:
2.3T
Highlight:

150m Water Well Drilling Rig Machine

,

Water Well Drilling Rig Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

China Factory Price Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter

Products Description



The RCF150S small water boring machine is a reliable and versatile solution for diverse drilling needs. Its lightweight design, at just 2300kg, ensures exceptional portability, making it ideal for a variety of water drilling projects. Whether for farm irrigation wells, yard wells, geothermal wells, or industrial wells, the RCF150S is up to the task.

This adaptable machine can drill up to 150 meters deep and handle diameters ranging from 90 to 300 mm. Its advanced features include dual rotary motor head drives, enhancing drilling efficiency. The RCF150S can also be equipped with mud pumps and air compressors, allowing it to manage various soil types and ensure smooth, effective drilling operations. This combination of portability, depth capacity, and versatility makes the RCF150S an excellent choice for both small and large-scale water drilling projects.


Machine Specifications

Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
weight 2300kg
Diesel engine 42KW Yunnei engine


Machine Advantages


The RCF150S small water boring machine is designed for optimal mobility across challenging terrains with its hydraulic rubber crawler travel system. Featuring high horsepower and impressive torque, this machine delivers energy efficiency and environmental friendliness. Weighing only 2300kg, the RCF150S is highly portable and ideal for various applications, including farm irrigation, yard wells, geothermal wells, and industrial drilling projects.


Machine Pictures

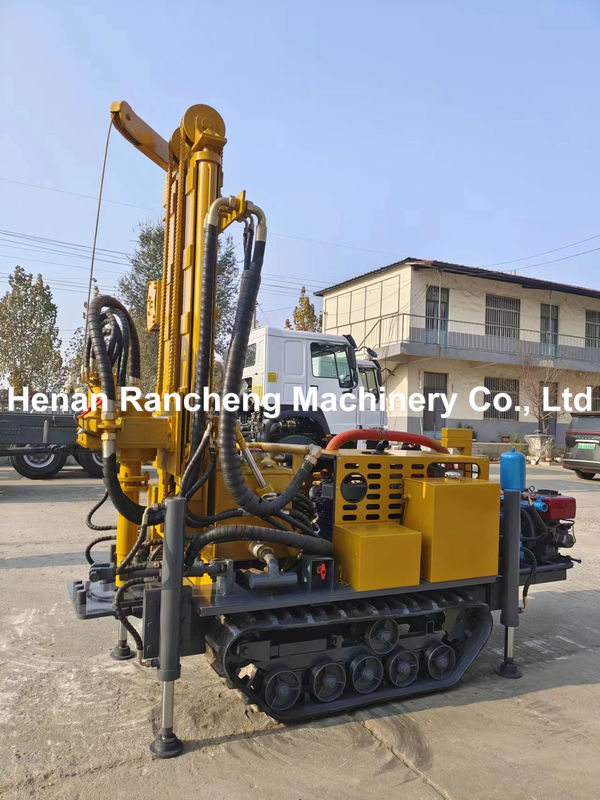

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 0

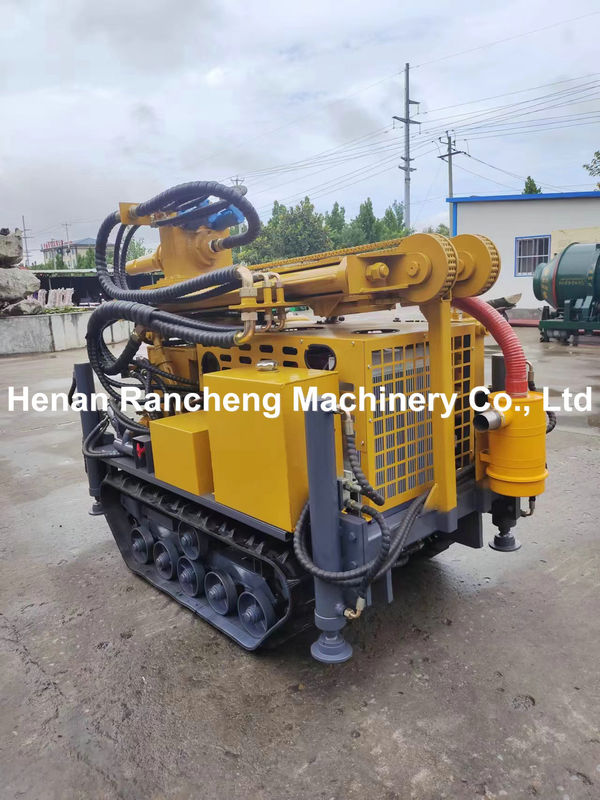

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 1

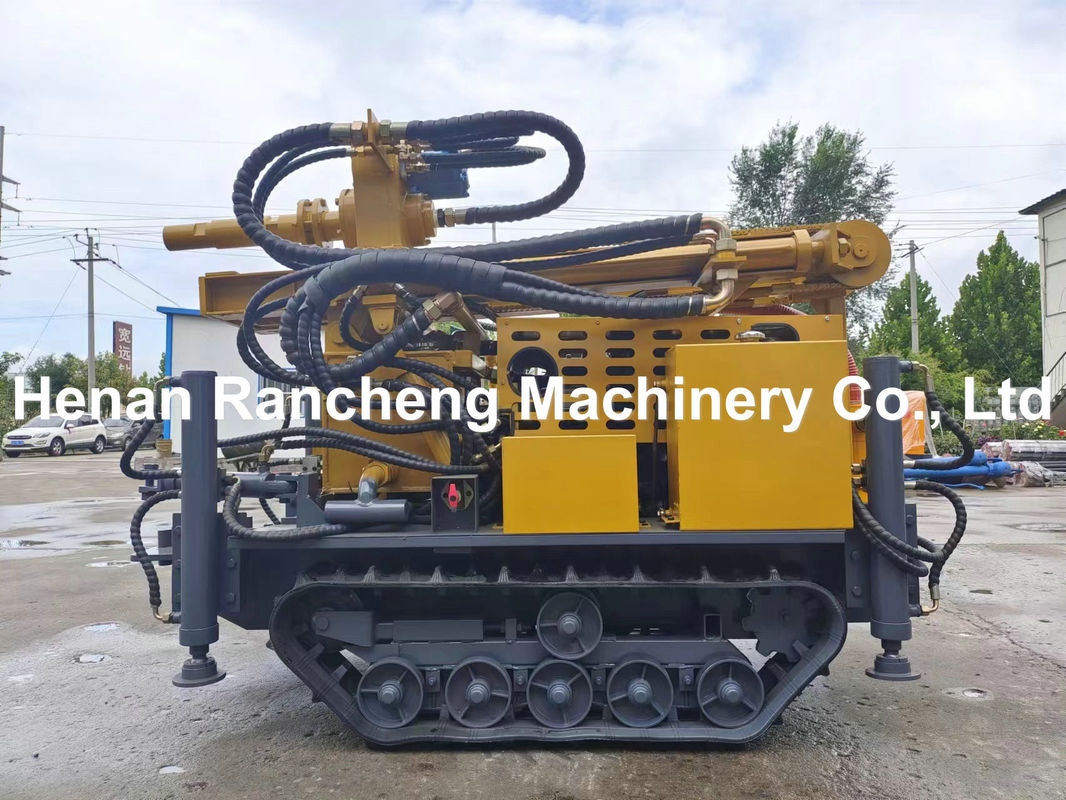

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 2

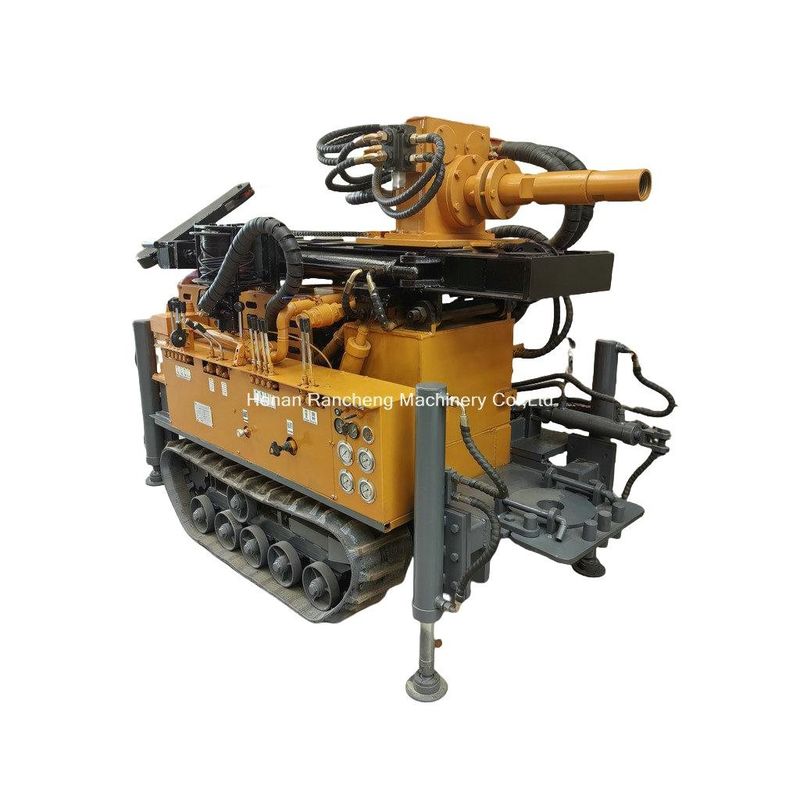

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 3

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 4

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 5
Company Information


Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 6



Transportation



RCF150S can be loaded into a 20-foot container and transported by sea

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 7

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 8

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 9

Depth 150m Mini Crawler Water Well Drilling Rig Machine with 300mm diameter 10
