Hot Selling Depth 200m Crawler Mounted Water Well Drilling Machine 58KW YuChai Diesel Engine
Product Description
This versatile down-the-hole pneumatic water well drilling rig offers both efficiency and adaptability. It features dual motors with top rotation capabilities and is compatible with mud pumps and air compressors. With a maximum drilling depth of 200 meters and a diameter range of 100-300 mm, it’s powered by a robust 58KW diesel engine. This rig can handle various ground conditions, including hard rock, clay, soil, and sand. Mounted on hydraulic rubber crawlers, it’s easy to maneuver, and its four 1.7-meter-high hydraulic outriggers make transportation by truck more convenient.
Application
This water pump is mainly used for drilling wells for irrigation, household drinking water, geothermal wells, hydrological wells, civil water wells, industrial wells, etc.
Technical Parameters
| Model |
RCF200C |
| Bore diameter(Hammer) |
90-350mm |
| Bore depth |
200m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of the rotary |
3500-4800Nm |
| Rotary speed |
45-70r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.4m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4000X1800X2300mm |
| Weight |
5000Kg |
| Diesel engine |
58KW Yuchai
|
Product advantages
It boasts impressive drilling power, swiftly cutting through rocks and soil layers with ease. Built to high manufacturing standards, it offers exceptional durability and longevity. The efficient power system ensures low fuel consumption, while the flexible, compact design makes it highly portable. Advanced safety features and adherence to environmental standards further enhance its appeal. Overall, it is an excellent choice for drilling professionals seeking reliability and performance.

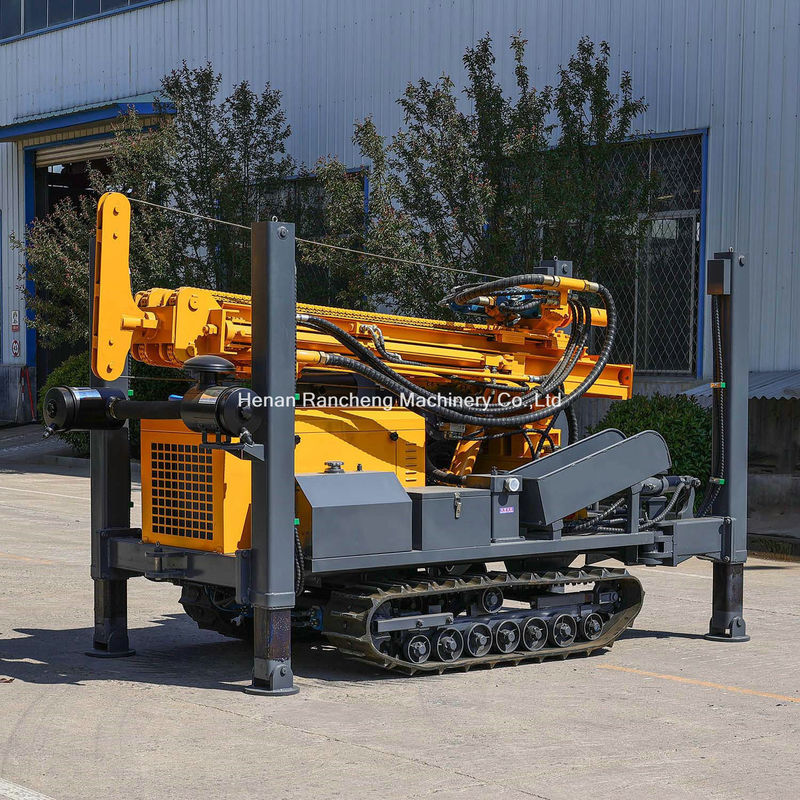

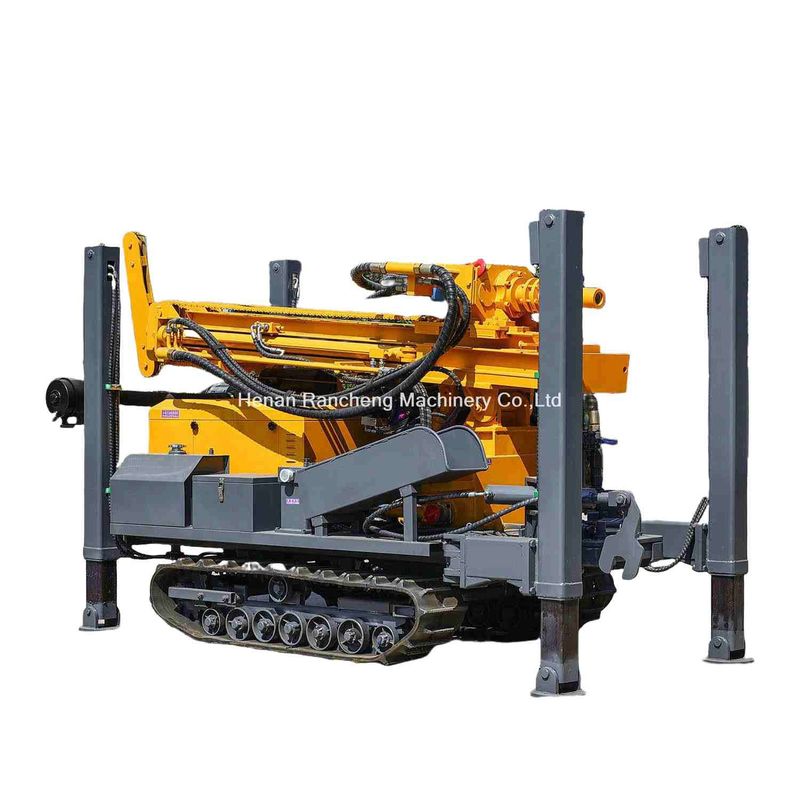

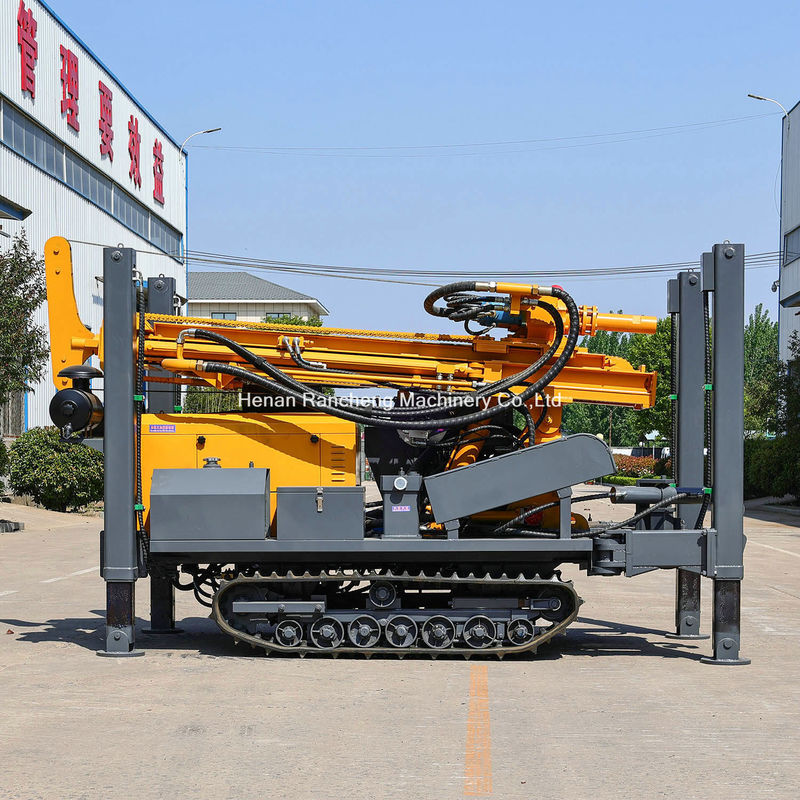

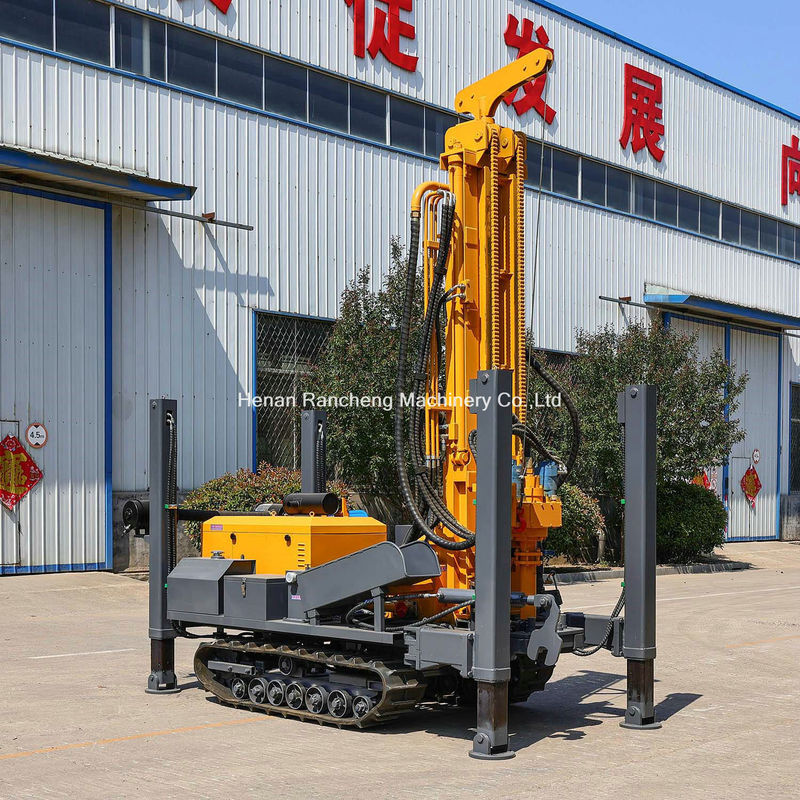

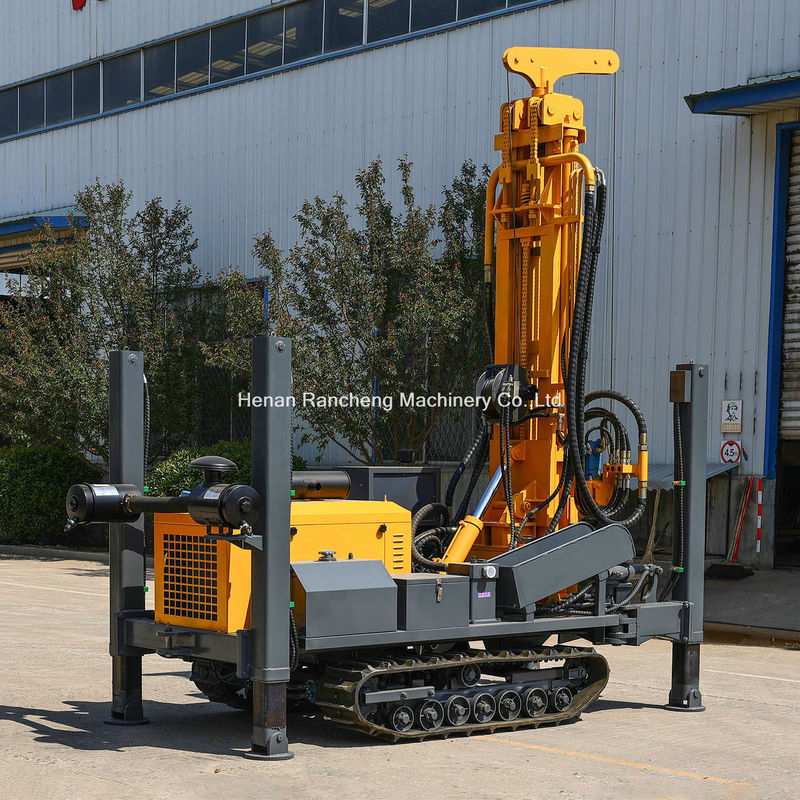

Machine picture display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
