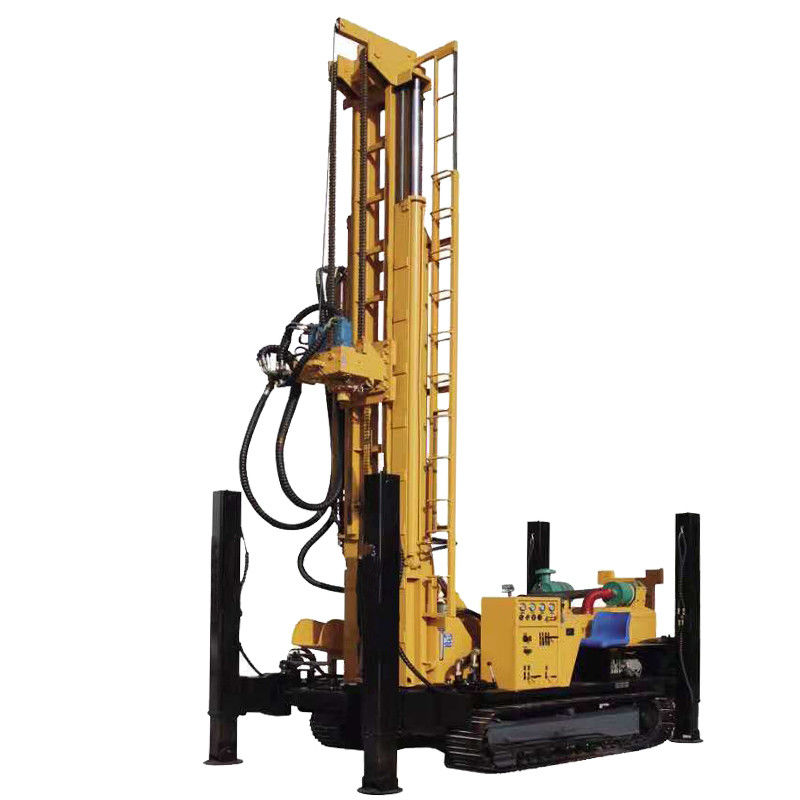

600m Depth 118KW Yuchai Engine Multi Functional Drilling Rig With Easy And Flexible Full Hydraulic Control
Machine Introduction
The RCF600C hydraulic crawler water well drilling machine has powerful functions and diverse application features. Whether it is customized diameter or depth, it shows excellent performance: diameter range from 140 mm to 400 mm, and the maximum drilling depth can reach 600 meters. During operation, it has a wide range of air consumption and working air pressure to meet the needs of a variety of different projects. Flexible drill rod selection and adjustable hydraulic legs further increase its suitability, while strong lifting force and fast feed rates ensure stable operation. At the same time, the body size is moderate and equipped with a reliable 118kw Yuchai engine, which is easy to provide long - lasting power support. The rotation of the drilling method gives it the ability to flexibly adapt to the needs of different projects, whether it is air compressor drilling or mud pump drilling.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
Technical Parameters
| Bore diameter(Hammer) |
140-400mm |
| Bore depth |
600m |
| Air consumption |
17-42m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
102/108/114mm |
| Pipe length |
1m/2m/3m/6m |
| Lifting force |
26T |
| Fast lifting speed |
20m/min |
| Fast feeding speed |
40m/min |
| One-time advance length |
6.6m |
| Max torque of rotary |
7500-10000Nm |
| Rotary speed |
40-130r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
600L/min or 850L/min (option) |
| High hydraulic leg |
1.7m |
| Feeding efficiency |
15-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6200×2200×2650mm |
| Width of loading |
2.85m |
| Weight |
11500Kg |
| Diesel engine |
118KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
Our Service
1.The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes.
2.It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
3.Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
4.Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
5.The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed.During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
Machine Pictures
