30m Depth Small Crawler Pneumatic Pile Driver Auger Pipe Drilling Machine DTH Drilling Rig
Product Description
The small pile driver comes equipped with a 30HP diesel engine, making it powerful and capable of handling a wide range of ground conditions. It boasts a rubber crawler chassis walking system, which allows for it to navigate difficult terrain with ease. This is especially important for solar installations, as they often require installation in remote and challenging locations.
The small pile driver is designed to work with solar piling, which is a professional machine in solar installations.
the small pile driver is compact size design and light weight ,it is easy to transport and move, and it is full hydraulic system, also very easy to operate, with very high drilling efficiency
Product Specifications
| Model |
RCKM-30S |
| Rig weight |
1.2t |
| Dimensions (L×W×H) |
2300*1300*2200mm |
| Engine power |
25HP |
| Rotary head torque |
3500N.m |
| Hydraulic oil pump |
Single pump |
| hydraulic loading system |
Cylinder chain pressure |
| Hydraulic working pressure |
20Mpa |
| Way of walking |
Crawler gearbox walking |
| Walking speed |
7-15km/h |
| cooling system |
Hydraulic cooler |
| Carriage travel distance |
2.8m |
| Piling height |
1-3m |
| Borehole diameter |
50-300mm |
| Borehole depth |
1-30m |
| Air consumption |
6m3/min |
| Adapt to rock types |
Medium hard rock ,F=8-12 |
| Climbing ability |
35° |
| Hydraulic legs |
4 |
Product Features
Powerful function
Drilling depth up to 30m, drilling diameter 50-300mm.
Accurate drilling positioning
The drilling angle is adjustable from 45° to 90°, easy to operate, and the drilling efficiency is fast.
New hydraulic technology
Advanced hydraulic system, excellent hydraulic components, long service life of hydraulic system.
Hydraulic power head
High torque hydraulic power head ,fast drilling speed ,with the impactor can be drilled rock
Brand engine
Adopting branded single-cylinder diesel engine ,strong power ,reliable performance ,stable operation for a long time
Rubber track chassis
Adaptable to all kinds of complex terrain ,no damage to the road surface ,flexible and maneuverable

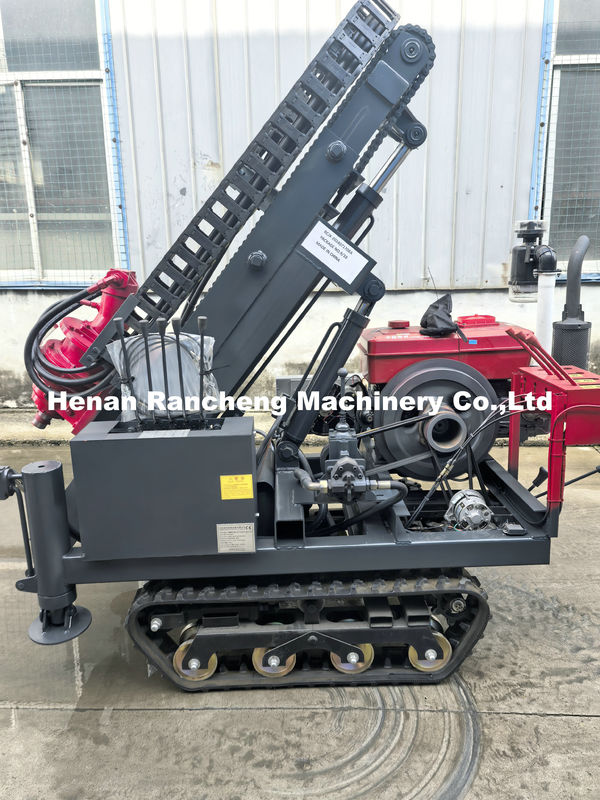

Product Image
