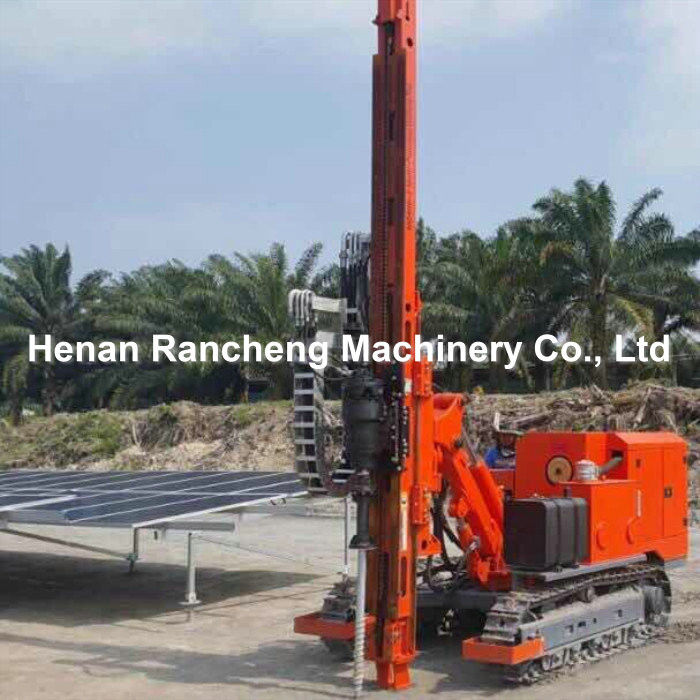

Factory Price Micropile Drilling Rig Small Piling Rig Rotary Hammer Pile Driver
Product Description
This crawler hydraulic solar pile driver adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this solar pile drilling rig is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on.
the solar pile driver hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment;
Product Specifications
| Impact frequency(bpm) |
450-800 |
| Impact(j) |
1000 |
| Skid pitch(º) |
120 |
| Boom swing angle(º) |
left and right total 50 |
| Swinging angle of the skid(º) |
left and right total 40 |
| Climb ability(º) |
35 |
| Dimension(L*W*H)(mm) |
6410*1970*2830 |
| Weight(kg) |
5800 |
| Walk speed(km/h) |
0--2.5 |
| For rotary drilling |
| Bore diameter(DTH hammer) |
90-300mm |
| Bore depth |
20-100m |
| Air consumption |
10-26m³/min |
| Air pressure |
0.7-1.6Mpa(medium)
1.6-2.46Mpa(high)
|
| Bore diameter(screw) |
Max 600mm |
| Bore depth |
0-30m |
| Rotation speed |
0-110r/min |
| Torque |
7000N.m |
Product Features
1,Engine: 88KW turbocharged engine ,Yuchai famous brand,very powerful engine.
2,Walking device: equipped with new walking motor and reducer, with long service life.
3,Hydraulic oil pump: PERMCO ,imported from the United States, the parallel gearbox is designed to separate the oil pump, providing sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance and low cost.
4,Power head device of this PV solar pile driver:America Eaton ,imported brand ,The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less maintenance cost.
Features:
1,High efficiency
This hydraulic solar pile drilling rig is fast working speed, long life of components, low repairing rate, less fuel consumption, reaches superior comprehensive economical benefits
2,easy to move
This machine is steel excavator chassis,it can move by itself
3, This hydraulic piling drilling rig use a 88KW Yuchai engine,very powerful
4.this solar pile drilling rig can use all kinds of PV constructional technologies,such as screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on
Product Image
