High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale

350m Depth Water Well Drilling Machine

91KW Water Well Drilling Machine

Crawler-Mounted Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
Product Details
Model:
RCF350C Crawler Water Well Drilling Machine
Drilling Depth:
350m
Drilling Diameter(mm):
90-350mm
Diesel Engine:
91KW Yuchai Engine
Walking Way:
Crawler Mounted
Travel Speed:
2.5Km/h
Feeding Efficiency:
10-35m/h
Highlight:

350m Depth Water Well Drilling Machine

,

91KW Water Well Drilling Machine

,

Crawler-Mounted Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine for Sale


Product Description


The RCF350C hydraulic crawler water well drilling machine is engineered with advanced technology and high-quality materials, ensuring exceptional performance and reliability. Designed for user-friendliness, it provides outstanding drilling capabilities and stability, making it ideal for diverse geological conditions.

Offering excellent value at a competitive price, the RCF350C has earned widespread acclaim from customers. Its high efficiency and reliability have made it a top seller in both European and American markets. The machine accommodates a wide range of drilling diameters, catering to various project needs. Its top rotary drive is compatible with both mud pumps and air compressors, enhancing the versatility and efficiency of drilling operations.



Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation


After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

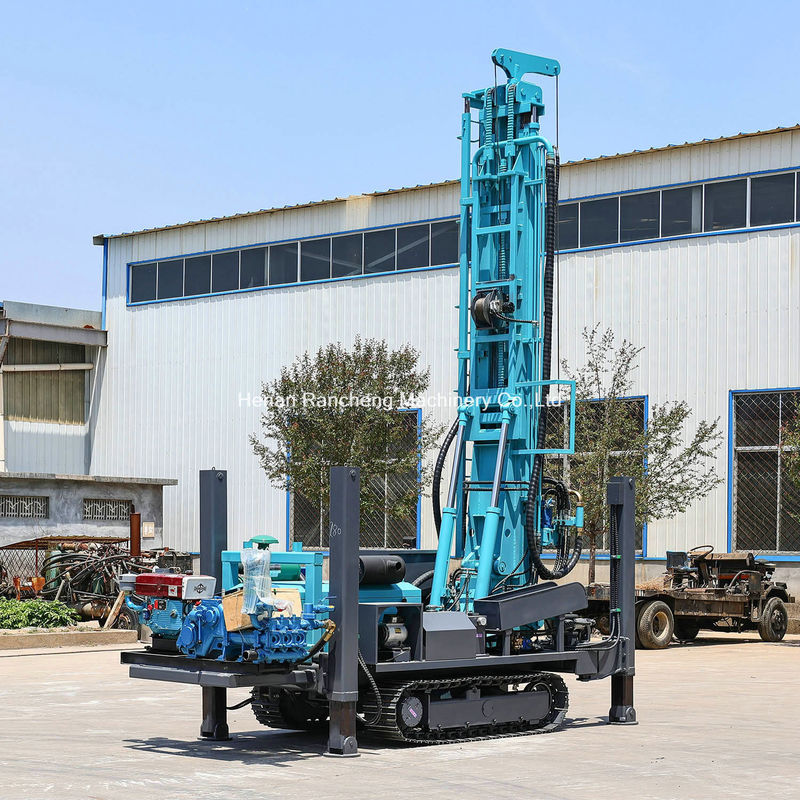

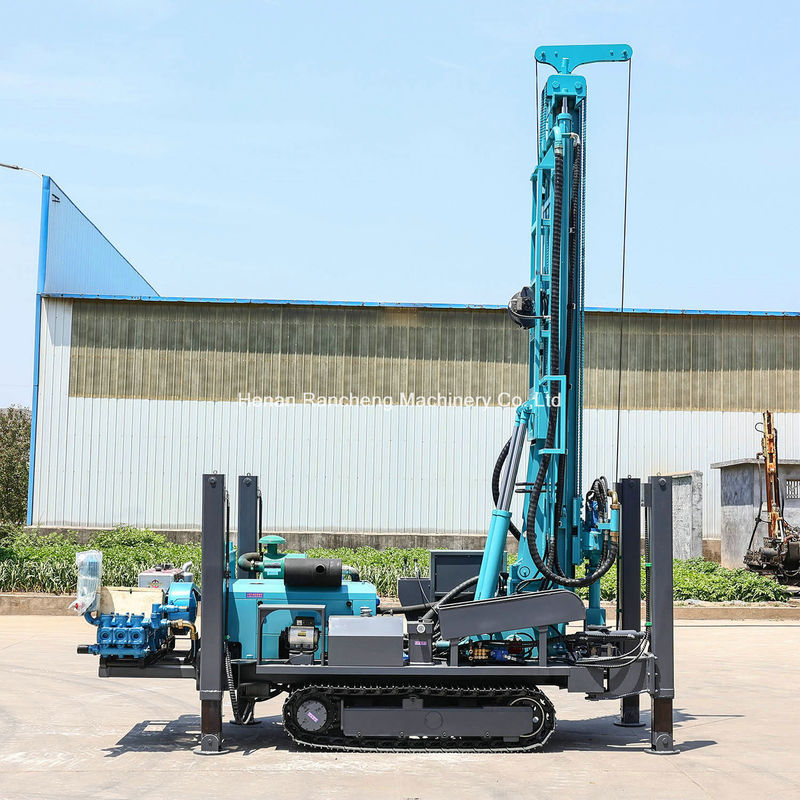

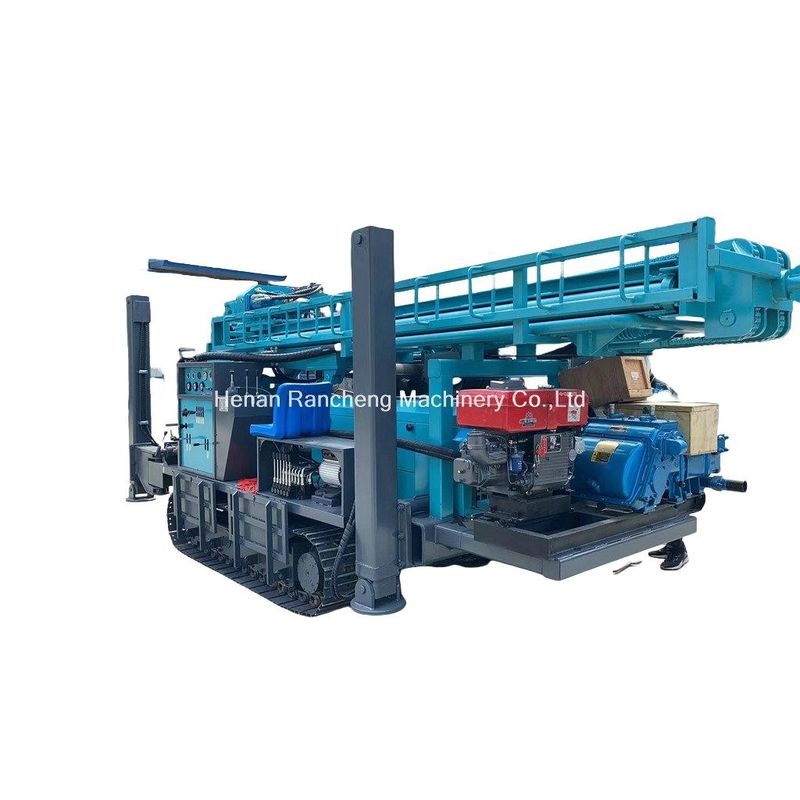

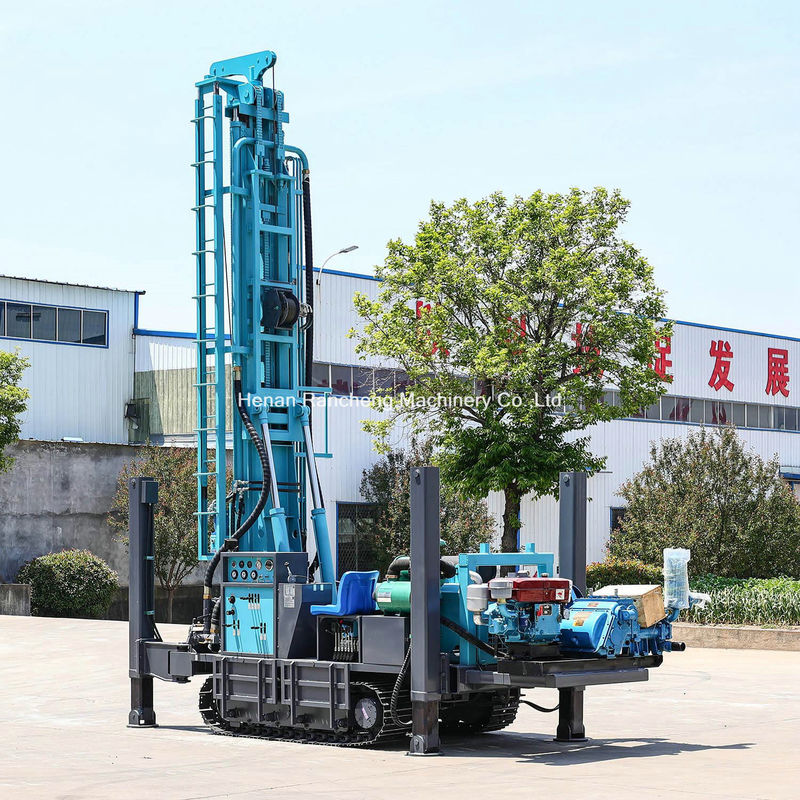

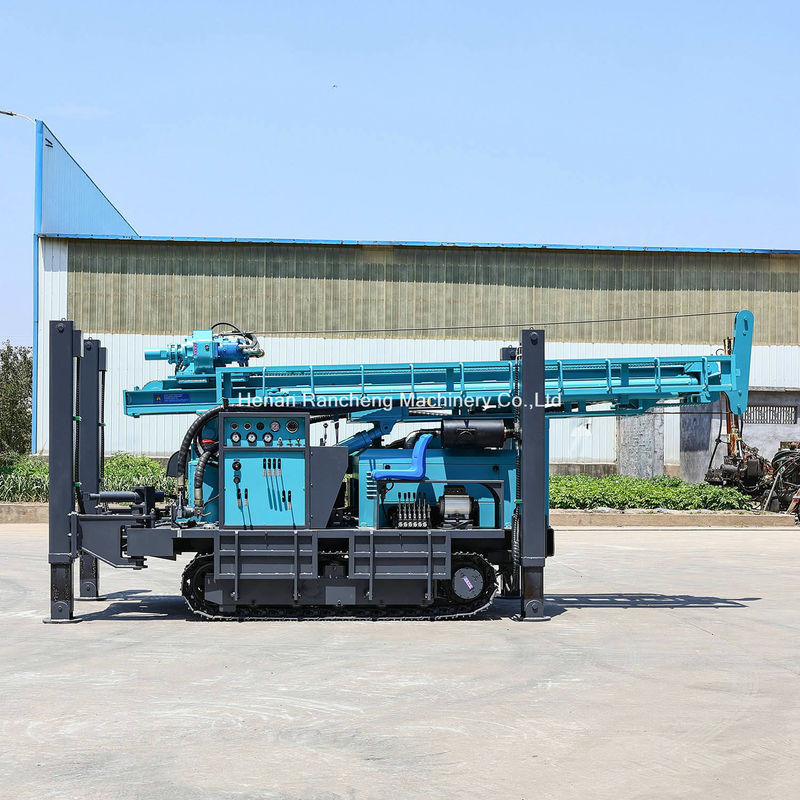

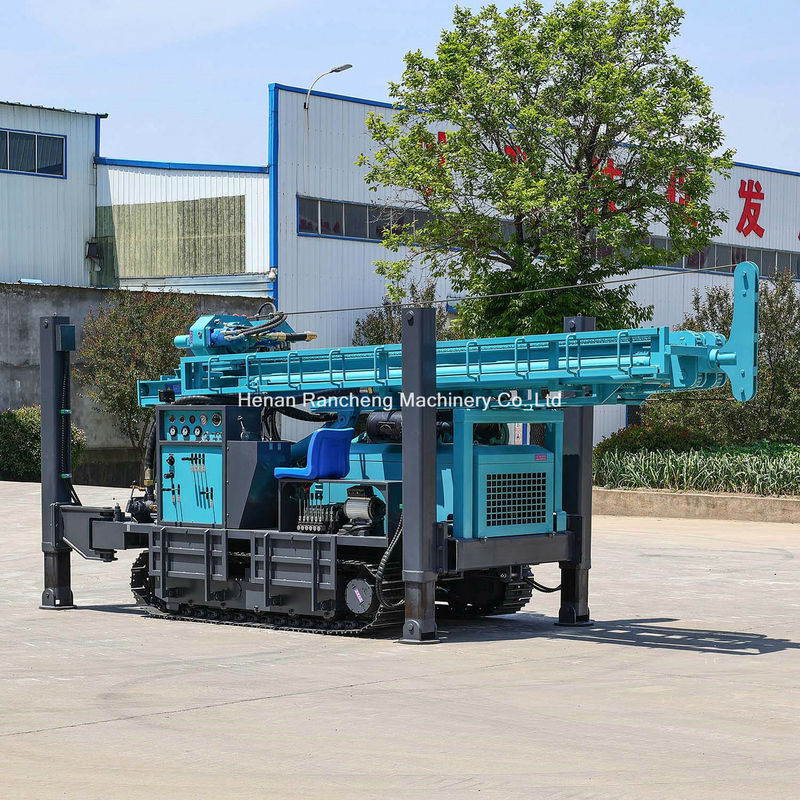

Machine picture display
 High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 0

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 1

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 2

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 3

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 4

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 5

High-Performance Crawler-Mounted Water Well Drilling Machine 350m Depth 91KW Yuchai Engine For Sale 6





Company Information

Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
