Name: Pile Driver Auger Pipe Drilling Machine DTH Drilling Rig Rckm-30s
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCKM-30S
Availability: InStock

Home > products > Solar Pile Driver >

Pile Driver Auger Pipe Drilling Machine DTH Drilling Rig Rckm-30s

rckm-30s Auger Pipe Drilling Machine

Pile Driver Auger Pipe Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Request A Quote

Product Details

Name:

Solar Pile Drive

Rotary Head Torque:

3500N.m

Way Of Walking:

Crawler Gearbox Walking

Walking Speed:

7-15km/h

Air Consumption:

6m3/min

Rigcooling System Weight:

Hydraulic Cooler

Highlight:

rckm-30s Auger Pipe Drilling Machine

Pile Driver Auger Pipe Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

Pile Driver Auger Pipe Drilling Machine DTH Drilling Rig Rckm-30s

Product Description

The small pile driver comes equipped with a 30HP diesel engine, making it powerful and capable of handling a wide range of ground conditions. It boasts a rubber crawler chassis walking system, which allows for it to navigate difficult terrain with ease. This is especially important for solar installations, as they often require installation in remote and challenging locations.

The small pile driver is designed to work with solar piling, which is a professional machine in solar installations.

the small pile driver is compact size design and light weight ,it is easy to transport and move, and it is full hydraulic system, also very easy to operate, with very high drilling efficiency

Product Specifications

Model	RCKM-30S
Rig weight	1.2t
Dimensions (L×W×H)	230013002200mm
Engine power	25HP
Rotary head torque	3500N.m
Hydraulic oil pump	Single pump
hydraulic loading system	Cylinder chain pressure
Hydraulic working pressure	20Mpa
Way of walking	Crawler gearbox walking
Walking speed	7-15km/h
cooling system	Hydraulic cooler
Carriage travel distance	2.8m
Piling height	1-3m
Borehole diameter	50-300mm
Borehole depth	1-30m
Air consumption	6m3/min
Adapt to rock types	Medium hard rock ,F=8-12
Climbing ability	35°
Hydraulic legs	4

Product Features

1.Drilling Capacity: RCKM-32S micropile drilling machine can drill up to 30 meters deep, with a drilling diameter range of 50-300 mm, and can achieve precise drilling positioning.

2.The drilling angle can be adjusted from 45° to 90°, which is easy to operate and efficient.

3.Hydraulic System: The advanced hydraulic system adopts new hydraulic technology and is equipped with high-quality hydraulic components to ensure the long service life of the system.

4.The hydraulic power head provides high torque, which can achieve fast drilling speed and can drill through rocks with an impactor.

5.The chassis of the rubber spiral pile driver adapts to various complex terrains, does not damage the road surface, and maintains flexibility and maneuverability.

Product Image

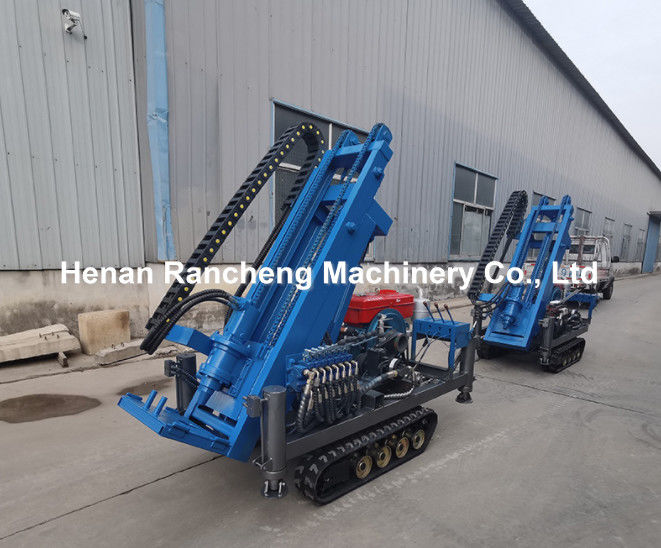

Pile Driver Auger Pipe Drilling Machine DTH Drilling Rig Rckm-30s 0
