Factory Price Micropile Drilling Rig Small Piling Rig Rotary Hammer Pile Driver
Product Description
This solar piling rig is widely used for solar ground construction ,solar power station ,anchoring, water wells, mini piling ,water conservancy, power plant open mining, road building and other blasting hole constructions .
Product Specifications
| Impact frequency(bpm) |
450-800 |
| Impact(j) |
1000 |
| Skid pitch(º) |
120 |
| Boom swing angle(º) |
left and right total 50 |
| Swinging angle of the skid(º) |
left and right total 40 |
| Climb ability(º) |
35 |
| Dimension(L*W*H)(mm) |
6410*1970*2830 |
| Weight(kg) |
5800 |
| Walk speed(km/h) |
0--2.5 |
| For rotary drilling |
| Bore diameter(DTH hammer) |
90-300mm |
| Bore depth |
20-100m |
| Air consumption |
10-26m³/min |
| Air pressure |
0.7-1.6Mpa(medium)
1.6-2.46Mpa(high)
|
| Bore diameter(screw) |
Max 600mm |
| Bore depth |
0-30m |
| Rotation speed |
0-110r/min |
| Torque |
7000N.m |
Product Features
1,hydraulic system of this solar piling rig :famous brand hydraulic valve and hydraulic system ,stable performance ,less maintenance and comfortable operation
2,Drilling rig chassis; Professional excavator chassis, classic durable, large weight bearing, wide chain plate width, small damage to hard pavement;
3,this hydraulic solar piling machine has compact structure, and the mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability .
4,this ground screw piling machine has reliable performance, high efficiency, multifunctional applications.
5,The screwing and ramming power heads can be interchanged to adapt to different engineering construction technologies, which is more adaptable and more comprehensive for solar ground mounting , can save more cost for customers
Features:
1,High efficiency
This hydraulic solar pile drilling rig is fast working speed, long life of components, low repairing rate, less fuel consumption, reaches superior comprehensive economical benefits
2,easy to move
This machine is steel excavator chassis,it can move by itself
3, This hydraulic piling drilling rig use a 88KW Yuchai engine,very powerful
4.this solar pile drilling rig can use all kinds of PV constructional technologies,such as screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on

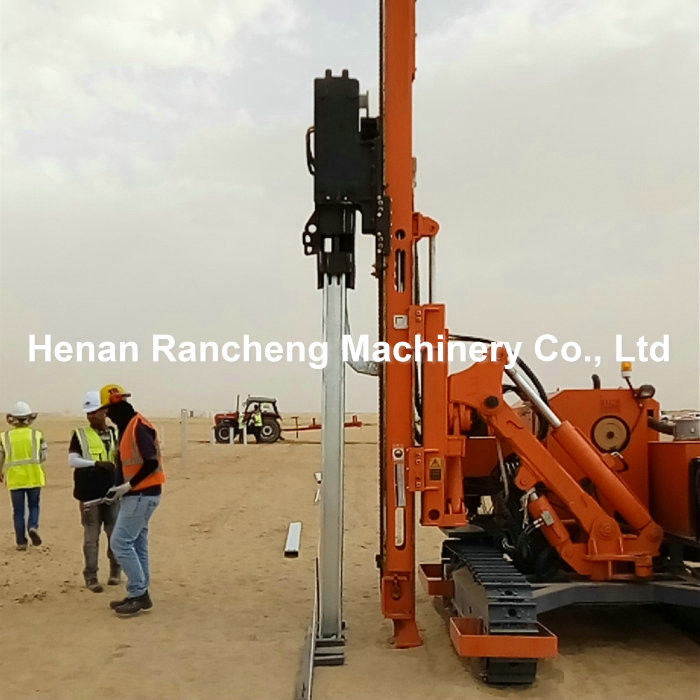

Product Image
