High Efficiency 25HP Diesel Pile Driver Drilling 30m Depth with 50-300mm Diameter
Product Description
The RCKM-30S is a versatile and compact crawler-mounted pneumatic pile driver designed for a wide range of applications. Whether you’re working on solar pile installations, roadside fencing, or mini pile drilling, this machine stands out with its multifunctionality. It excels in solar screw pile drilling, auger pipe drilling, and DTH drilling.
Powered by a 30HP diesel engine and featuring a hydraulic mechanical transmission, the RCKM-30S delivers high efficiency, smooth shifting, and precise multi-angle piling. Its durability, time-saving capabilities, and labor-saving design make it an excellent choice for field engineering tasks.
This small yet powerful hydraulic earth screw pile driver is particularly well-suited for solar power projects. It comes equipped with a crawler travel system and advanced hydraulic travel motor technology, ensuring superb maneuverability and adaptability in challenging environments such as swamps, quagmires, and uneven terrains. The reliable engine guarantees stable operation over extended periods. Additionally, the robust drill frame, constructed from thickened steel plates and reinforced with secondary welding, effectively reduces vibration and tilting during operation, enhancing overall safety.
The RCKM-30S is adaptable to various projects, including high-speed railway support piles, slope protection piles, solar photovoltaic foundations, power grid upgrades, civil and municipal construction, new rural developments, and landscaping. It performs efficiently across different geological conditions, including soil layers, clay, fill layers, silt, sand, and some gravelly strata.
Product Specifications
| Model |
RCKM-30S |
| Rig weight |
1.2t |
| Dimensions (L×W×H) |
2300*1300*2200mm |
| Engine power |
25HP |
| Rotary head torque |
3500N.m |
| Hydraulic oil pump |
Single pump |
| hydraulic loading system |
Cylinder chain pressure |
| Hydraulic working pressure |
20Mpa |
| Way of walking |
Crawler gearbox walking |
| Walking speed |
7-15km/h |
| cooling system |
Hydraulic cooler |
| Carriage travel distance |
2.8m |
| Piling height |
1-3m |
| Borehole diameter |
50-300mm |
| Borehole depth |
1-30m |
| Air consumption |
6m3/min |
| Adapt to rock types |
Medium hard rock ,F=8-12 |
| Climbing ability |
35° |
| Hydraulic legs |
4 |
Product Features
1. Drilling Depth and Diameter: Capable of drilling up to 30 meters deep with a diameter range of 50-300 mm.
2. Adjustable Drilling Angle: Features an adjustable drilling angle from 45° to 90°, allowing for easy operation and efficient drilling.
3. Advanced Hydraulic System: Equipped with a state-of-the-art hydraulic system and high-quality components, ensuring durability and a long service life.
4. High Torque Hydraulic Power Head: Provides rapid drilling speeds and can handle rock drilling with the included impactor.
5. Branded Single-Cylinder Diesel Engine: Powered by a reliable single-cylinder diesel engine, delivering strong performance and stable, long-term operation.
6. Versatile Terrain Adaptability: Designed to navigate various complex terrains without damaging the road surface, offering excellent flexibility and maneuverability.

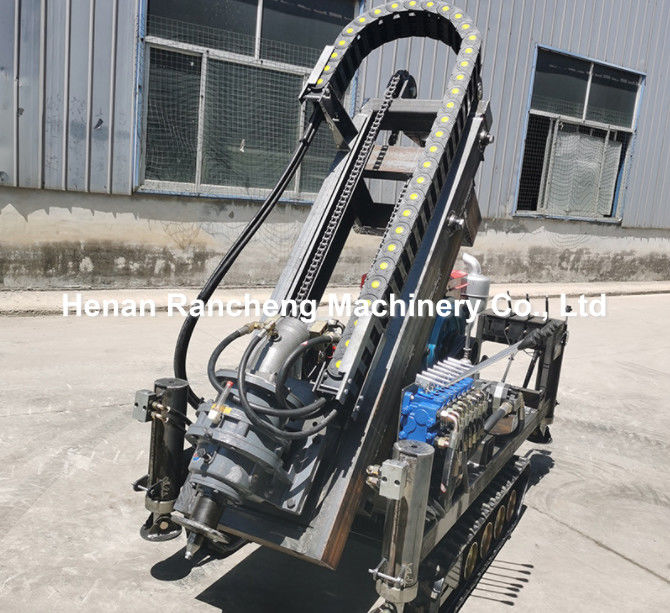

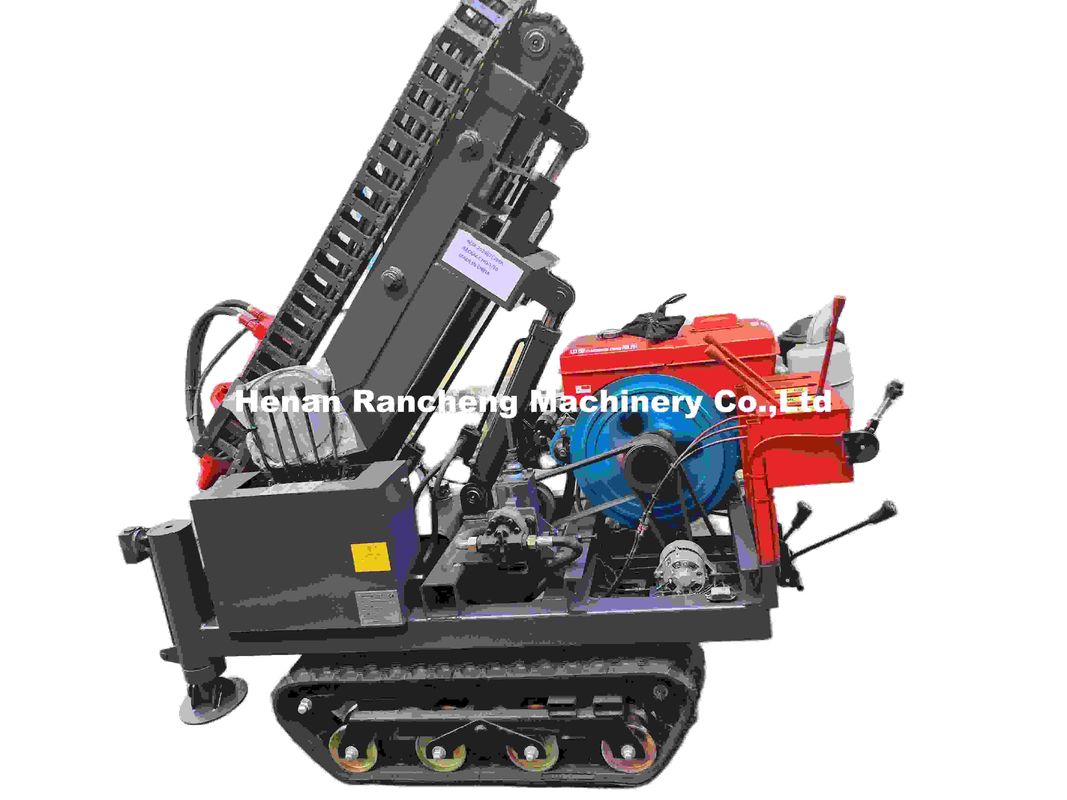

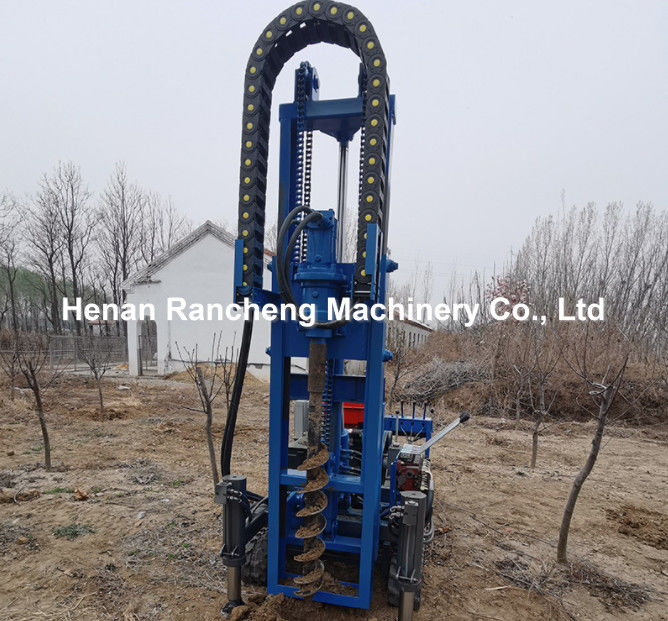

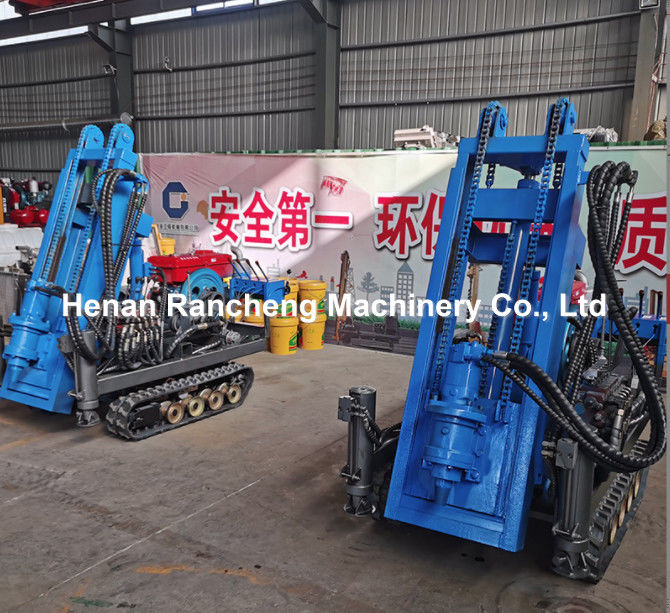

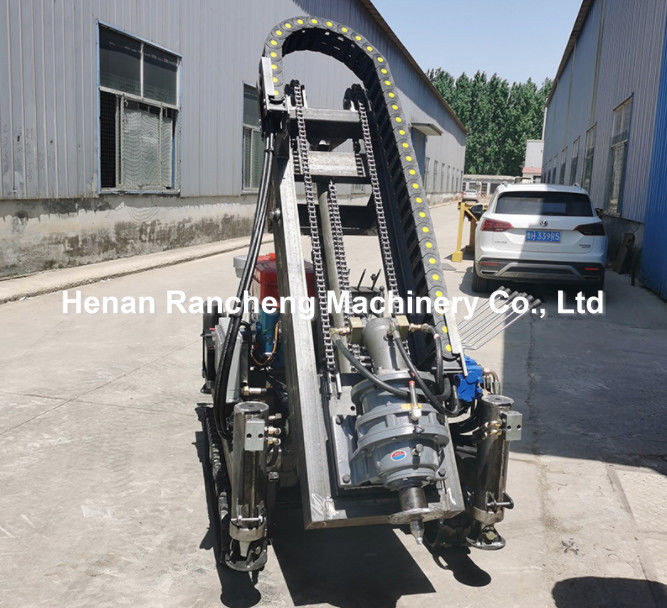

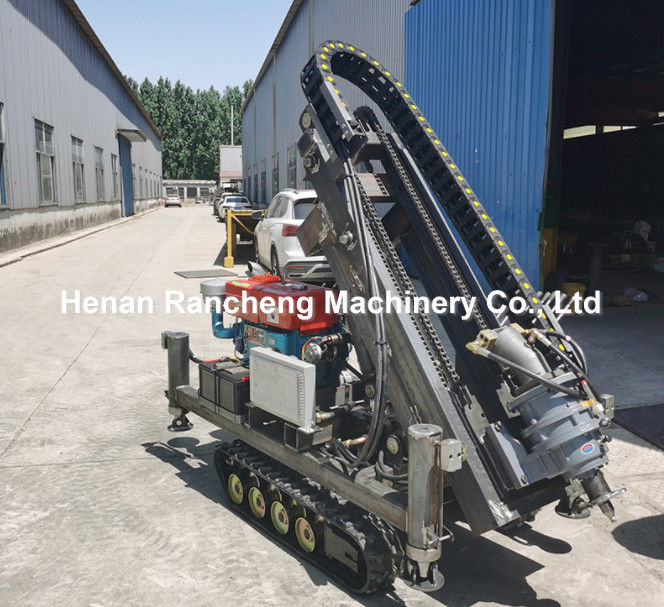

Product Image
