114HP Drilling Rig Machine/Photovoltaic Pile Driver/Machine/Equipment for Solar Pile Installation
RC195Y crawler hydraulic solar pile driver adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on.
the pile driver hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment;
Product Specifications
| Bore diameter(DTH hammer)(mm) | 90-300 |
| Bore depth(m) | 20-100 |
| Air consumption(m³/min) | 10-26 |
| Air pressure(Mpa) | 0.7-1.6(medium) |
| 1.6-2.46(high) |
| Pile diameter(mm) | 76/89 |
| For rock(F) | 6-20 |
| Bore diameter(screw)(mm) | Max 400 |
| Bore depth(m) | 0-30m |
| Screw pile diameter(mm) | 130-400 |
| Once promotion(mm) | 2000 |
| Skid pitch(º) | 100 |
| swinging angle of the skid(º) | left and right total 40 |
| boom swing angle(º) | left and right total 50 |
| Rotation speed(r/min) | 0-110 |
| Climb ability(º) | 45 |
| Dimension(L*W*H)(mm) | 5330*2110*2850 |
| Weight(kg) | 7300 |
| Walk speed(km/h) | 0-2.5 |
Product Features
1, Engine: 84KW turbocharged engine, Yuchai famous brand, very powerful engine
2, Walking device: equipped with new walking motor and reducer, with long service life;
3, Hydraulic oil pump: PIMCO, imported from the United States, the parallel gearbox is designed to separate the oil pump, providing sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance, and low cost;
4, Powerhead device: America Eaton, imported brand, The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less maintenance cost;
5, Hydraulic system of this solar drilling rig: Italy Hydrocontrol hydraulic valve and hydraulic system, stable performance, less maintenance, and comfortable operation

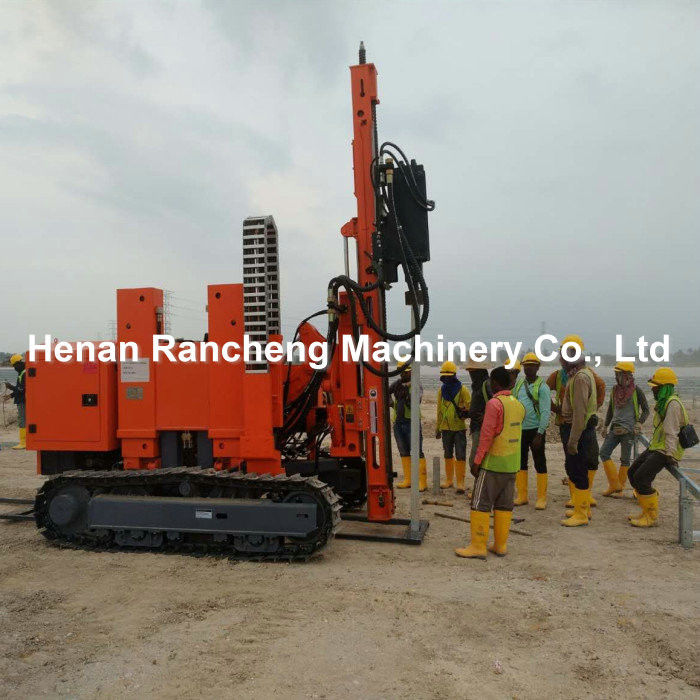

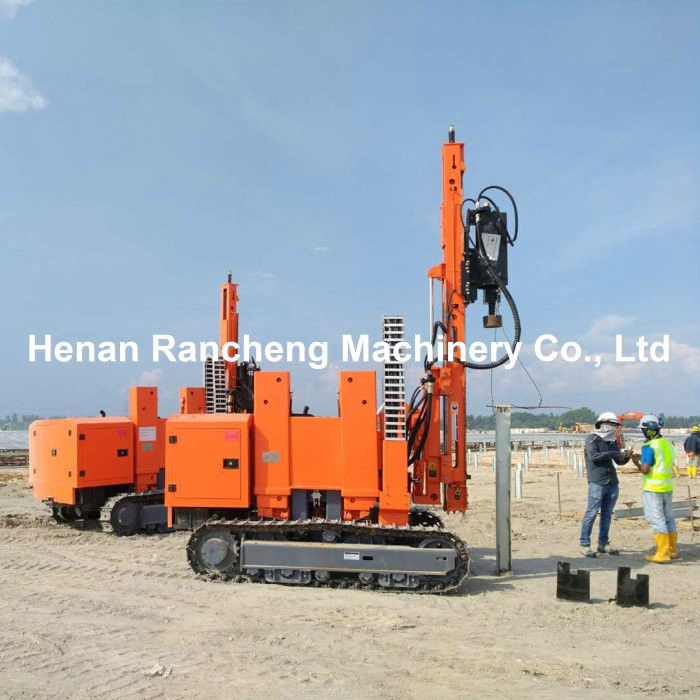

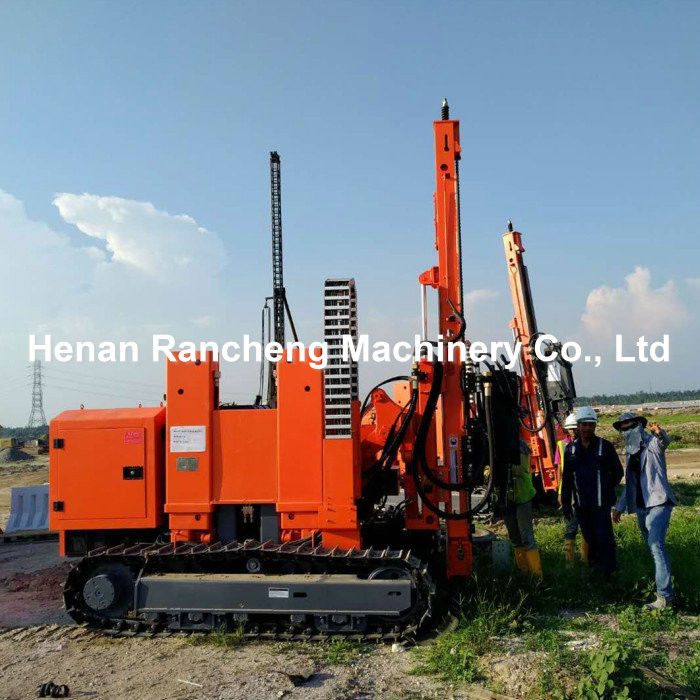

Product Image
