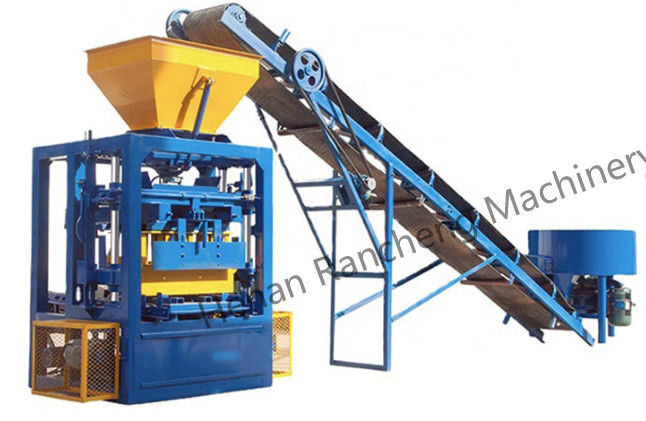

Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine

Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine

Block Making Machine RC4-24

Semi Automatic Block Making Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC4-24

Contact Us
Request A Quote
Product Details
Vibration Force:
33.5KN
Power:
13.45kw
Molding Cycle:
20-24s
Weight:
1.56t
Host Machine Size:
1850*1880*2240mm
Pallet Size:
850*550*20mm
Highlight:

Block Making Machine RC4-24

,

Semi Automatic Block Making Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine



Product Description:



RC4-24 brick making machine is a semi-automatic block machine, an upgraded version of our original medium and small-scale block machines. This machine adopts an electric motor that controls the movement of the upper mold and the baiting valve, reducing labor costs and enhancing production efficiency.



The RC4-24 brick making machine combines electric-driven and mechanical controls to coordinate various machine movements, ensuring accurate operation and minimizing the risk of faults. This user-friendly design makes the machine easy to operate. Additionally, it employs both upper and lower vibrations, enabling quick molding while achieving high-density and strong block integrity.



Features:



  1. RC4-24 brick making machine adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
  2. It uses Mode 350 speed reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.
  3. It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.

​Main Characteristics:



Block mould:

The brick moulds are made of 16# manganese steel. Besides the good raw material, precise line cutting technology and 900℃ carburizing heat treatment technology are all adopted in the process of the brick mould production. So the brick moulds have better performance and longer service time.
■ The mould can be customized according to your need.



Vibration System.
1.Adopt vibration moulding technology and equipped with three vibrators to assure better quality, larger density and higherstrength of the blocks.
2.Low power can achieve super super moulding effect.



PLC Control System.
Advanced PLC control system and clearly screen display make the operation more convenient. Electrical components are made in famous factories, which can make a long time service.



Applications:



RC4-24 brick making machine can produce various hollow bricks, solid bricks and pavers by changing the moulds. The following bricks are some common brick types. At the same time, we can customize the brick moulds for you according to your specific requirements.



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 0



Product Image



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 1



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 2



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 3



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 4



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 5



Block Making Machine RC4-24 Semi Automatic Concrete Hollow Brick Making Machine 6
