Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects

Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects

DTH Projects Micro Pile Rig

RC130Y Micro Pile Rig

400mm RC130Y Micro Pile Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC130Y

Contact Us
Request A Quote
Product Details
Model:
RC130Y Micro Pile Rig
Power:
56KW Diesel Engine
Bore Diameter(hammer):
90-310mm
Bore Depth:
0-30m
Bore Diameter(screw):
Max 400mm
Highlight:

DTH Projects Micro Pile Rig

,

RC130Y Micro Pile Rig

,

400mm RC130Y Micro Pile Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Max Bore diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution for Water Wells Auger Piles DTH Projects

Machine introduction

The RC130Y hydraulic down-the-hole (DTH) drilling rig offers outstanding performance with low energy consumption and high efficiency, making it highly convenient for both transportation and on-site construction. It features full hydraulic control and a renowned hydraulic system brand, ensuring smooth operation and stable performance across various working conditions.

The rig’s rotary mechanism incorporates a new dual-motor turret design, which provides strong rotary torque output, enhancing efficiency and construction quality during large hole drilling in open-air blasthole projects. Additionally, the RC130Y excels in mobility and climbing capabilities, making it well-suited for rugged terrain. Its quick and convenient perforation displacement meets the demands of complex engineering environments.

Designed with on-site operational requirements in mind, the RC130Y delivers excellent adaptability and stability. The use of advanced hydraulic control systems ensures ease of operation and reliable performance under diverse conditions. The innovative dual-motor turret design improves rotational torque and operational efficiency, while the rig’s superior mobility and climbing abilities enhance its suitability for various challenging sites. Overall, the RC130Y makes on-site construction more efficient and manageable.

Technical Parameters

Wind pressure(Mpa) 1.2--2.46
Air consumption(m³/min) 10--20
Drilling diameter(mm) 115---150
Drilling depth(m) down 62m
Once promotion distance(mm) 3000
Drill diameter(mm) 76
Skid compensation(mm) 1200
Maximum lift force(N) 26000
Guide shell lutting(°) up and down total 100
Guide shell swing angle(°) Left and right total 100
Boom lift angle(°) up and down total 70
Boom swing angle(°) 70
Grade ability(°) 30
Chassis ground clearance(mm) 300
Travelling speed(Km/h) 0-2.5
Back to the transit speed(r/min) 0--90
Rotary torque(N.m) 3100
Host Power(kW) 56
For rock 6---20
Total Weight(kg) 4800
Dimension (L * W * H) 5270*1950*2400


Advantages


The RC130Y hydraulic DTH drilling rig boasts numerous excellent features, including a hydraulic motor that delivers high torque at low speeds, enhancing both performance and stability. It is equipped with a cylinder propulsion system that improves overall performance and stability, and a two-stage air filter that ensures air quality while extending the diesel engine's lifespan. The rig also features a multi-valve control system for straightforward operation and automatic monitoring of hydraulic and propulsion pressures.

Additionally, the RC130Y includes a crawler tensioning device for reliable operation and a spotlight for convenient night-time operations and maintenance. Its compact structure ensures safe and efficient operation across various rugged terrains. The rig is designed to handle drilling diameters of 105-165mm, offering high operating efficiency, easy maintenance, and reliable performance.


Pictures

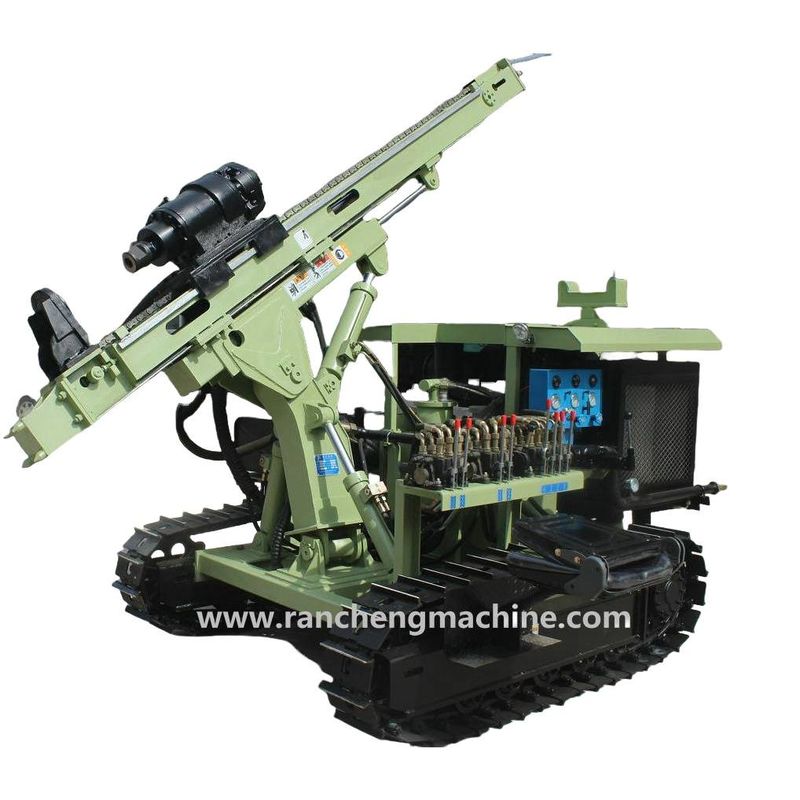

 Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects 0

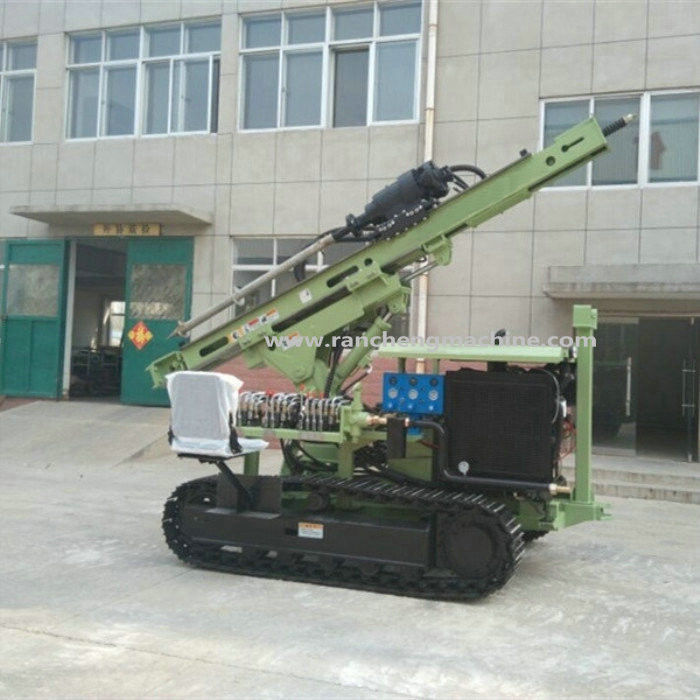

Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects 1

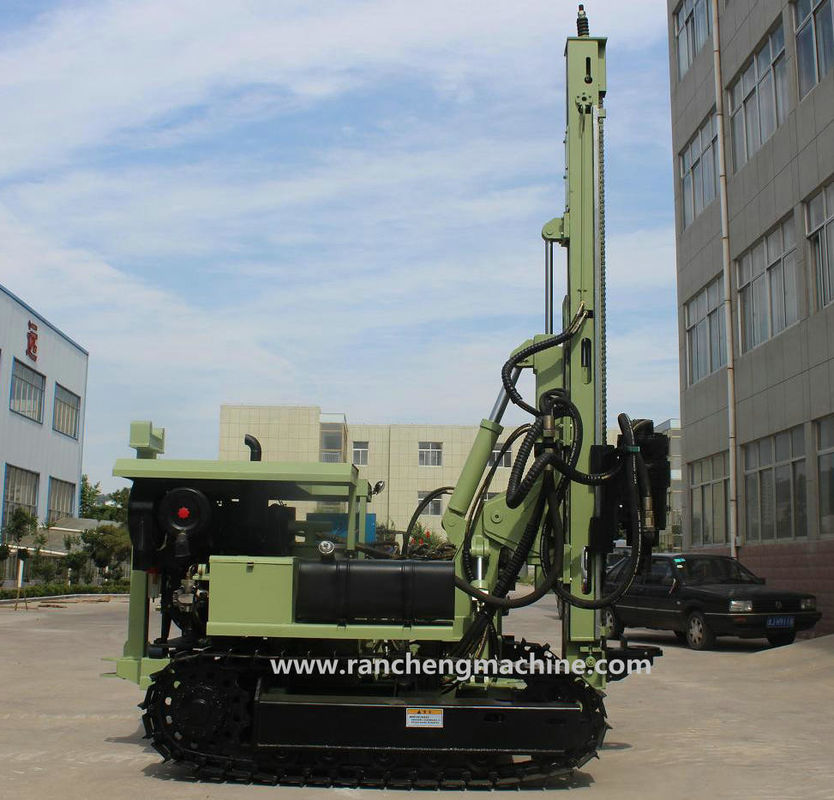

Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects 2

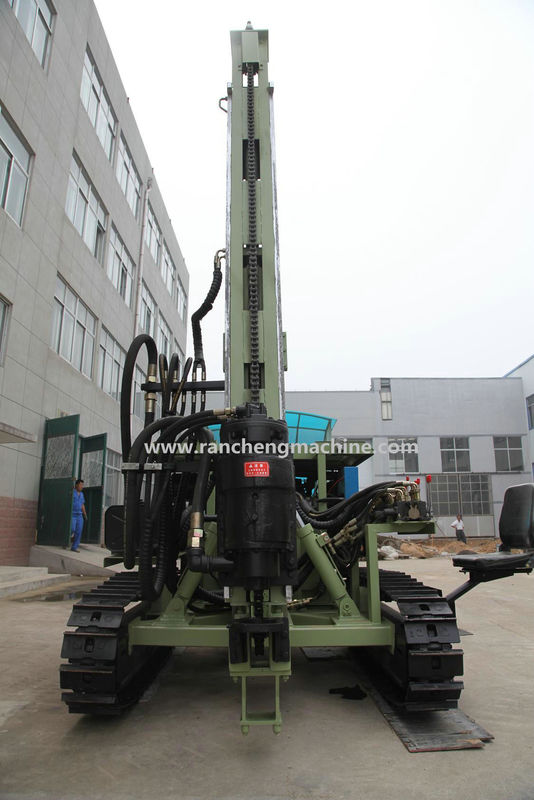

Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects 3

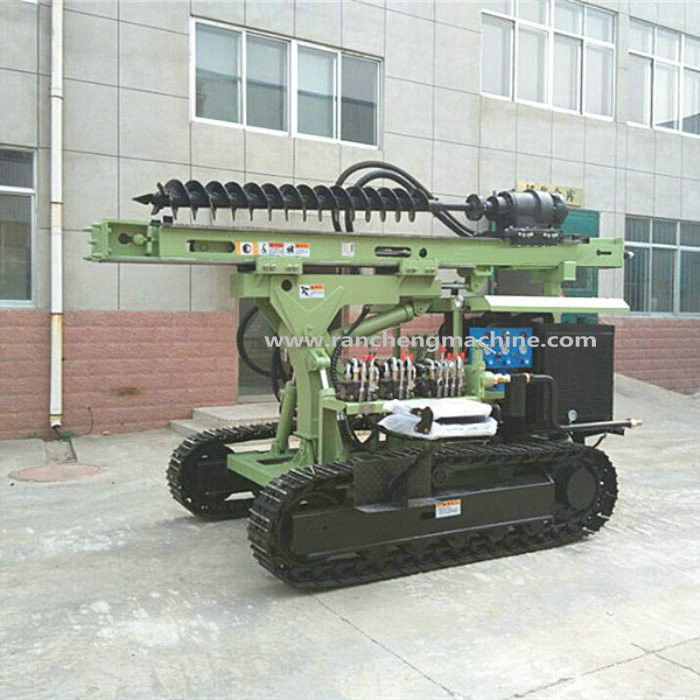

Max Bore Diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution For Water Wells Auger Piles DTH Projects 4
