Blasting Borehole Portable Equipment Air Anchor Coring Surface Machine Top Hammer DTH Rig

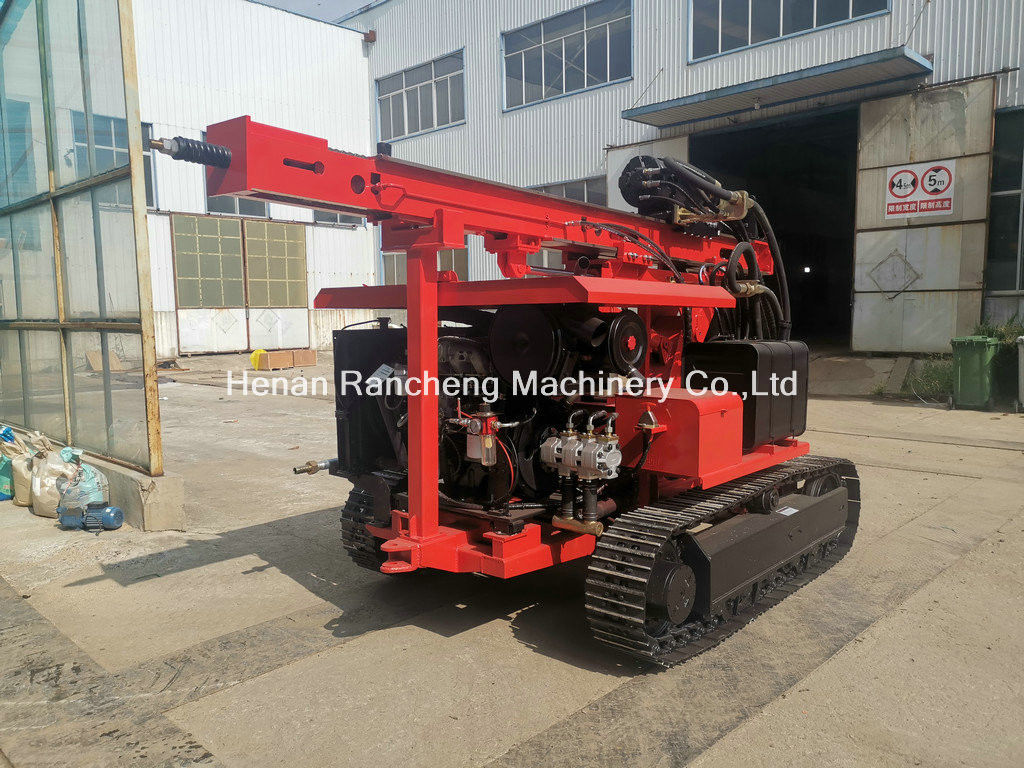

Machine introduction
The RC130Y high air pressure DTH drill crawler open with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.
Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.
Whole diameter 105-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability, is a mining, highway, water conservancy, power station construction and other construction ideal for drilling rig operations.
Technical Parameters
| Wind pressure(Mpa) |
1.2--2.46 |
| Air consumption(m³/min) |
10--20 |
| Drilling diameter(mm) |
115---150 |
| Drilling depth(m) |
down 62m |
| Once promotion distance(mm) |
3000 |
| Drill diameter(mm) |
76 |
| Skid compensation(mm) |
1200 |
| Maximum lift force(N) |
26000 |
| Guide shell lutting(°) |
up and down total 100 |
| Guide shell swing angle(°) |
Left and right total 100 |
| Boom lift angle(°) |
up and down total 70 |
| Boom swing angle(°) |
70 |
| Grade ability(°) |
30 |
| Chassis ground clearance(mm) |
300 |
| Travelling speed(Km/h) |
0-2.5 |
| Back to the transit speed(r/min) |
0--90 |
| Rotary torque(N.m) |
3100 |
| Host Power(kW) |
56 |
| For rock |
6---20 |
| Total Weight(kg) |
4800 |
| Dimension (L * W * H) |
5270*1950*2400 |
Advantages
--Safe and stable travelling system
Adopt a famous 4-cylinder diesel engine as the driving force which has the advantages of large power, small volume, small vibration, and reliable operation.
--Powerful and reliable engine
With a low gravity centre and big ground clearance, this drill machine can easily travel on bumpy roads. It is driven by a special wheel motor which brings strong grade-ability and a low failure rate.
--Powerful feed mechanism and rotating system
Optimally designed luffing mechanism and round drilling boom with the advantages of neoteric structure and easy maintenance
greatly improves the drilling hole's coverage area. That also makes low-order horizontal hole drilling available.
