Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF150C
Hydraulic 100m 150m Water Well Drilling Rig Depth Rotary Water Well Drilling Machine with Depth Capacity
Product Description
RCF150C series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
Technical Parameters
Bore diameter(Hammer) | 90-300mm |
Bore depth | 150m |
Air consumption | 17-31m³/min |
Air pressure | 1.7-2.5Mpa |
Pipe diameter | 76mm/89mm |
Pipe length | 3m |
Push force | 4T |
Lifting force | 12T |
Lifting speed | 2.5m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 18m/min |
Fast feeding speed | 35m/min |
Max torque of rotary | 3500-3800Nm |
Rotary speed | 40-65r/min |
Mud Pump flow | 200L/min (option) |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 3500×1700×2250MM |
Weight | 3700kg |
Diesel engine | 42KW |
Product advantages
1. Drilling rig chassis: Professional excavator chassis, sturdy and durable, with heavy bearing capacity. The drilling rig uses rubber tracks, which have high flexibility and minimal damage to hard roads.
2. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance, and low cost.
3. The operating system is simple and easy to operate
4. Convenient loading and unloading on trucks

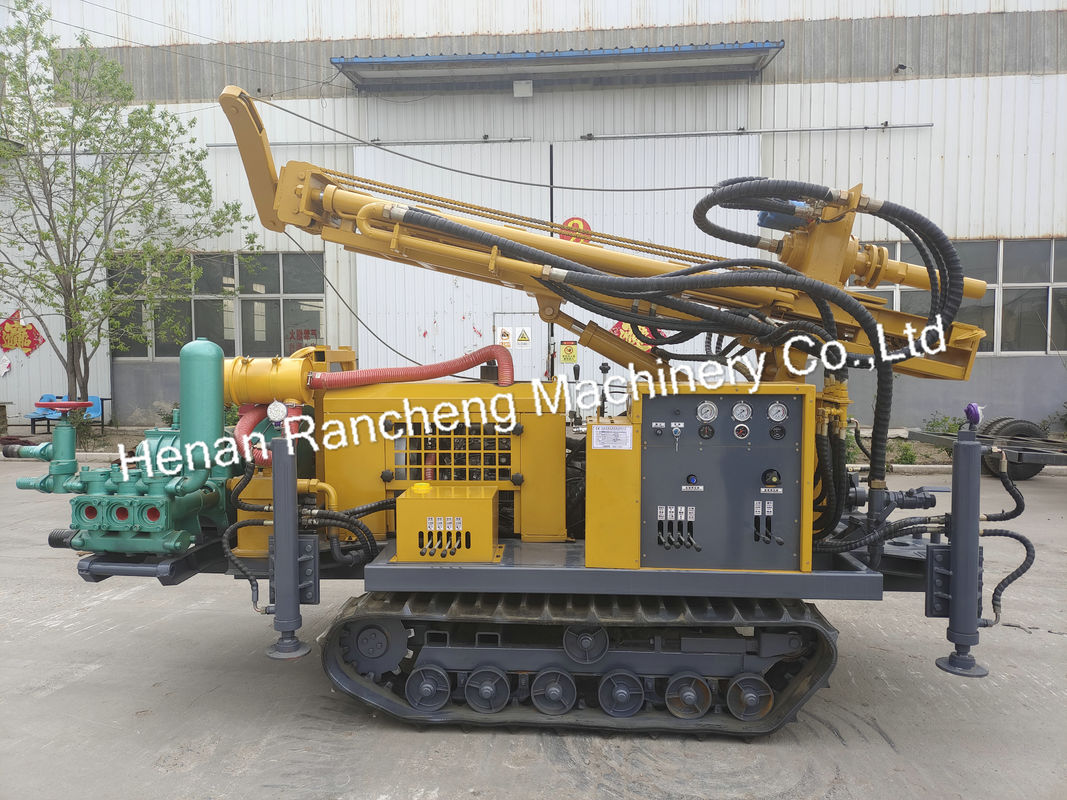

Machine pictures
