RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine

RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine

Compact Water Well Drilling Rig Machine

42KW Water Well Drilling Rig Machine

150m Water Well Drilling Rig Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150S

Contact Us
Request A Quote
Product Details
Model:
RCF150S Crawler Mounted
Max Depth:
150 Meters
Drilling Diamete:
90-300 Millimeters
Drilling Method:
Both Air Compressor And Mud Pump
Walking Way:
Hydraulic Rubber Crawler Mounted
Diesel Engine:
42KW Yuchai Engine
Highlight:

Compact Water Well Drilling Rig Machine

,

42KW Water Well Drilling Rig Machine

,

150m Water Well Drilling Rig Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine with 42KW Yuchai engine

Products Description



The RCF150S Small Water Boring Machine offers a reliable and versatile solution for various drilling needs. Its lightweight design, at just 2300 kg, ensures easy portability and maneuverability.

This machine is well-suited for applications such as farm irrigation, yard wells, geothermal wells, and industrial water drilling projects. It can drill holes up to 150 meters deep with diameters ranging from 90 to 300 mm, making it adaptable to various water well drilling tasks.

Equipped with two rotary motor head drives, the RCF150S can also be fitted with mud pumps and air compressors, ensuring smooth and efficient drilling across different soil types.


Machine Specifications


Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
weight 2300kg
Diesel engine 42KW Yunnei engine


Machine Advantages


The RCF150S Small Rubber Track Walking Water Well Drilling Rig is distinguished by its exceptional features. Its compact size, lightweight design, and versatile operation make it an ideal choice for various drilling tasks. Weighing just 2300 kg and measuring 2300 x 1200 x 1900 mm, it offers excellent portability and ease of deployment.

The rig employs a down-the-hole pneumatic design and is equipped with a dual-motor rotating head with a top drive, along with a mud pump and air compressor. The dual rotating motors provide enhanced rotation torque and speed, ensuring efficient drilling performance.

Powered by a robust 42 kW Yunnei engine, the RCF150S can drill up to 150 meters deep with diameters ranging from 90 to 300 mm. Its rubber track-mounted design ensures smooth mobility, while the fully hydraulic legs and operating system offer stability and ease during operations.

The rig's hydraulic system and overall design have been optimized to boost performance and efficiency. Its compact and adaptable nature makes it particularly suitable for use in courtyards and tight spaces.


Machine Pictures

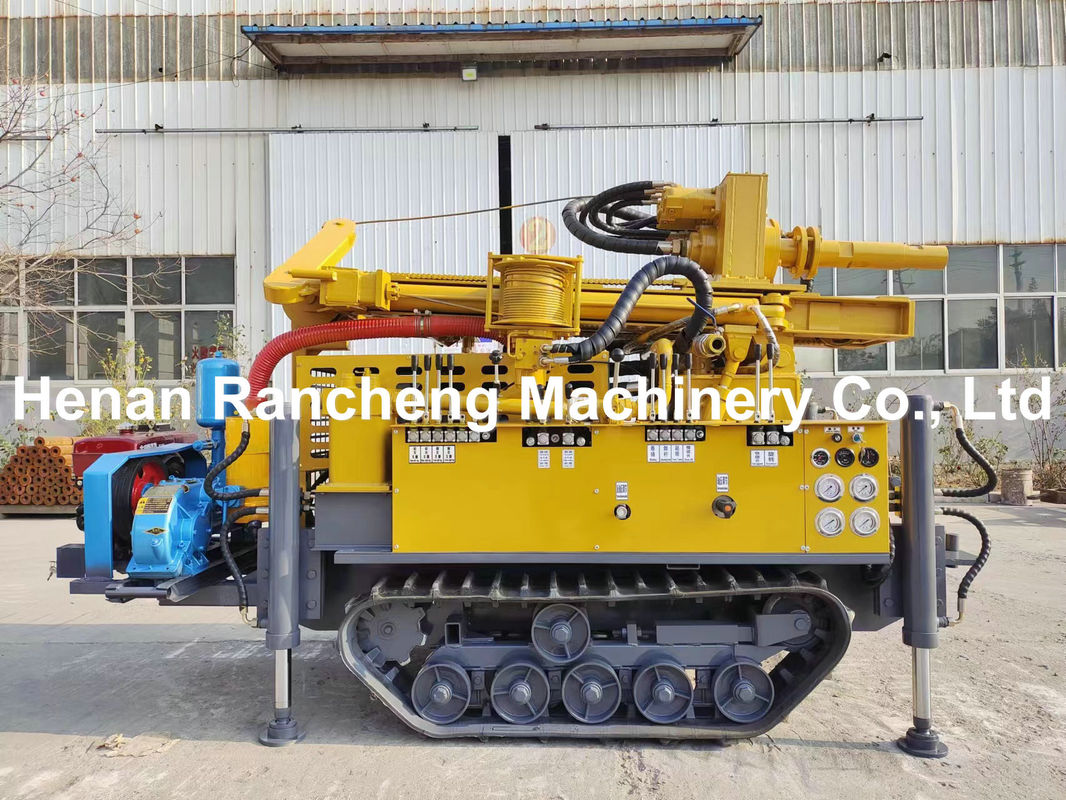

RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 0

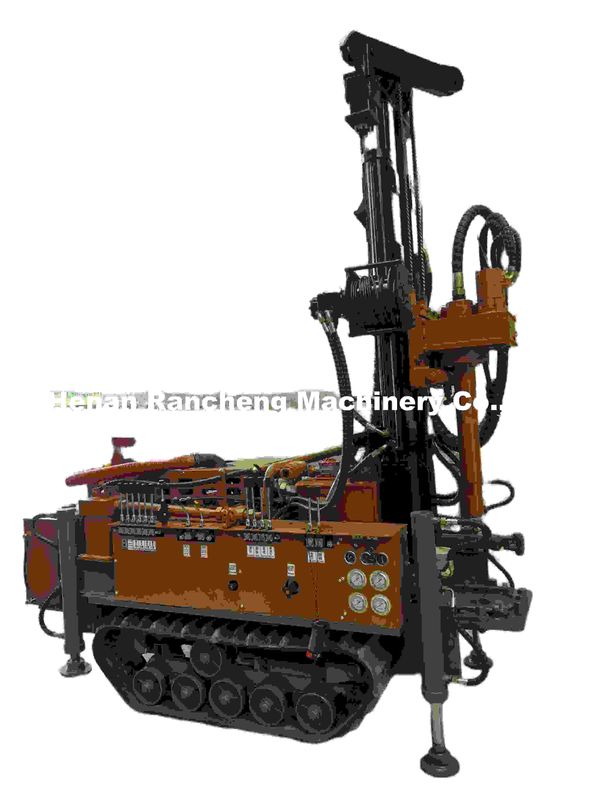

RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 1

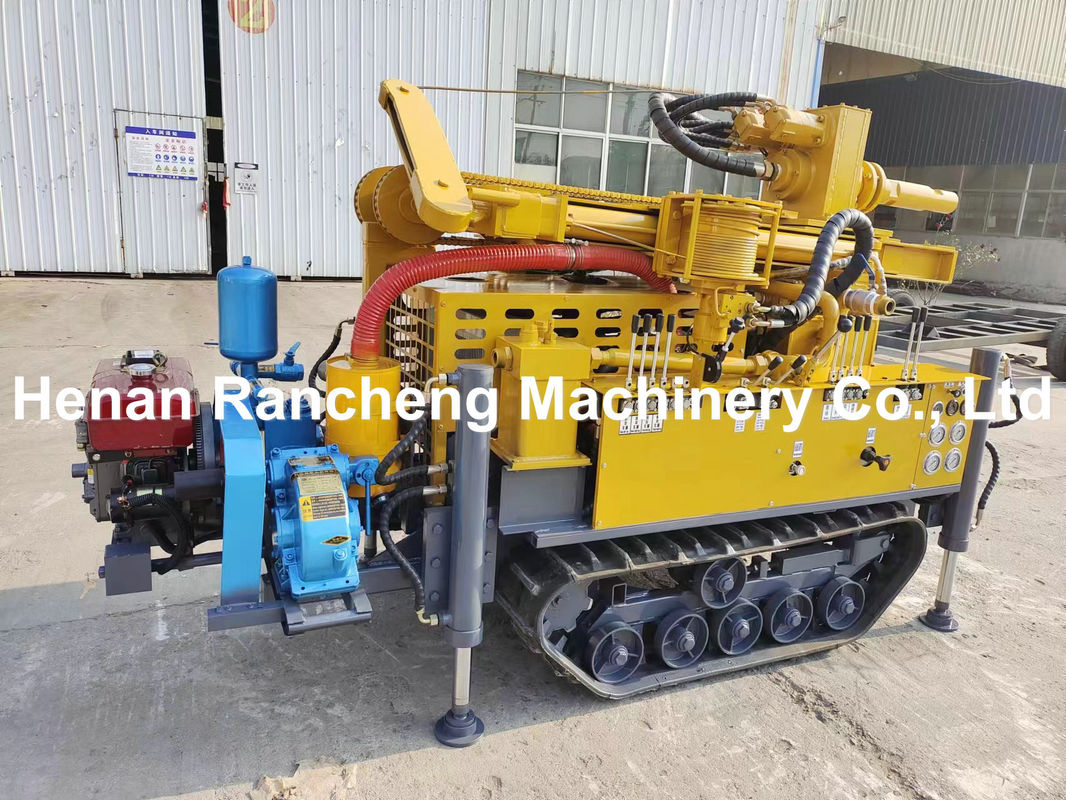

RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 2

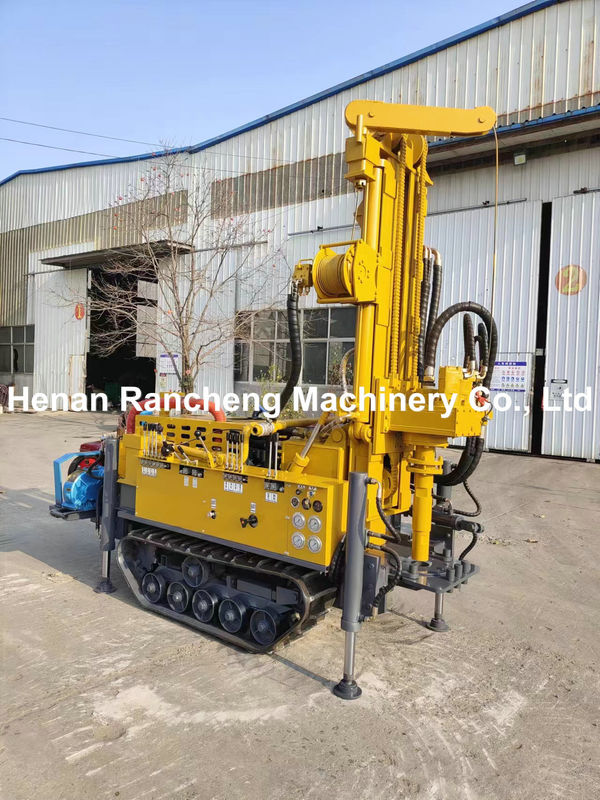

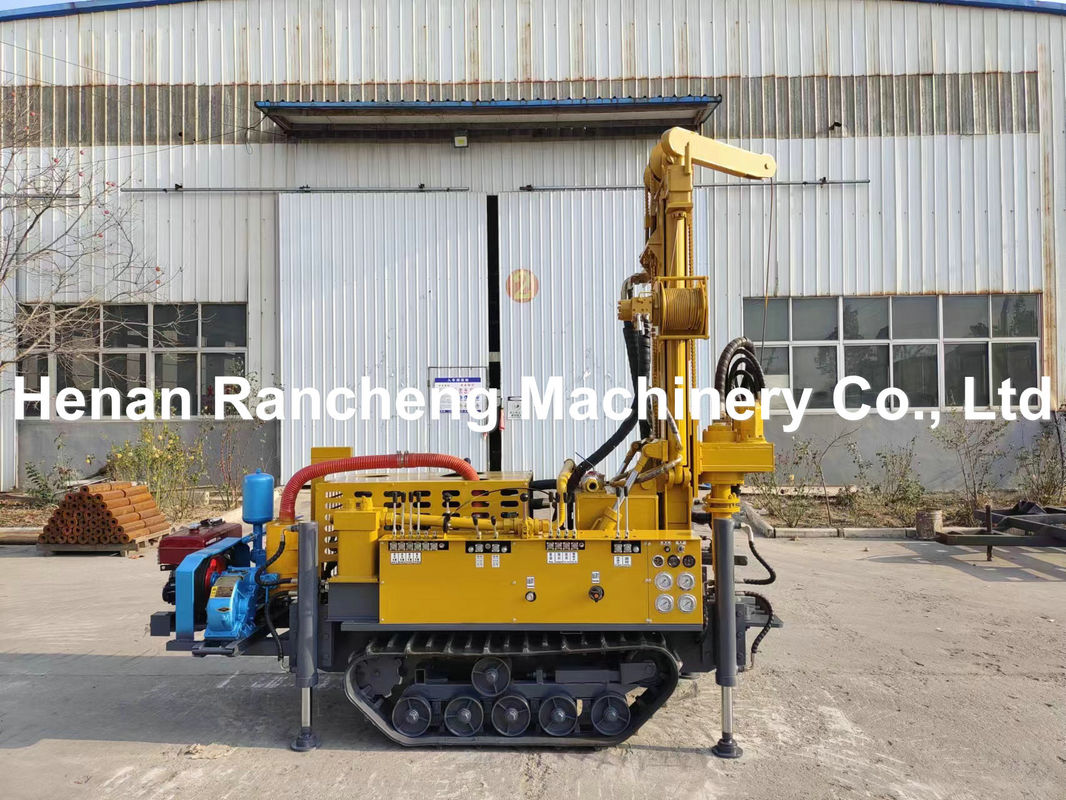

RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 3RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 4RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 5RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 6RCF150S 150m Depth Compact Rubber Track Water Well Drilling Rig Machine With 42KW Yuchai Engine 7
