280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig

280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig

280m Depth Rock Drilling Machine

Air DTH Rock Drilling Machine

Bore Hole Rock Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ280D

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF280C
Drilling Depth:
Max 280m
Diesel Engine Model:
75KW Yuchai Engine
Bore Diameter(hammer):
100-350mm
Rated Speed:
40-70r/min
Transport Dimension:
5900*1850*2360mm
Weight:
7600kg
Highlight:

280m Depth Rock Drilling Machine

,

Air DTH Rock Drilling Machine

,

Bore Hole Rock Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig



Product Description



RCF280C water well drilling rig machine is an efficient, multi-function full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in resource exploration and hydrology wells, civil use water well, agriculture irrigation, etc projects.



Technical Parameters



Model RCF280C
Bore diameter(Hammer) 100-350mm
Bore depth 280m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 3m/6m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4100×1900×2600mm
Weight 7000Kg
Diesel engine 70KW Yuchai engine





Machine Advantages



Yuchai engine: 70KW Yuchai turbocharged engine, a well-known brand in Guangxi.


Travel device: It is equipped with new travel motor and reducer with long service life;


Hydraulic oil pump: Imported from the United States; parallel gearbox is separated from oil pump. Thus hydraulic oil pump provides sufficient and reasonable power distribution. Advanced hydraulic system ensures simple maintenance and low cost;


Power head device: The gearbox body is integrated, and the dual motors provide greater power, greater torque, more durable, and lower maintenance cost;


Drilling rig chassis: Professional excavator chassis is durable, and heavy load-bearing but wide chain plate width makes less damage to hard roads;


Lifting force: RCF280C water well drilling rig machine adopts a composite boom design, with a small boom volume, long stroke, large lifting force of dual cylinders, and large lifting tonnage of the drilling rig; the lifting arm configured on the drilling rig body is equipped with a limit device to protect the safety of the cylinder and ensure safety during work; each hydraulic oil pipe is covered with a thickened protective sleeve to extend the service life of the pipe;


Lifting force: Water well drilling rig machine has composite tower with 6.6m long stroke. Its lifting force is 18t.

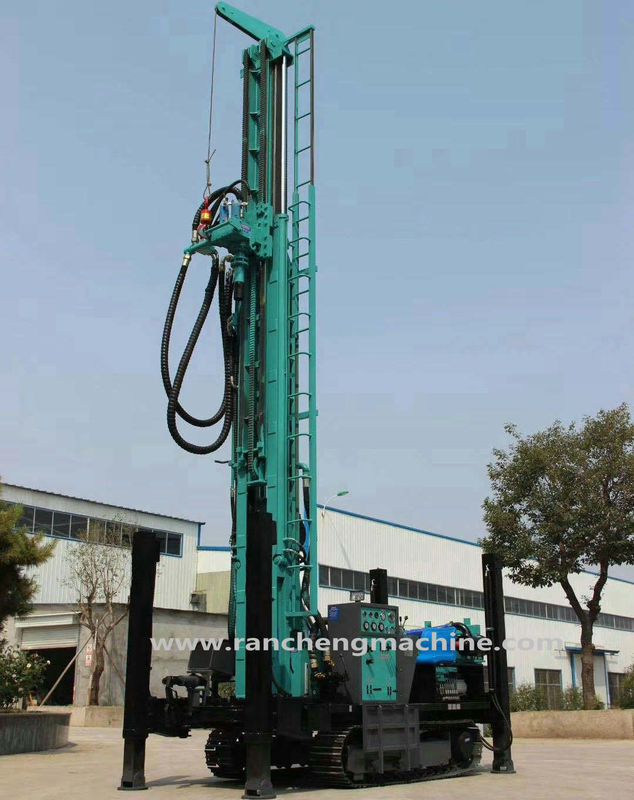

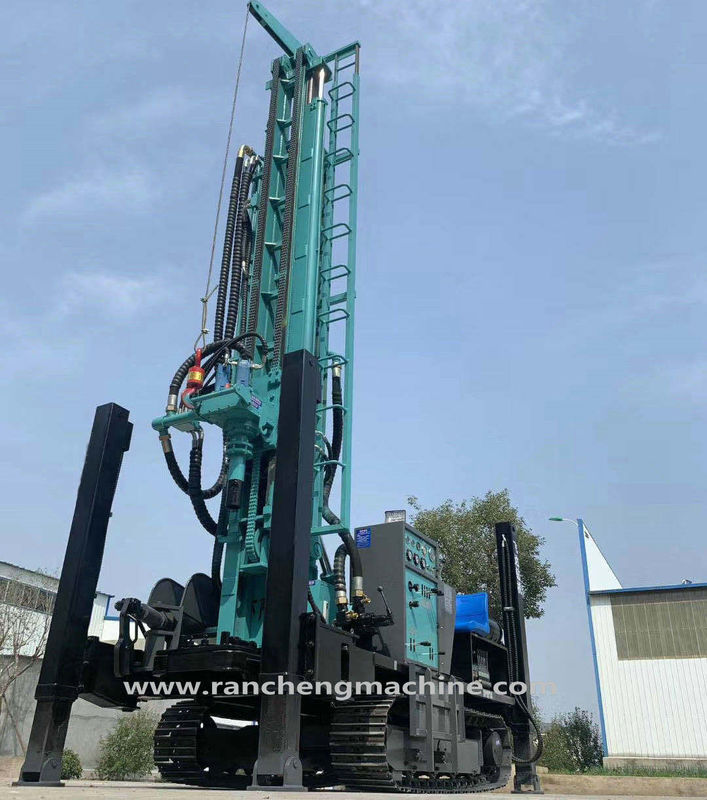

Machine Pictures



280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig 0280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig 1280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig 2280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig 3280m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig 4
