Solar Pile Driving with 39KW Engine 170 cm Drilling Depth 2600 mm Piling Height
Product Description
RCH360W bored pile equipment is a load-bearing wheel pile driver, and also a corrugated fence type drilling machine, which has three functions: punching, underground impact drilling and column pulling, and it can meet the needs of most engineering projects. The bored pile equipment is wheeled and can flexibly adapt to different terrains and construction conditions. Its flexible driving performance and simple operation enable it to efficiently complete various engineering tasks.
This equipment has a highly flexible movement pattern that can be adjusted to the terrain and road conditions, allowing it to perform well in a variety of working conditions. At the same time, its outstanding driving performance and easy operation allow operators to complete engineering tasks efficiently, thus improving the overall construction progress. In general, the RCH360W piling equipment is a construction tool with high flexibility, efficiency and adaptability, and is deeply loved by the construction team.
Product Specifications
| Model |
RCH360W |
| Working Dimension (mm) |
2900*2650*4200 |
| Transportation Dimension (mm) |
2900*2250*2550 |
| Wheelbase (mm) |
1950 |
| Vehicle Weight (Ton) |
2.8 |
| Engine Power (KW) |
39 |
| Flow Rate of Hydraulic System (L/min) |
90 |
| Hydraulic System Pressure (Mpa) |
20 |
| Mast stroke(mm) |
2300 |
| Piling Height (mm) |
2600 |
| Impact Power (J) |
1960 |
| Hydraulic Hammer Type |
YC360, Imported from South Korea |
| Piling efficiency (mm/min) |
2500 |
| Drilling Depth (m) |
1.7 |
| Drilling Diameter (mm) |
50-300 |
| Max. Climbing Ability (°/%) |
10°/ 17.6% |
| Max. Walking Speed (km/h) |
11 |
| Max traction speed (km/h) |
30 |
| Tire specifications |
7.0-9 |
| Left and Right Sliding Stroke (mm) |
≤400 |
| Max. Adjustment Angle of Sliding Guide Frame |
left 30 / right 8 |
| Front and Rear Adjustment Angle of Sliding Guide Frame |
Front 75 / Back 15 |
| Hydraulic Tank Capacity (L) |
80 |
| Diesel Tank Capacity (L) |
40 |
Product Features
1.Wheeled mobility: RCH360W bored piling equipment is suitable for flat ground, while crawler solar piling rig can easily cope with rugged or muddy terrain.
2.Flexible drive: RCH360W bored piling equipment is mainly driven by diesel engines, and can also be equipped with other drive devices to meet customers' needs for different construction requirements.
3.Easy operation: The bored piling equipment focuses on humanization and is relatively simple to operate.
4.Efficient: Bored piling equipment quickly completes drilling tasks, improve construction progress, and shorten project cycles.
5.Energy-saving: Bored piling equipments use energy-saving technology, optimize power systems, reduce energy consumption, and help reduce the impact of the construction process on the environment.
6.Angle gauge and vertical drilling: Bored piling equipment is equipped with an angle gauge, which enables operators to adjust the direction in time, ensure the verticality of the hole, and improve the quality of the project.
7.Intelligent design: The Bored piling equipment adopts an intelligent design and is equipped with different hammer adapters, drill bits, and heads to adapt to columns of different shapes.

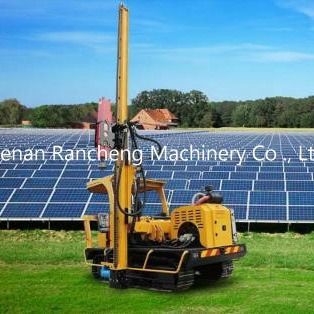

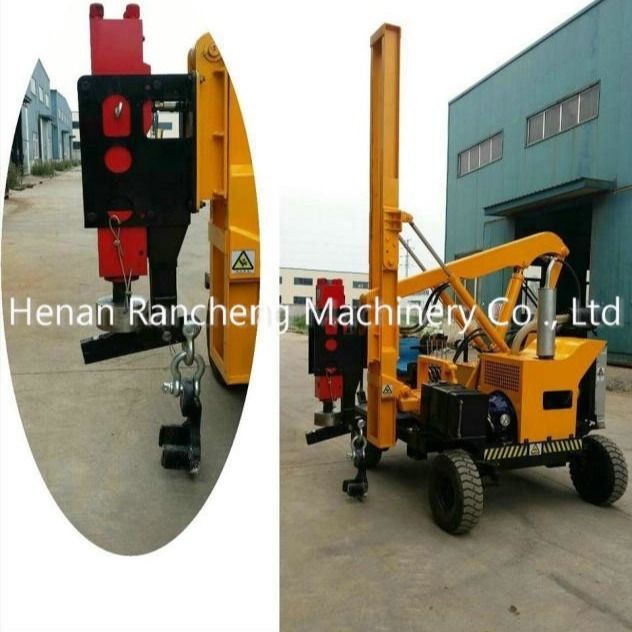

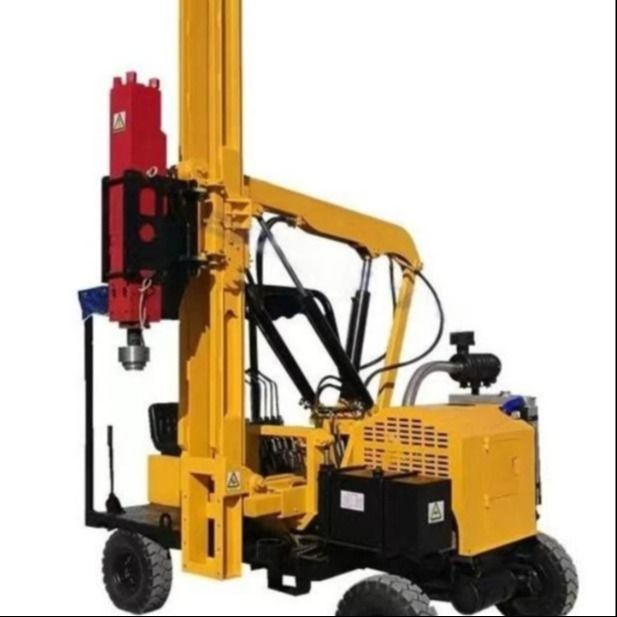

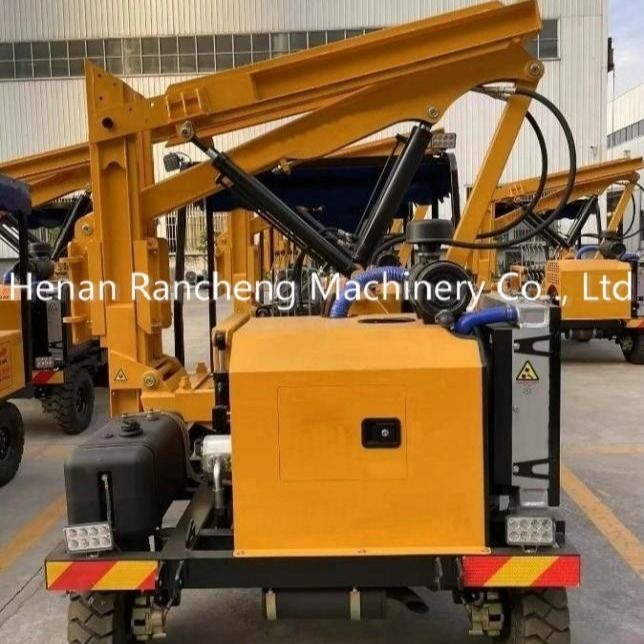

Product Image
