Name: 20-100m Depth Crawler Hydraulic Solar Pile Driver Both Rotary And Hammer Drilling
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RC185Y
Availability: InStock

Home > products > Solar Pile Driver >

20-100m Depth Crawler Hydraulic Solar Pile Driver Both Rotary And Hammer Drilling

20-100m Depth Solar Pile Driver

Rotary Solar Pile Driver

Hammer Drilling Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC185Y

Request A Quote

Product Details

Name:

Hydraulic Solar Pile Driver

Model:

RC185Y

Bore Diameter:

90-300mm

Bore Depth:

20-100mm

Air Consumption:

10-26m³/min

Dimension:

5300*1970*2620mm

Weight:

5800kg

Host Power:

84kw

Highlight:

20-100m Depth Solar Pile Driver

Rotary Solar Pile Driver

Hammer Drilling Solar Pile Driver

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

20-100m Depth Crawler Hydraulic Solar Pile Driver Both Rotary And Hammer Drilling

Machine Description

RC185Y is a multifunctional head-up drilling rig with multiple drilling methods such as mud pump rotary drilling, air down-the-hole drilling, piling drilling, solar piling, photovoltaic solar piling, etc. It is widely used in a variety of different projects.

The hydraulic pilot adopts new hydraulic technology with low consumption, high torque and convenient drilling.

Application:

This hydraulic drilling rig is widely used in water well drilling, solar pile installation, auger foundation, geotechnical engineering foundation, well construction, etc.

Machine Specifications

Bore diameter(hammer)	90-300mm
Bore depth	20-100m
Air consumption	10-26m³/min
Air pressure	0.7-1.6Mpa(medium)
Air pressure	1.6-2.46Mpa(high)
Pipe diameter	76mm/89mm
For rock	F=6-20
Bore diameter(screw)	Max 400mm
Bore depth	0-30m
Screw pipe diameter	130-400mm
Once promotion	3200mm
Skid pitch	120º
The swinging angle of the drilling boom	Left and right total 50º
The swinging angle of the skid	Left and right total 40º
Rotation speed	0-110r/min
Host power	84Kw
Climb ability	35º
Dimension(LWH)	530019702620mm
weight	5800Kg
Walk speed	0-2.5km/h

Machine Advantages

1. The RC185Y hydraulic chain drill adopts new hydraulic technology, with low consumption, large torque and convenient hole offset.

2. The drilling rig has a compact structure and the mast has an adjustable offset function. When drilling, the mast is close to the ground and the well stability is good.

3. The RC185Y hydraulic ground screw pilot platform has reliable performance, high efficiency and is suitable for working conditions. It can also reduce costs and improve efficiency.

4. Multifunctional, this drilling rig is mainly used for anchoring, water wells, solar photovoltaic spiral piles, down-the-hole blasting structures, etc.

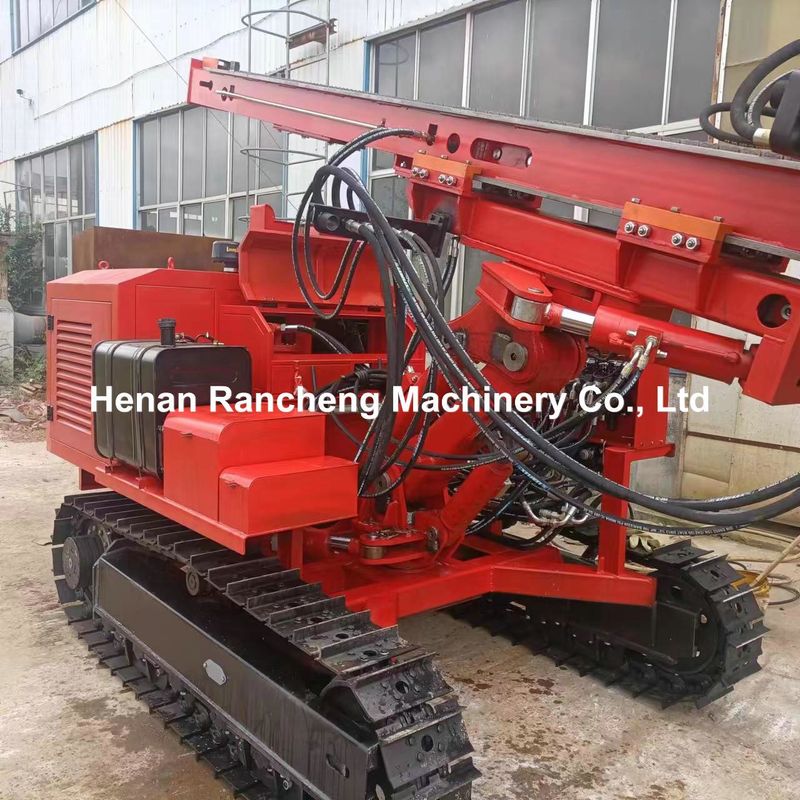

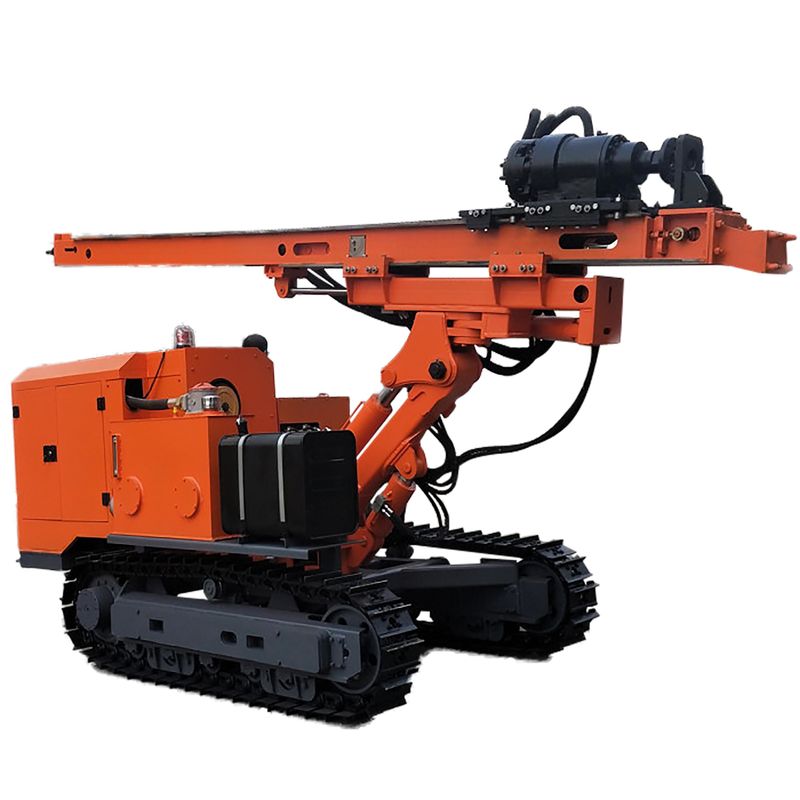

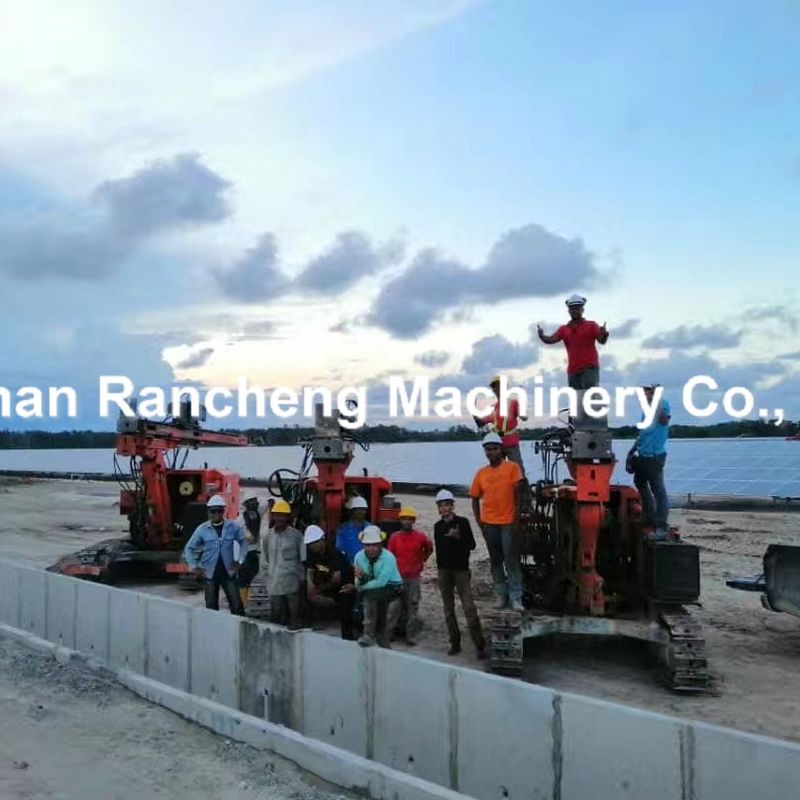

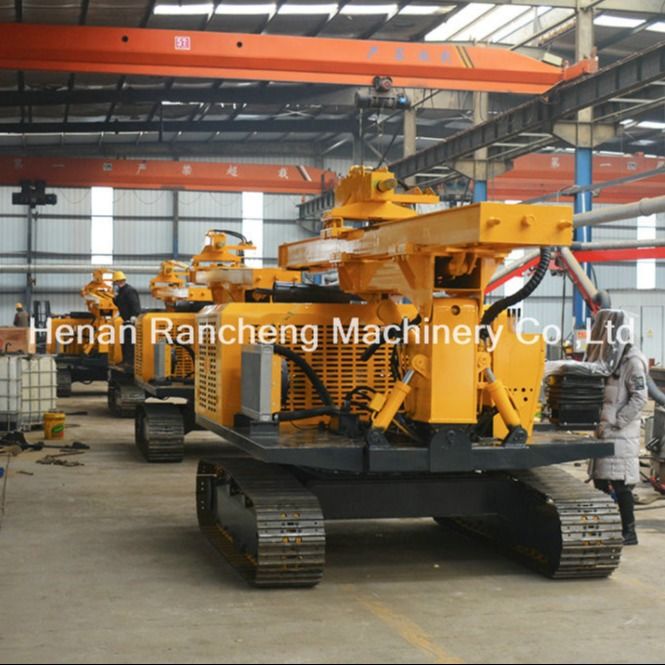

Machine Pictures
