180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine

180m Water Well Drilling Machine

Borehole Water Well Drilling Machine

Mini Size Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Product Details
Model:
RCF180S Small Crawler Water Well Drilling Rig
Max Drilling Depth:
180m
Drilling Diameter:
90-300mm
Diesel Engine:
77.3KW
Travel Speed:
2.5Km/h
Dimension:
2300×1200×1900mm
Highlight:

180m Water Well Drilling Machine

,

Borehole Water Well Drilling Machine

,

Mini Size Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

180m Borehole Water Well Drilling Machine/Mini Size Water Well Drilling Machine

Machine Description



The RCF180S mini well drilling rig is a compact crawler water well drilling machine capable of drilling up to 180 meters with a diameter of up to 300 mm. This mini rig boasts high drilling efficiency, ease of operation, energy savings, and durability, making it ideal for various applications such as water well drilling, borehole drilling, and farmland irrigation.



This small water drilling rig is made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers' positive feedback. This machine passed CE certificate ,it is more popular and well received in Europe !



Technical Parameters



Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine


Advantage


1. This small drilling rig covers a small area (1 square meter) and is 2 meters high. It can be installed in less than 10 minutes. It can be used in indoor and outdoor places.



2. Self-developed, breaking the difficult problem of easy drilling and difficult dismantling.


3. All lifting, loading, and unloading of drill pipes are mechanized, which saves time and labor and is easy to operate.

Image Display

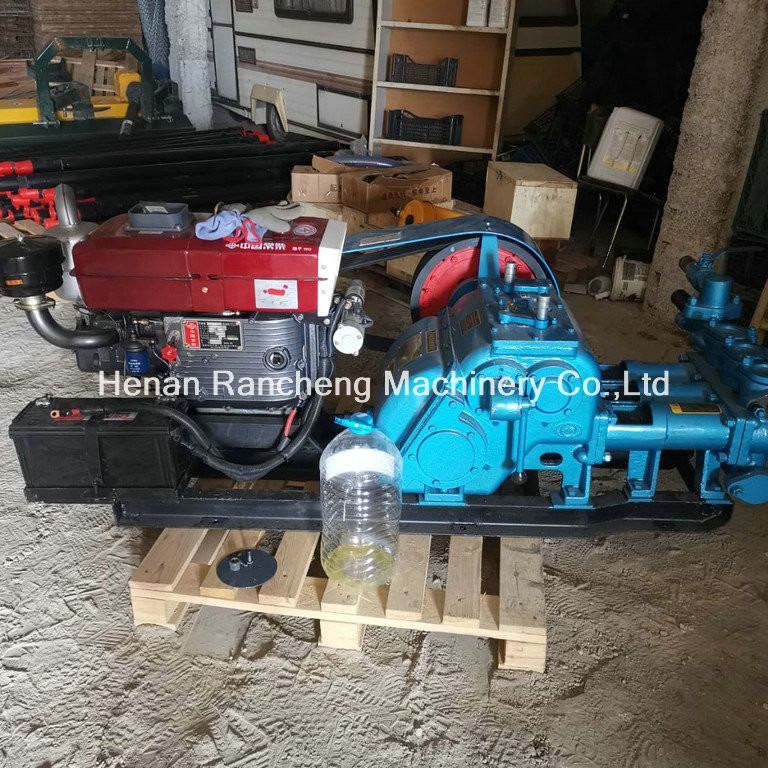

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 0

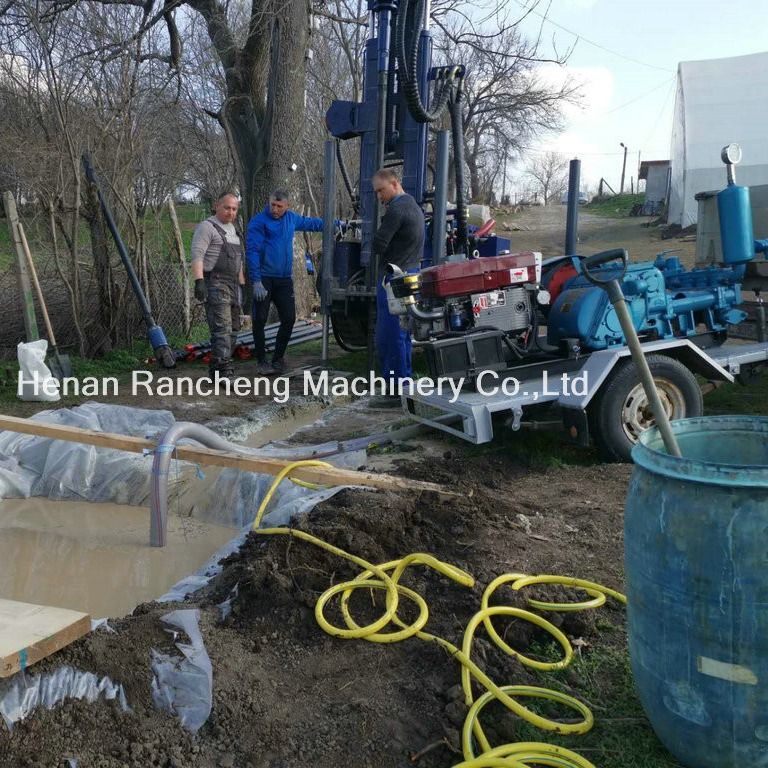

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 1

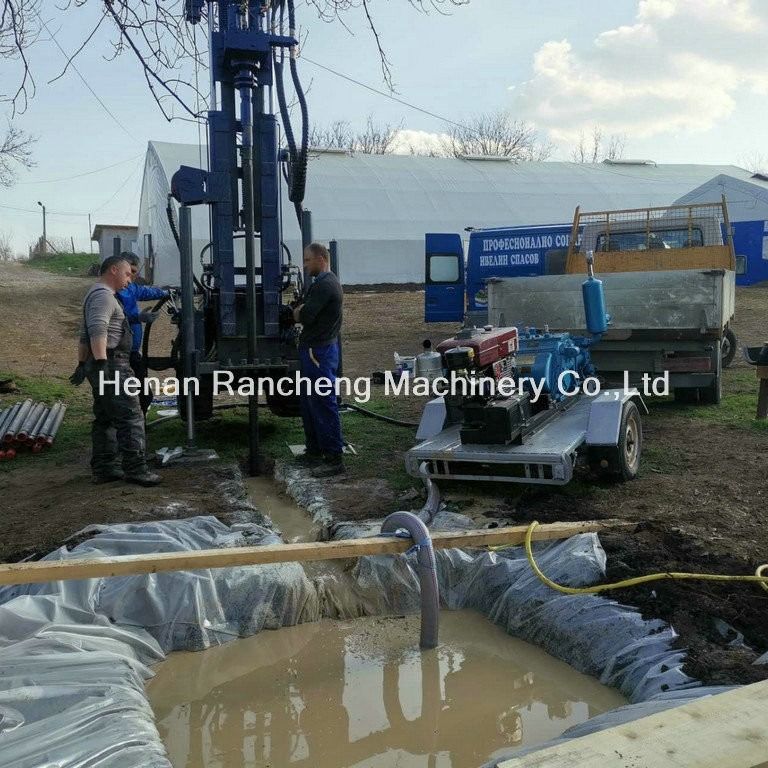

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 2

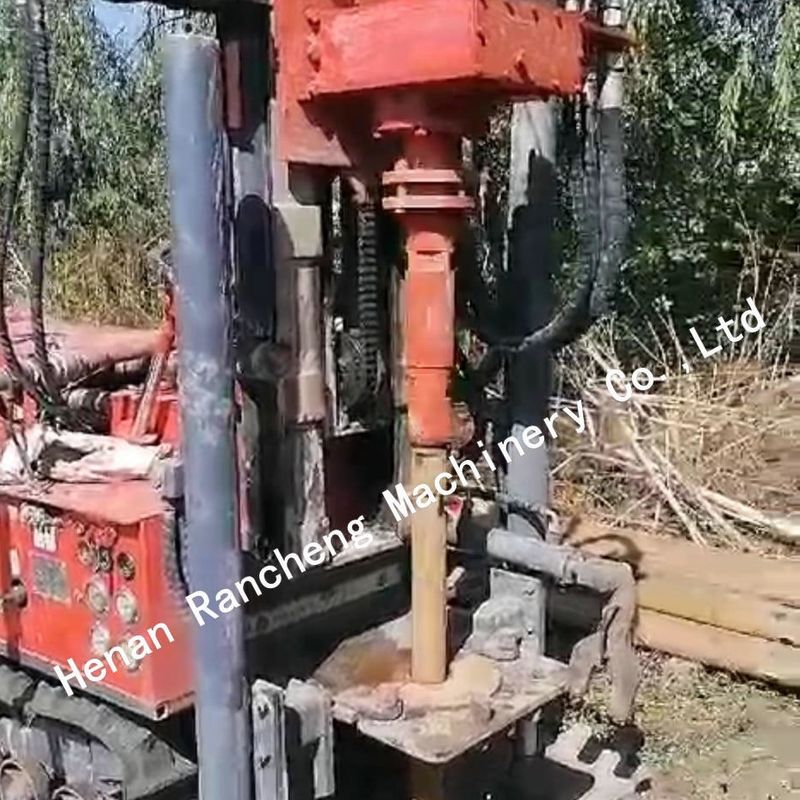

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 3

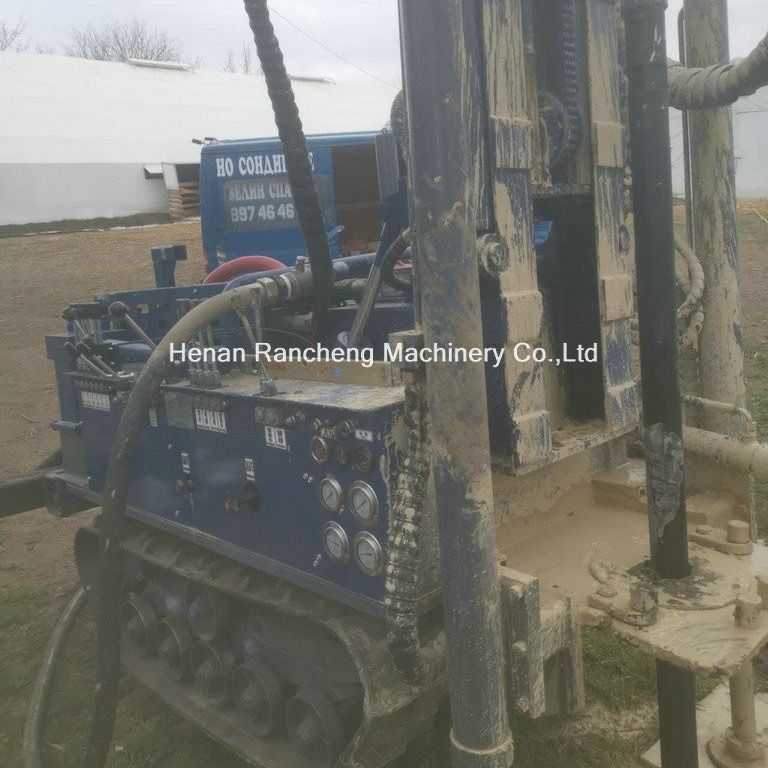

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 4

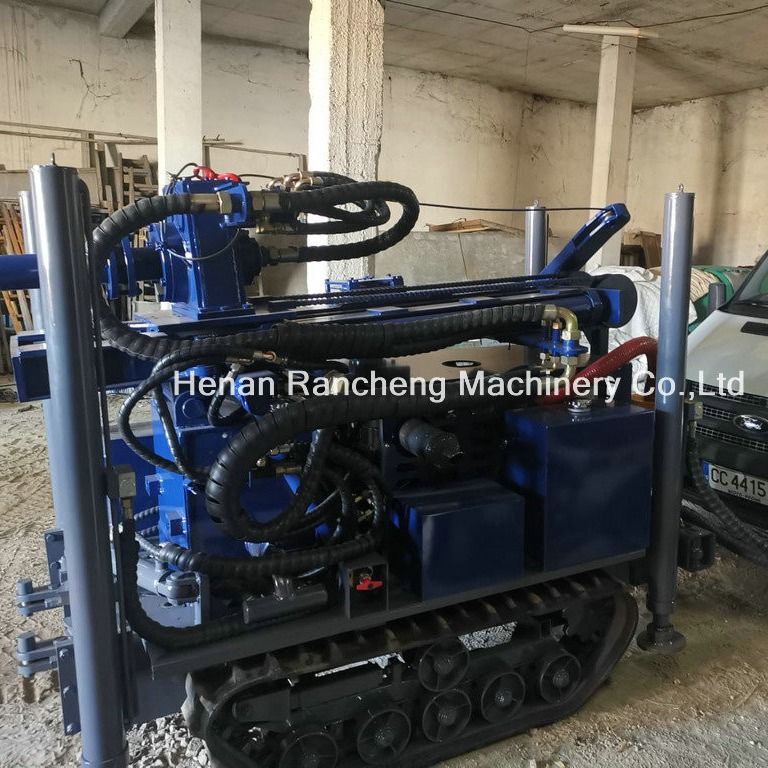

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 5

180m Borehole Water Well Drilling Machine / Mini Size Water Well Drilling Machine 6



Company Information



Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.


We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
