Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine

Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine

200m Depth Water Well Drilling Rig

Hydraulic Crawler Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE,ISO 9001:2000

Model Number:

RCF200C

Contact Us
Request A Quote
Product Details
Color:
Customized
Name:
Hydraulic Rubber Mounted Water Well Drilling Rig
High Hydraulic Leg(m):
1.5
Diameter(mm):
90-350
Depth(m):
200
Pipe Length(m):
3
Travel Speed:
2.5Km/h
Highlight:

200m Depth Water Well Drilling Rig

,

Hydraulic Crawler Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine



Product Description



This adaptable down-the-hole pneumatic water well drilling rig is engineered for both efficiency and flexibility. It boasts dual motors with top rotation capabilities, allowing it to operate smoothly with mud pumps and air compressors. Capable of drilling to a maximum depth of 200 meters and with a diameter range of 100 to 300 mm, it is driven by a powerful 58 kW diesel engine. This rig is specifically designed to navigate various ground conditions, including hard rock, clay, soil, and sand. Its hydraulic rubber crawlers enhance maneuverability, while the four hydraulic outriggers, each standing 1.7 meters tall, simplify truck transportation.



Application



The RCF200C is primarily used for drilling various types of wells, including those for irrigation, household drinking water, geothermal applications, hydrological studies, civil projects, and industrial purposes.



Technical Parameters



Model RCF200C
Bore diameter(Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4000X1800X2300mm
Weight 5000Kg
Diesel engine

58KW Yuchai



Product advantages



This rig boasts remarkable drilling power, effortlessly penetrating through rocks and soil layers. Built to stringent manufacturing standards, it guarantees outstanding durability and longevity. Its efficient power system minimizes fuel consumption, while the compact and flexible design enhances portability. With advanced safety features and adherence to environmental regulations, this rig further increases its appeal. Overall, it stands out as an excellent choice for drilling professionals in search of both reliability and high performance.

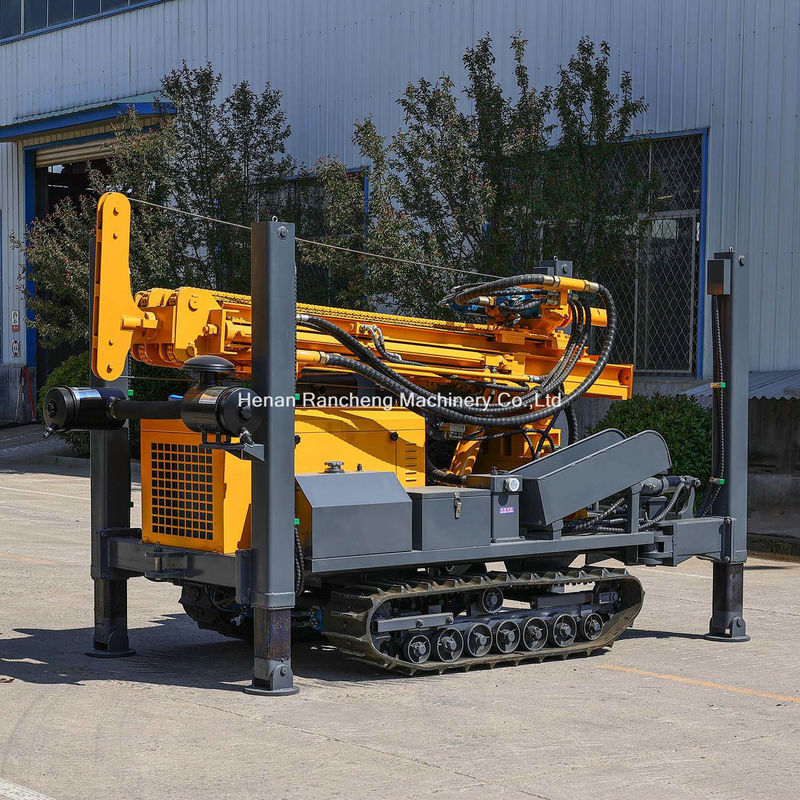

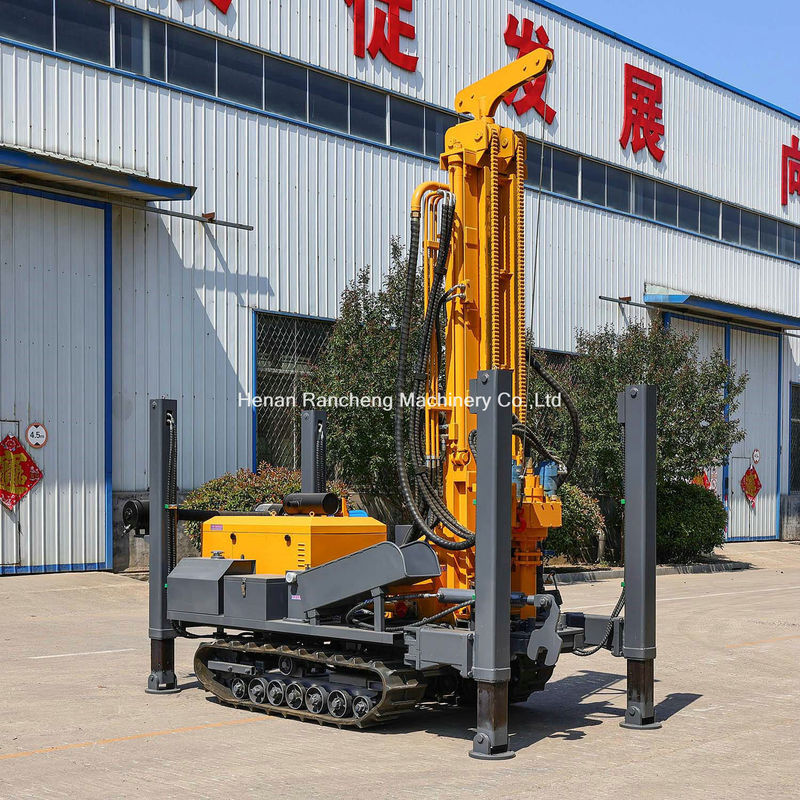

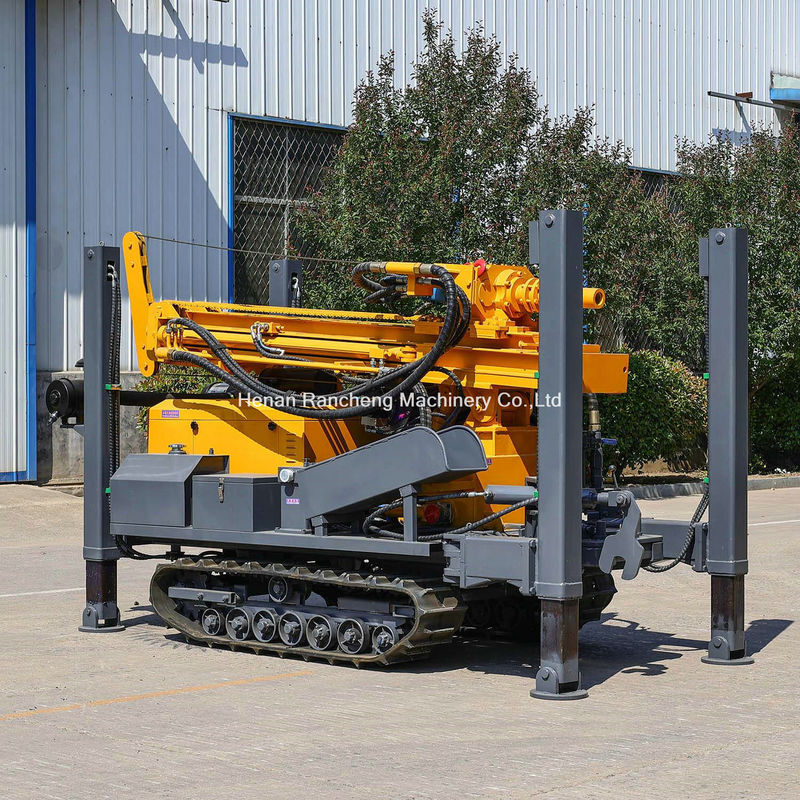

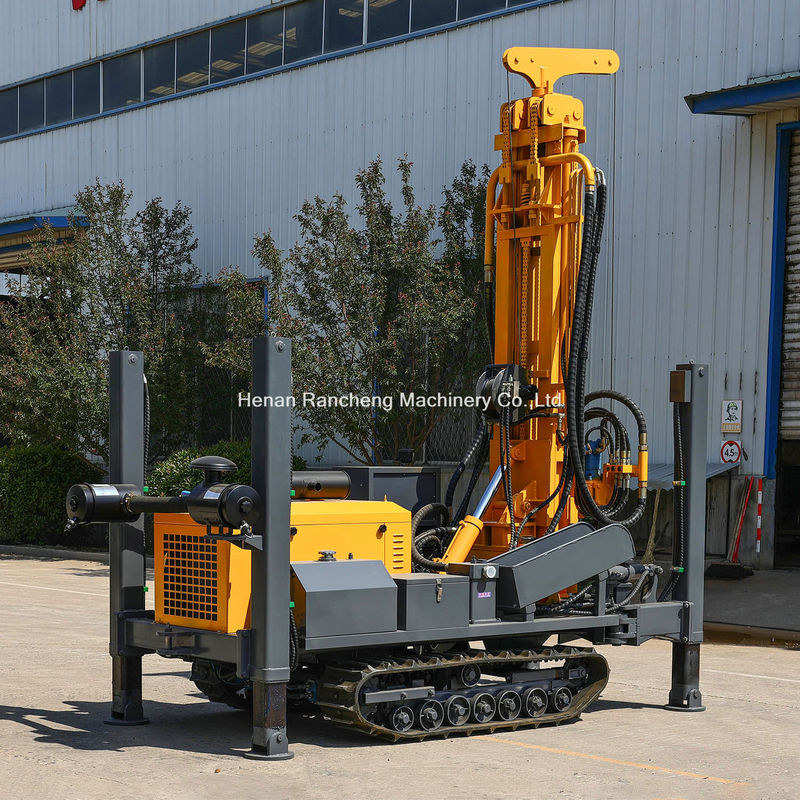

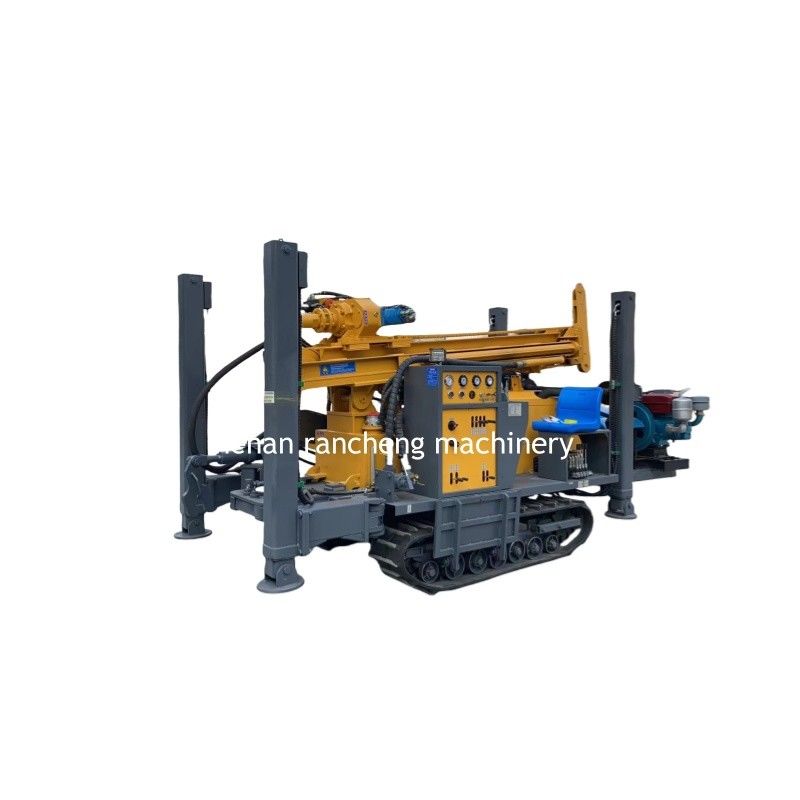

Machine picture display



Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine 0Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine 1Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine 2Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine 3Max 200m Depth Hydraulic Crawler Water Well Drilling Rig With 58KW Diesel Engine 4
