Name: RCKM-30S Small Pile Driver Machine Hydraulic Mini Piling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCKM-30S
Availability: InStock

Home > products > Solar Pile Driver >

RCKM-30S Small Pile Driver Machine Hydraulic Mini Piling Rig

Hydraulic Mini Piling Rig

Mini Piling Rig Price For Sale

Small Pile Driver Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Request A Quote

Product Details

Name:

Solar Pile Drive

Rotary Head Torque:

3500N.m

Way Of Walking:

Crawler Gearbox Walking

Walking Speed:

7-15km/h

Air Consumption:

6m3/min

Rigcooling System Weight:

Hydraulic Cooler

Highlight:

Hydraulic Mini Piling Rig

Mini Piling Rig Price For Sale

Small Pile Driver Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

RCKM-30S Small Pile Driver Machine Hydraulic Mini Piling Rig Price For Sale

Product Description

RCKM-30S Small Pile Driver is used for solar pile driver or Road Side Fence or mini pile drilling .it can be solar screw pile drilling ,auger pipe drilling or DTH drilling.

The small pile driver is designed to work with solar piling, which is a professional machine in solar installations. The small pile driver is compact size design and light weight ,it is easy to transport and move, and it is full hydraulic system, also very easy to operate, with very high drilling efficiency

Product Specifications

Model	RCKM-30S
Rig weight	1.2t
Dimensions (L×W×H)	230013002200mm
Engine power	25HP
Rotary head torque	3500N.m
Hydraulic oil pump	Single pump
hydraulic loading system	Cylinder chain pressure
Hydraulic working pressure	20Mpa
Way of walking	Crawler gearbox walking
Walking speed	7-15km/h
cooling system	Hydraulic cooler
Carriage travel distance	2.8m
Piling height	1-3m
Borehole diameter	50-300mm
Borehole depth	1-30m
Air consumption	6m3/min
Adapt to rock types	Medium hard rock ,F=8-12
Climbing ability	35°
Hydraulic legs	4

Product Features

Powerful function

Drilling depth up to 30m, drilling diameter 50-300mm.

Accurate drilling positioning

The drilling angle is adjustable from 45° to 90°, easy to operate, and the drilling efficiency is fast.

New hydraulic technology

Advanced hydraulic system, excellent hydraulic components, long service life of hydraulic system.

Packaging & Shipping

1,this hydraulic solar pile drilling rig is standard exporting package
2,it can be shipped by one 20" container
3,we can ship the drilling machine in 10-15 working days after get the purchasing order

Product Image

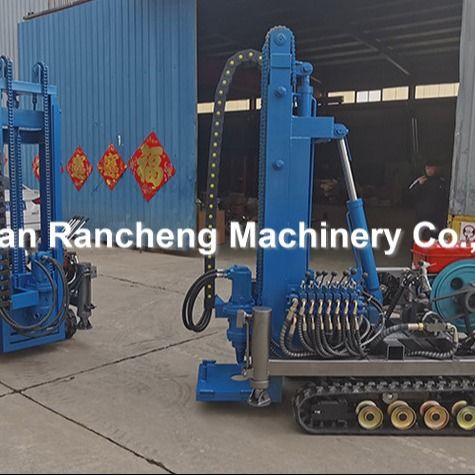

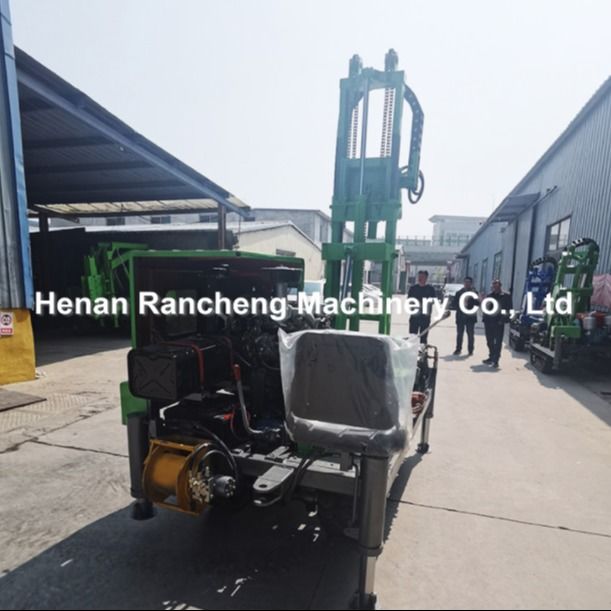

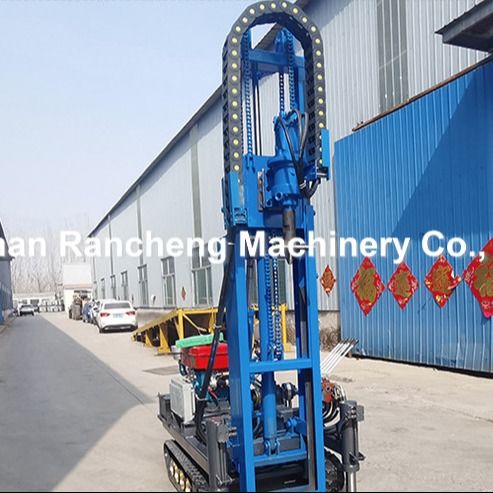

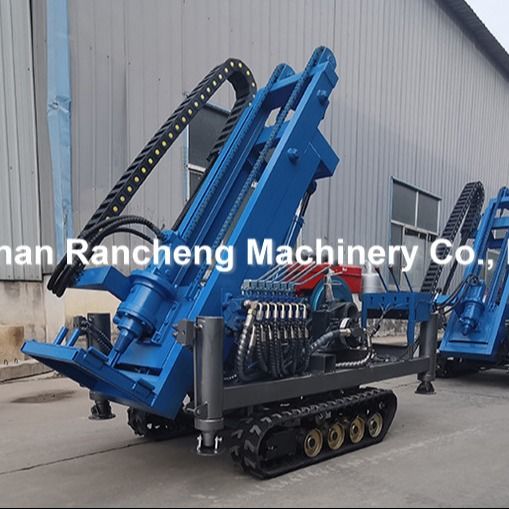

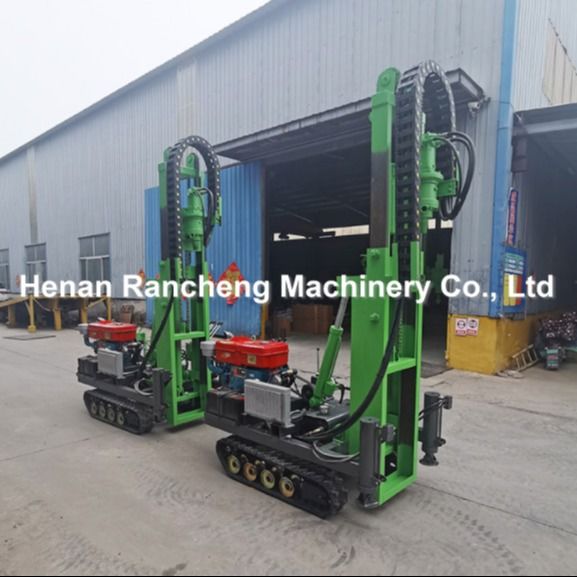

RCKM-30S Small Pile Driver Machine Hydraulic Mini Piling Rig 0
