Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF400C
400m full hydraulic water well drilling rig machine with 92KW Yuchai engine
Machine Introduction
RCF400C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
Technical Parameters
Bore diameter(Hammer) | 140-350mm |
Bore depth | 400m |
Air consumption | 17-36m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 1.5m/2m/3m/6m |
Lifting force | 22T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 20m/min |
Fast feeding speed | 40m/min |
Max torque of rotary | 6200-9000Nm |
Rotary speed | 66-135r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.4m |
Feeding efficiency | 15-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6000×2100×2550mm |
Weight | 9200Kg |
Diesel engine | 92KW Yuchai engine |
Drilling way | Air compressor drilling or mud pump drilling |
Application
our RCF450C water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

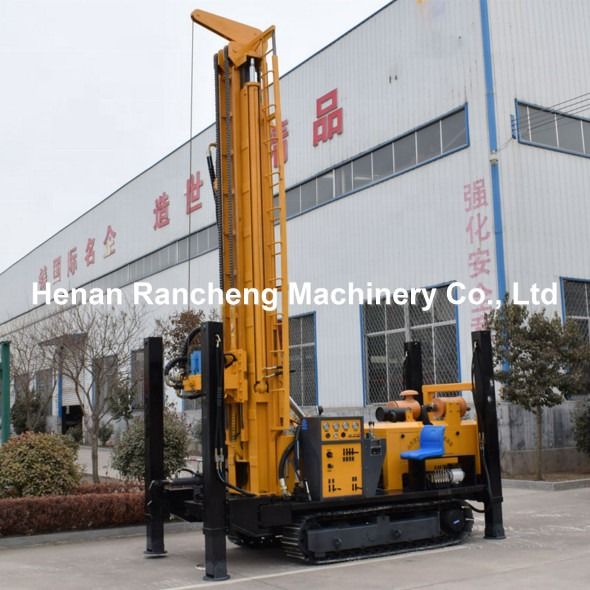

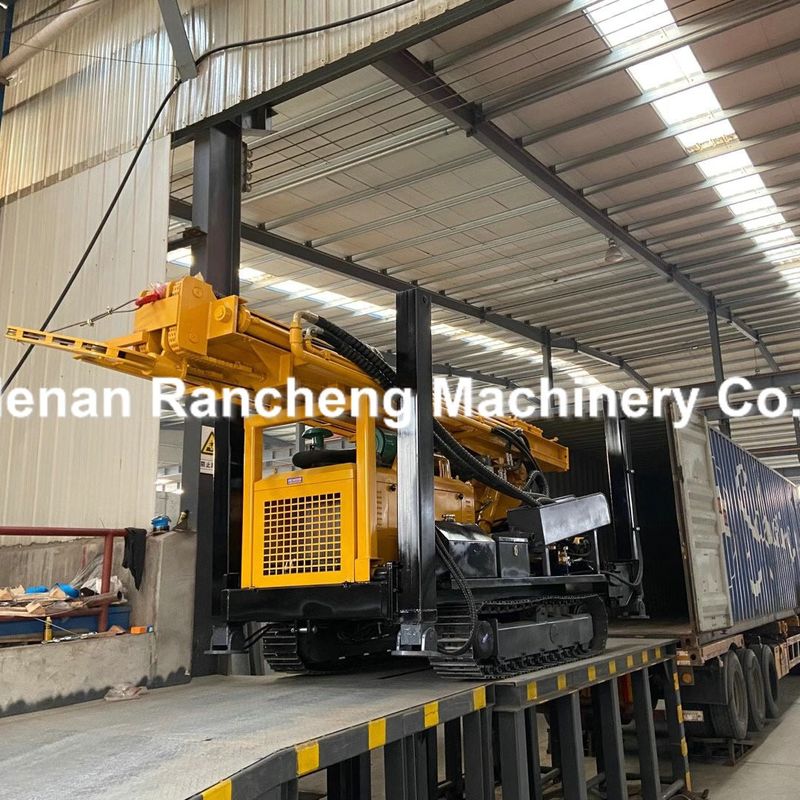

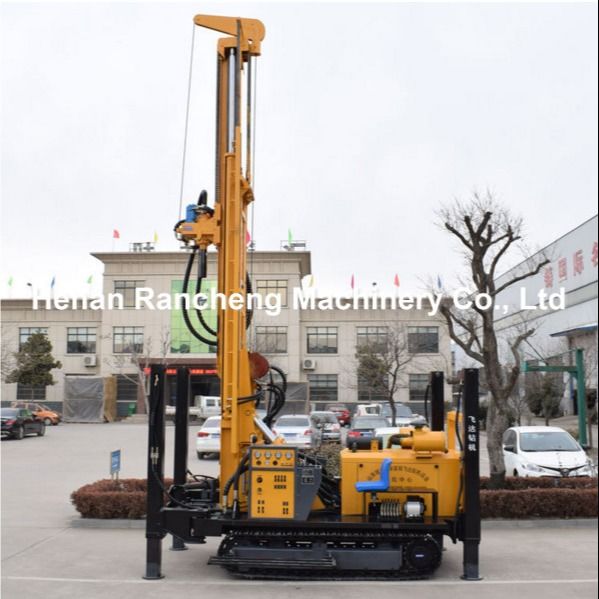

Machine Pictures
