Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCKM-30S
30m Depth Small Crawler Pneumatic Pile Driver
Product Description
The small pile driver is designed to work with solar piling, which is a professional machine in solar installations.
The small pile driver is compact size design and light weight ,it is easy to transport and move, and it is full hydraulic system, also very easy to operate, with very high drilling efficiency
This solar pile driver is suitable for a variety of projects, including high-speed railway catenary pillars, slope protection piles, solar photovoltaic power station foundation support piles, etc. It can adapt to various geological conditions and is a multi-functional and efficient piling equipment.
Product Specifications
Model | RCKM-30S |
Rig weight | 1.2t |
Dimensions (L×W×H) | 2300*1300*2200mm |
Engine power | 25HP |
Rotary head torque | 3500N.m |
Hydraulic oil pump | Single pump |
hydraulic loading system | Cylinder chain pressure |
Hydraulic working pressure | 20Mpa |
Way of walking | Crawler gearbox walking |
Walking speed | 7-15km/h |
cooling system | Hydraulic cooler |
Carriage travel distance | 2.8m |
Piling height | 1-3m |
Borehole diameter | 50-300mm |
Borehole depth | 1-30m |
Air consumption | 6m3/min |
Adapt to rock types | Medium hard rock ,F=8-12 |
Climbing ability | 35° |
Hydraulic legs | 4 |
Packaging & Shipping
1,this hydraulic solar pile drilling rig is standard exporting package
2,it can be shipped by one 20" container
3,we can ship the drilling machine in 10-15 working days after get the purchasing order

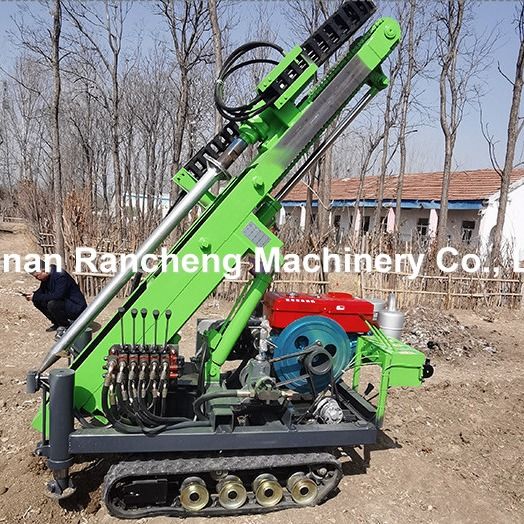

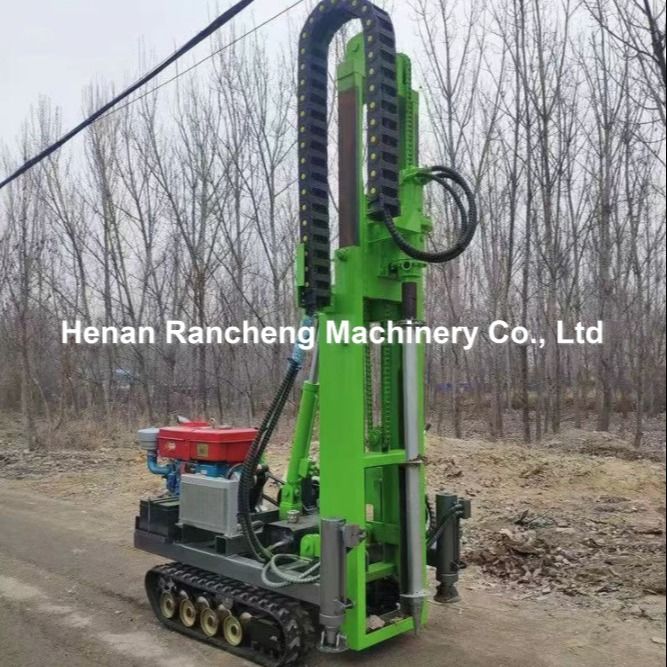

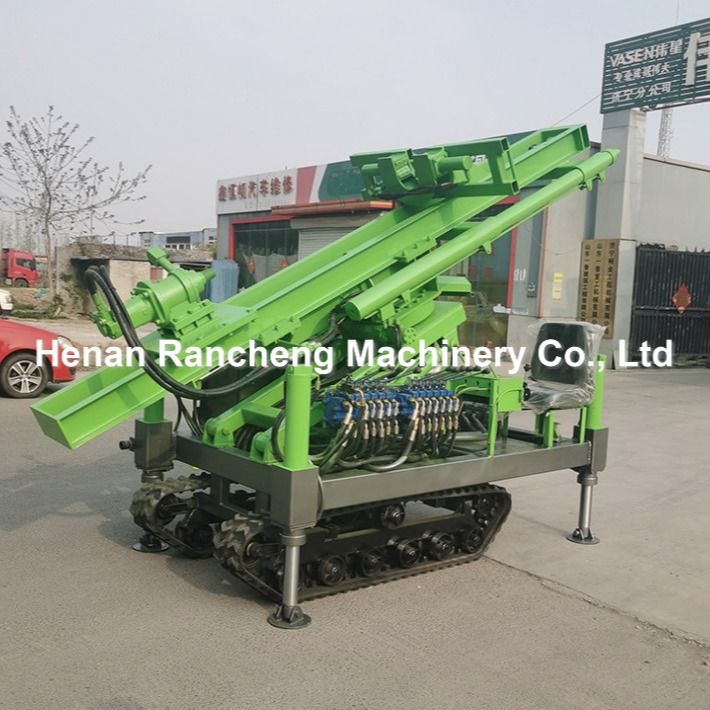

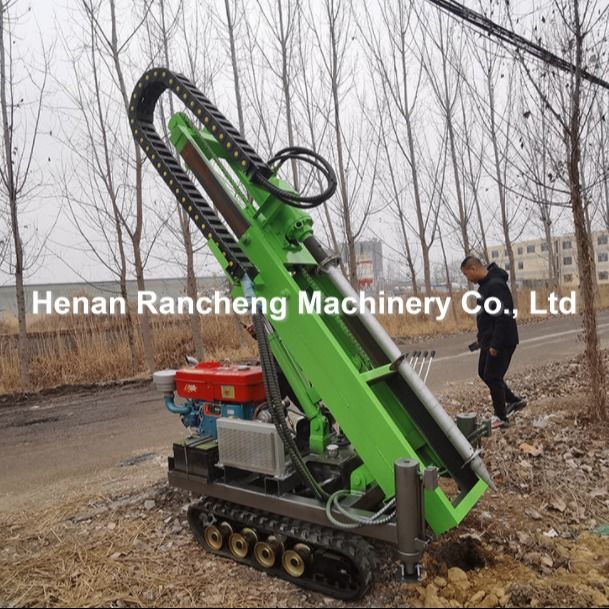

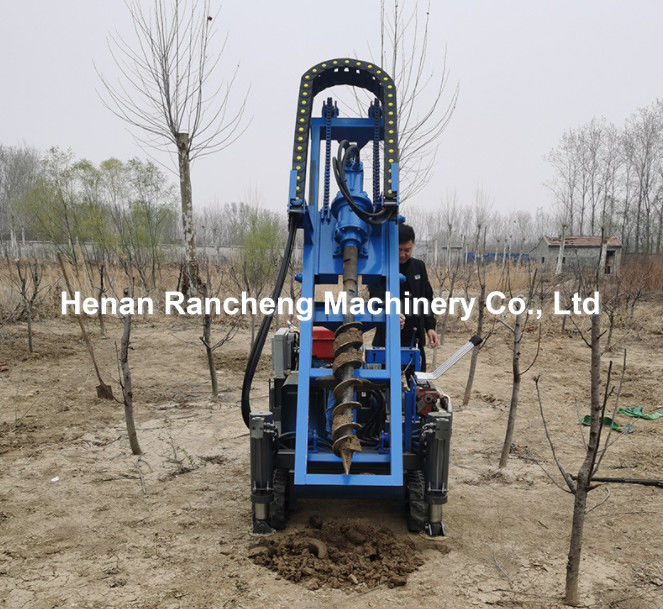

Product Image
