RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling

RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling

DTH Drilling Micro Pile Rig

400mm Bore Diameter Micro Pile Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC130Y

Contact Us
Request A Quote
Product Details
Model:
Micro Solar Auger Pile Rig
Name:
RC130Y
Weight:
4360kg
Dimension(L*W*H):
4460*1950*2460(mm)
Bore Diameter(screw):
Max 400mm
Max Depth:
30m
Highlight:

DTH Drilling Micro Pile Rig

,

400mm Bore Diameter Micro Pile Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling

Machine introduction



The RC130Y hydraulic down-the-hole (DTH) drilling rig delivers exceptional performance with low energy consumption and high efficiency, making it a great choice for both transportation and on-site construction. Equipped with full hydraulic control and a renowned hydraulic system, it ensures smooth operation and stable performance in a wide range of working conditions.



Its rotary system features an innovative dual-motor turret design, providing strong rotary torque output for improved efficiency and high-quality drilling, especially in large hole projects for open-air blasting. The RC130Y also excels in mobility and climbing capabilities, making it ideal for rugged terrain. Its fast and convenient hole displacement effectively meets the challenges of complex engineering environments.



Built with on-site needs in mind, the RC130Y offers superior adaptability and stability. Its advanced hydraulic control system ensures ease of use and dependable performance in various conditions. The dual-motor turret design not only increases rotational torque but also boosts operational efficiency. With excellent mobility and climbing abilities, the RC130Y is well-suited for challenging terrains, ensuring smoother and more efficient construction operations on-site.



Technical Parameters

Wind pressure(Mpa) 1.2--2.46
Air consumption(m³/min) 10--20
Drilling diameter(mm) 115---150
Drilling depth(m) down 62m
Once promotion distance(mm) 3000
Drill diameter(mm) 76
Skid compensation(mm) 1200
Maximum lift force(N) 26000
Guide shell lutting(°) up and down total 100
Guide shell swing angle(°) Left and right total 100
Boom lift angle(°) up and down total 70
Boom swing angle(°) 70
Grade ability(°) 30
Chassis ground clearance(mm) 300
Travelling speed(Km/h) 0-2.5
Back to the transit speed(r/min) 0--90
Rotary torque(N.m) 3100
Host Power(kW) 56
For rock 6---20
Total Weight(kg) 4800
Dimension (L * W * H) 5270*1950*2400


Advantages


The RC130Y hydraulic DTH drilling rig is equipped with outstanding features, including a hydraulic motor that delivers high torque at low speeds, enhancing both performance and stability. Its cylinder propulsion system improves overall efficiency and stability, while the two-stage air filter maintains air quality and prolongs the lifespan of the diesel engine. The rig also features a multi-valve control system, allowing for easy operation and automatic monitoring of hydraulic and propulsion pressures.



The RC130Y also includes a crawler tensioning device for reliable operation and a spotlight for convenient night-time work and maintenance. Its compact structure ensures safe and efficient performance across various rugged terrains. Designed for drilling diameters of 105-165mm, the rig offers high operational efficiency, easy maintenance, and reliable performance in demanding environments.





Pictures

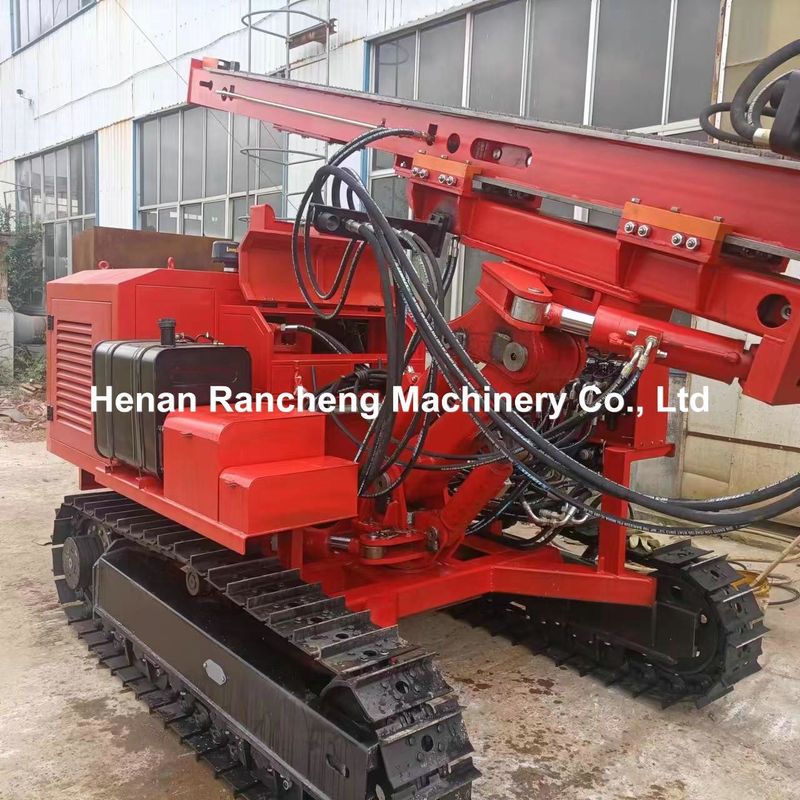

 RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling 0

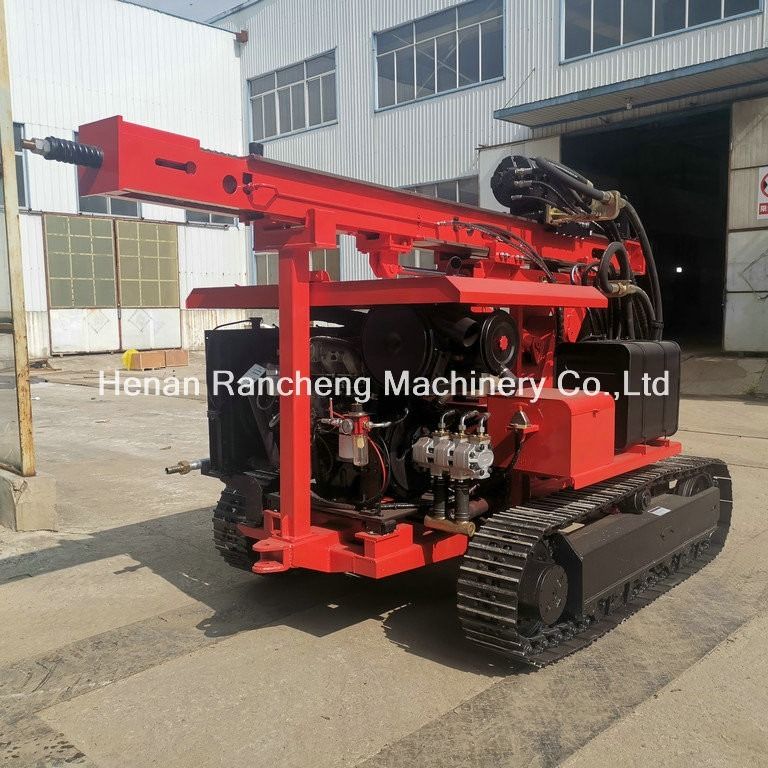

RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling 1

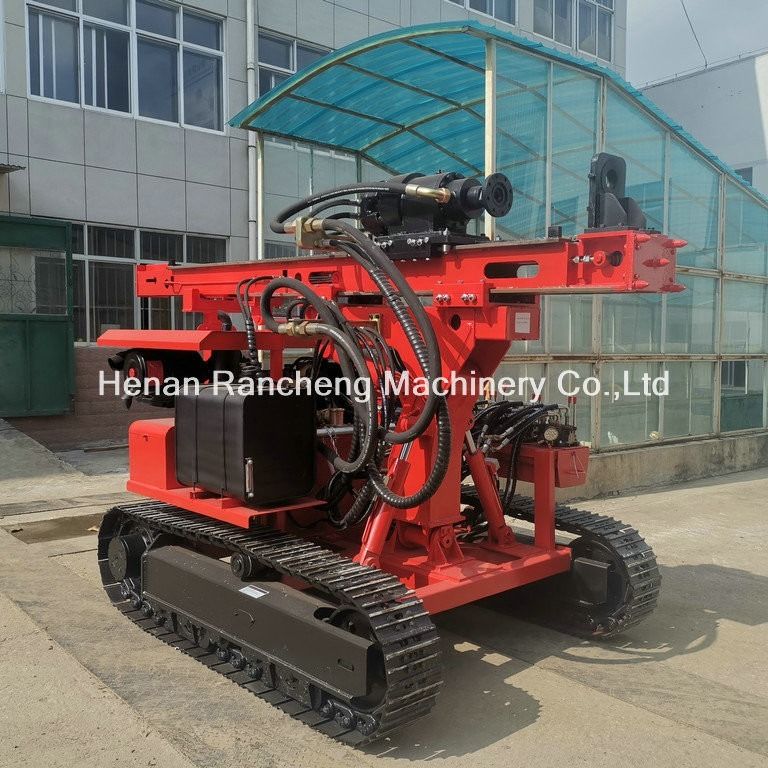

RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling 2

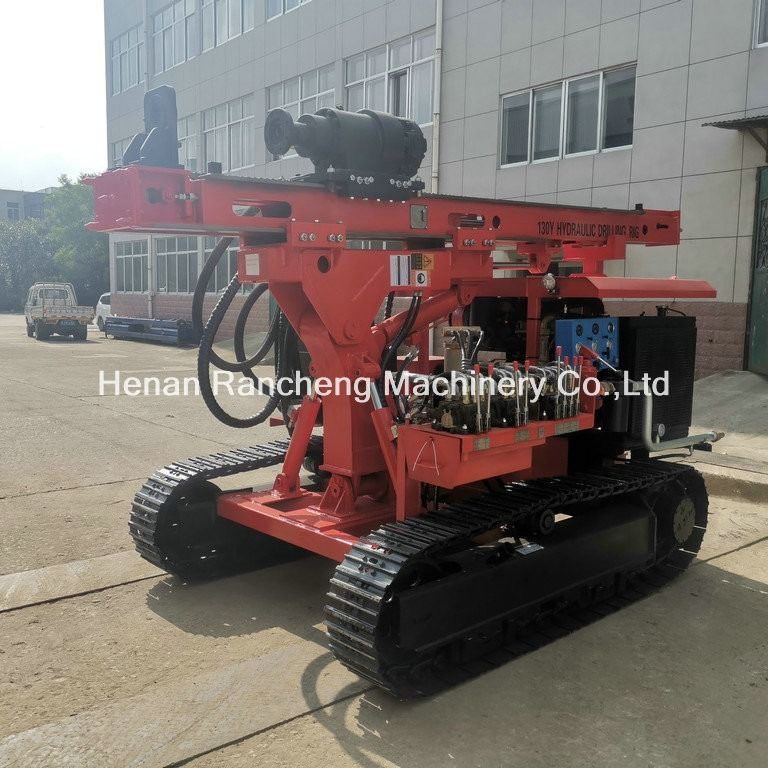

RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling 3

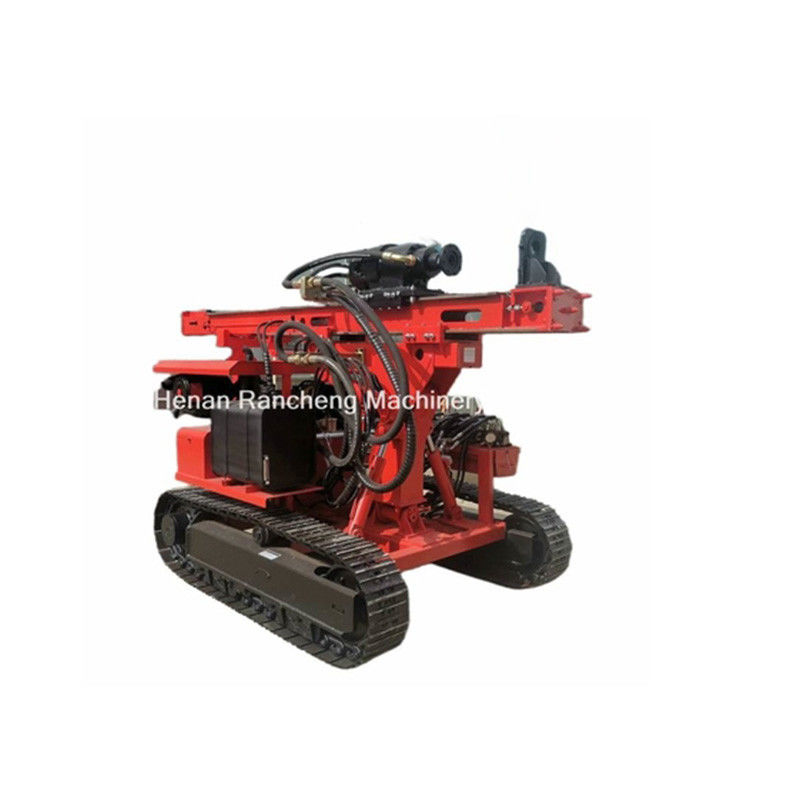

RC130Y Micro Pile Rig 400mm Bore Diameter Water Well Auger Pile DTH Drilling 4
