Multi-Functional 30m Solar Pile Driver / Hydraulic Pile Driver for Piling Anchor

Multi-Functional 30m Solar Pile Driver / Hydraulic Pile Driver for Piling Anchor

Piling Anchor Solar Pile Driver

Hydraulic Solar Pile Driver

30m Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC185Y

Contact Us
Request A Quote
Product Details
Name:
Hydraulic Solar Pile Driver
Model:
RC185Y
Bore Diameter:
90-300mm
Bore Depth:
20-100mm
Air Consumption:
10-26m³/min
Dimension:
5300*1970*2620mm
Weight:
5800kg
Host Power:
84kw
Highlight:

Piling Anchor Solar Pile Driver

,

Hydraulic Solar Pile Driver

,

30m Solar Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Multi-Functional 30m Solar Pile Driver/ Hydraulic Pile Driver for Piling Anchor



Machine Description



RC185Y is one multi-functional drilling rig, top head driving, has different drilling ways, such as mud pump rotary drilling, air DTH drilling, auger pile drilling, solar pile installation, PV solar pile ground screwing, etc, widely used in many different projects.

This hydraulic pile driver uses a new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.



RC185Y hydraulic micro pile driver is a versatile tool that offers exceptional performance and durability. This machine is specifically designed for construction sites that require precision and efficiency, making it an ideal choice for a range of applications.



Application:



This hydraulic borehole drilling rig is widely used in water well drilling, solar pile installation, auger piling foundation, geotechnical engineering foundation, blast hole drilling construction, etc.



Machine Specifications



Bore diameter(hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min
Air pressure 0.7-1.6Mpa(medium)
1.6-2.46Mpa(high)
Pipe diameter 76mm/89mm
For rock F=6-20
Bore diameter(screw) Max 400mm
Bore depth 0-30m
Screw pipe diameter 130-400mm
Once promotion 3200mm
Skid pitch 120º
The swinging angle of the drilling boom Left and right total 50º
The swinging angle of the skid Left and right total 40º
Rotation speed 0-110r/min
Host power 84Kw
Climb ability 35º
Dimension(L*W*H) 5300*1970*2620mm
weight 5800Kg
Walk speed 0-2.5km/h



Machine Advantages



1. Compact design: RC185Y has a small size and light weight, making it easy to transport and operate in narrow spaces. It's perfect for both indoor and outdoor applications, and can easily navigate through tight spaces and rough terrain.


2. High performance: Despite its compact size, RC185Y has a powerful engine that delivers high torque and speed. This allows the machine to drive piles quickly and accurately, reducing the time and effort required for construction projects.


3. Ease of use: RC185Y is user-friendly and intuitive, with simple and easy-to-understand controls that anyone can operate. The machine also features an ergonomic design that minimizes operator fatigue and maximizes productivity.

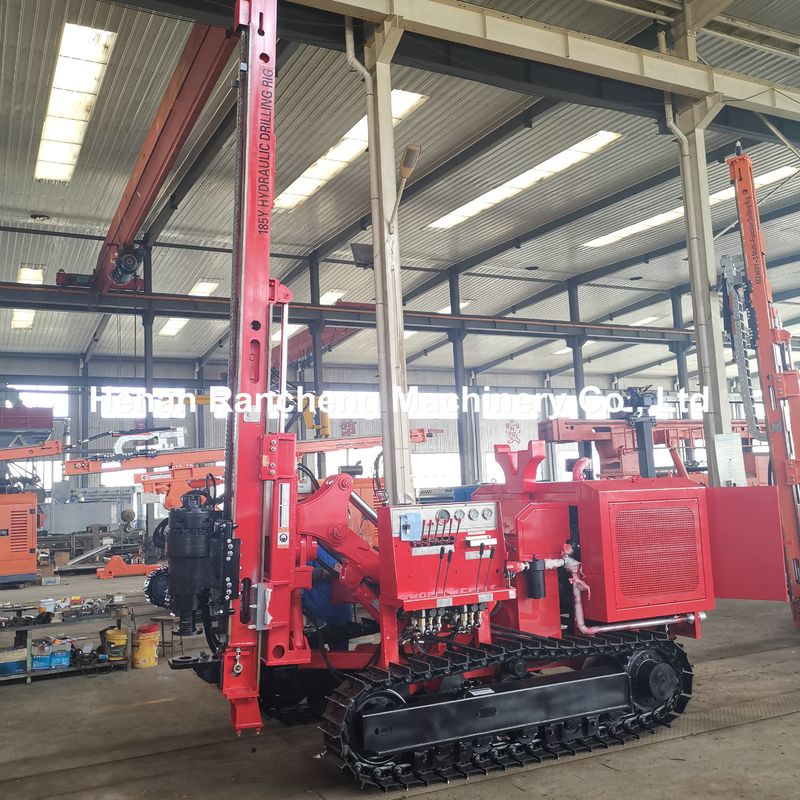

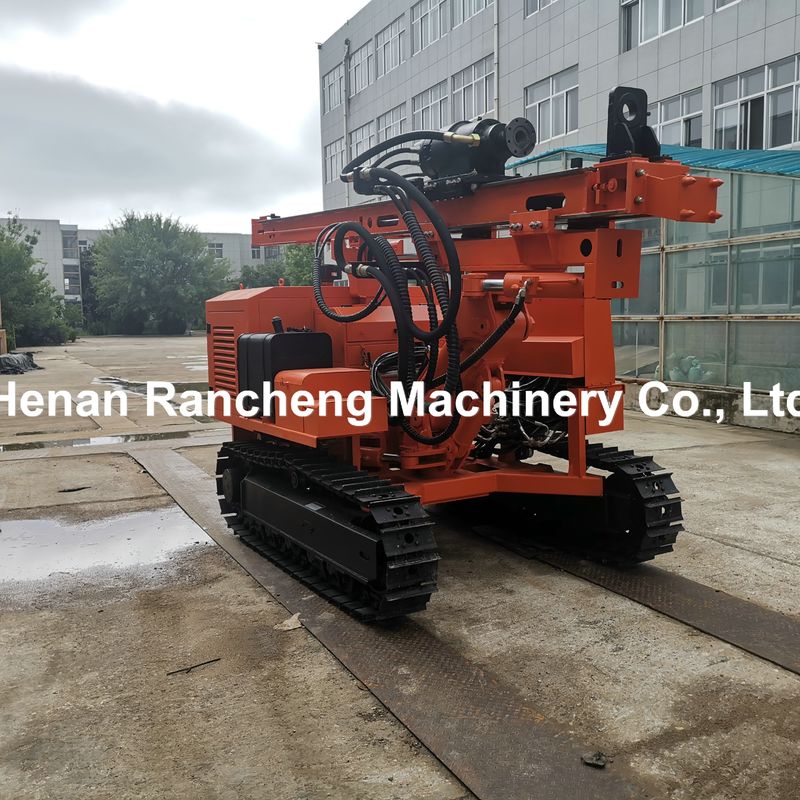

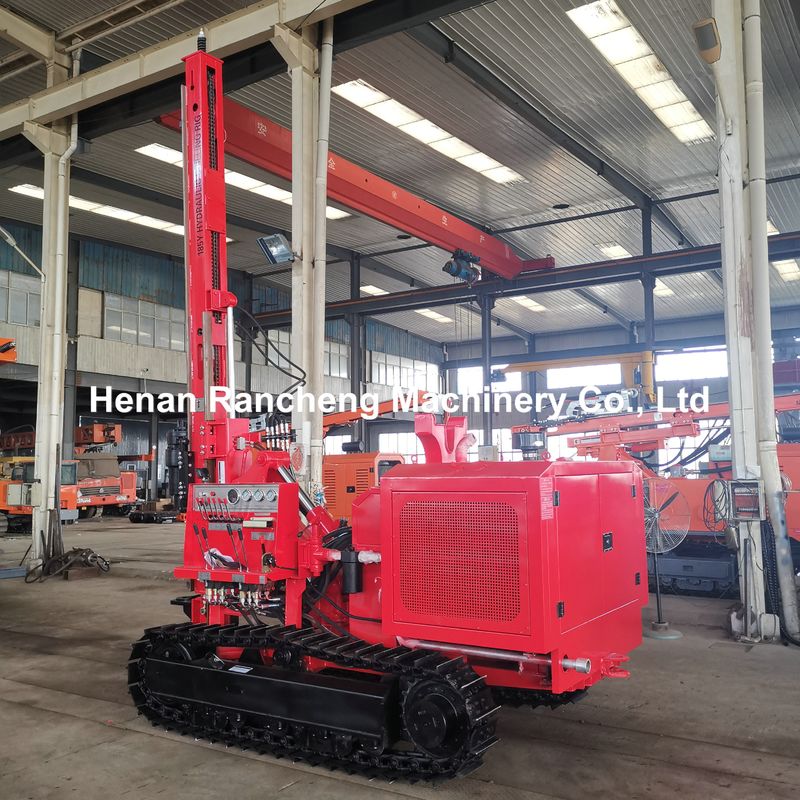

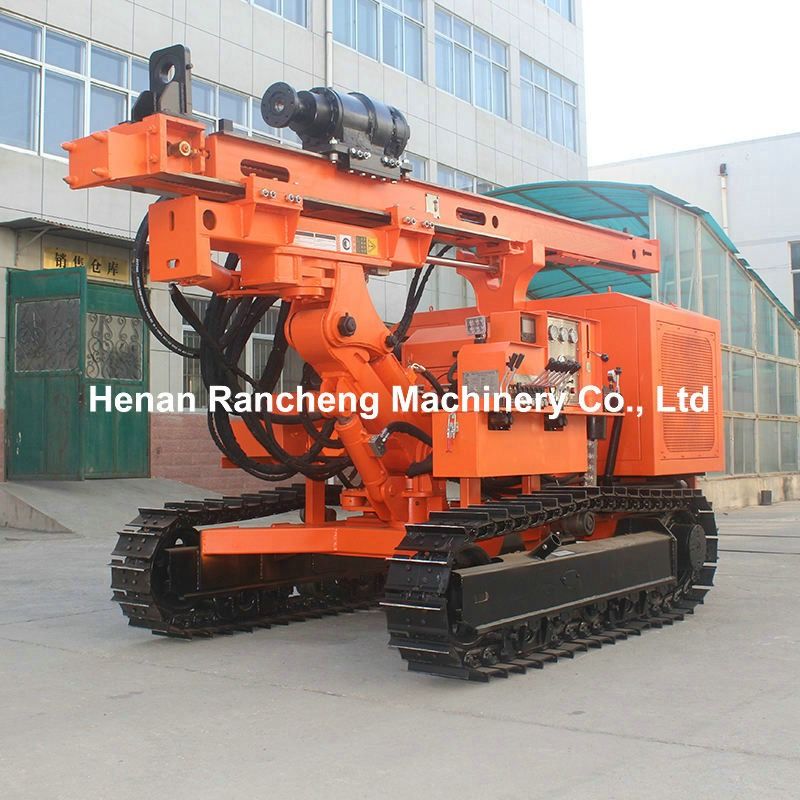

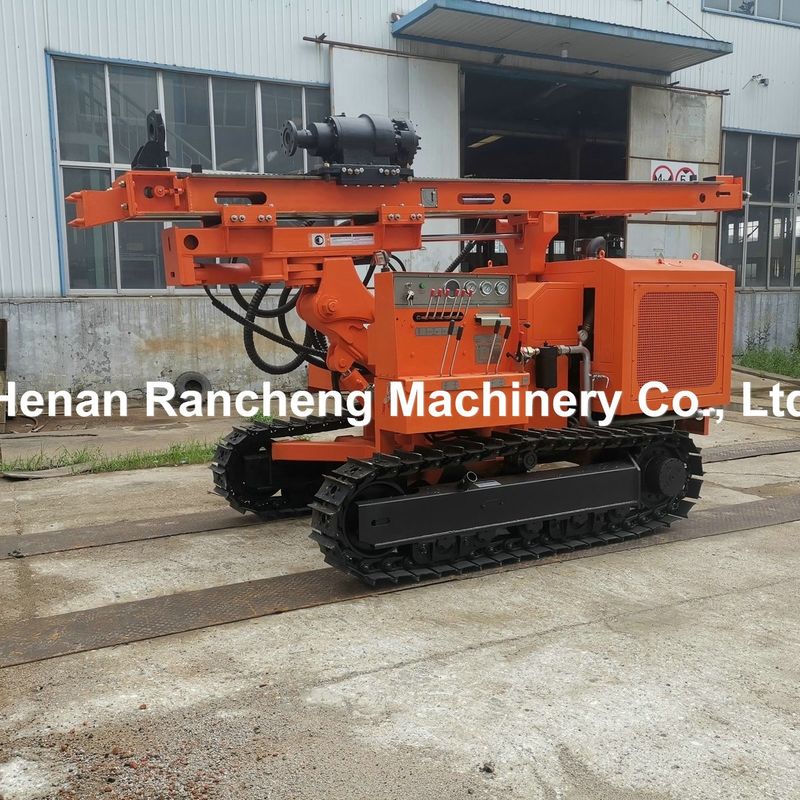

Machine Pictures



Multi-Functional 30m Solar Pile Driver / Hydraulic Pile Driver for Piling Anchor 0

Multi-Functional 30m Solar Pile Driver / Hydraulic Pile Driver for Piling Anchor 1Multi-Functional 30m Solar Pile Driver / Hydraulic Pile Driver for Piling Anchor 2Multi-Functional 30m Solar Pile Driver / Hydraulic Pile Driver for Piling Anchor 3
