1.2T 30m 30HP Engine Power Crawler Solar Pile Drive With 4 Hydraulic Legs

1.2T 30m 30HP Engine Power Crawler Solar Pile Drive With 4 Hydraulic Legs

Product Description

The RCKM-30S crawler pneumatic pile driver is a multi-purpose machine designed for applications such as solar piling, road fencing and micro piling. It is capable of solar auger drilling, pipe auger drilling and bottom drilling, making it a versatile solution for a variety of construction needs.

The pile driver is driven by a 30-horsepower diesel engine and adopts a hydromechanical transmission, which is highly efficient and easy to operate. The machine supports multi-angle high-precision piling, is sturdy and durable, saves time and effort, and is particularly suitable for field engineering construction projects.

This small hydraulic ground auger is suitable for solar power generation projects and is equipped with a crawler walking device and advanced hydraulic motor technology. Its excellent maneuverability enables it to operate in harsh environments such as swamps, wetlands and ditches. The vehicle uses a brand engine with strong power, reliable performance, and can operate stably for a long time. The overall structure is sturdy, and the thickened steel plate and secondary welding technology are used to ensure the stability of the vehicle and prevent the vehicle from moving or tilting during operation. This improves the safety performance of the machine in construction tasks.

RCKM-30S is particularly suitable for various projects, including high-speed rail contact network support piles, slope protection piles, solar photovoltaic power station foundation support piles, power grid transformation, civil engineering, new rural construction, municipal engineering and land use planning. It is compatible with various geological conditions, including soil layers, clay layers, filling layers, dust layers, silt layers, sand and pebble layers, thus adapting to various environments.

Product Specifications



Product Features

1. The drilling depth can reach 30m, and the drilling diameter is 50-300mm.

2. The drilling angle is adjustable from 45° to 90°, which is easy to operate and has high drilling efficiency.

3. Advanced hydraulic system, excellent hydraulic components, and long service life of the hydraulic system.

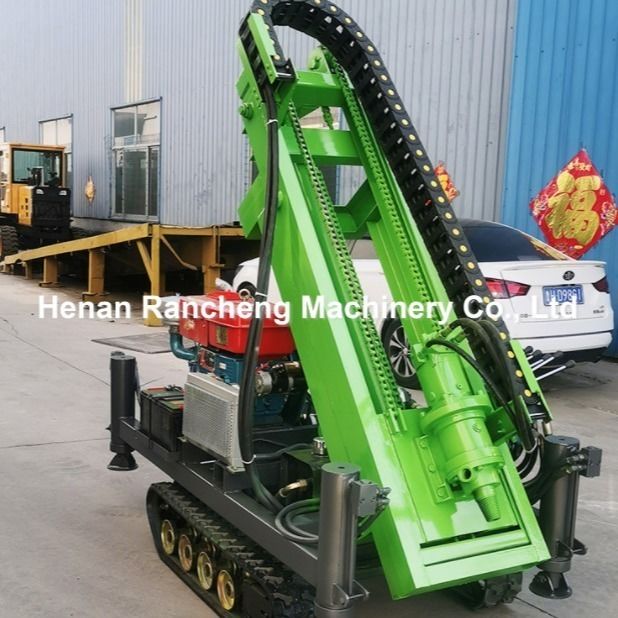

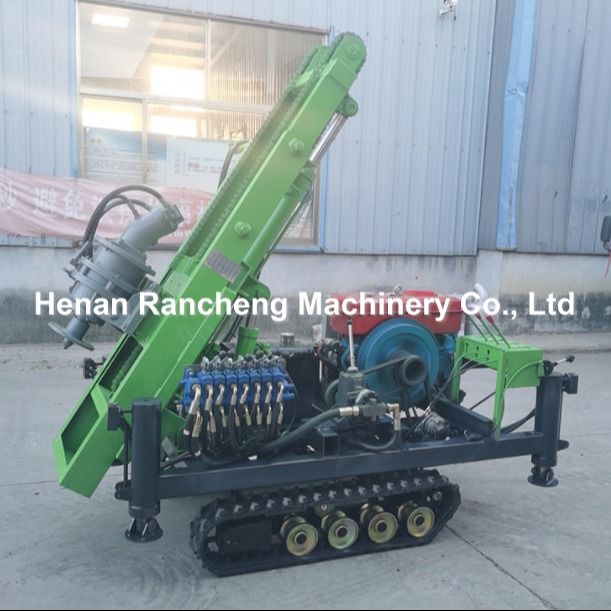

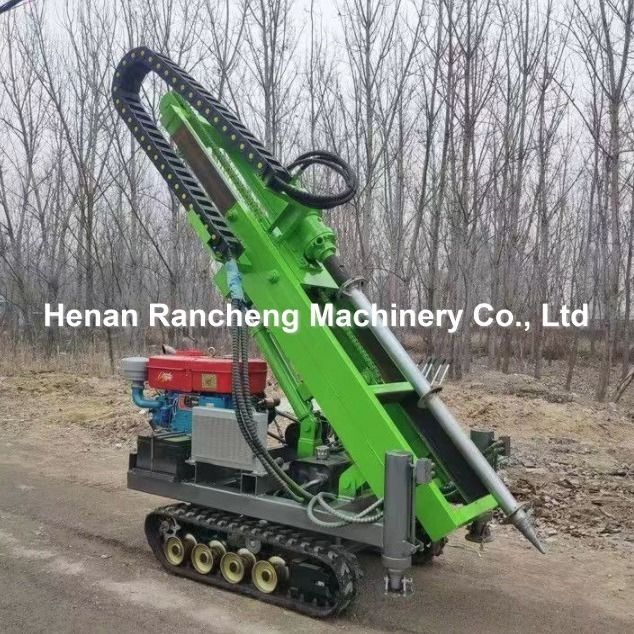

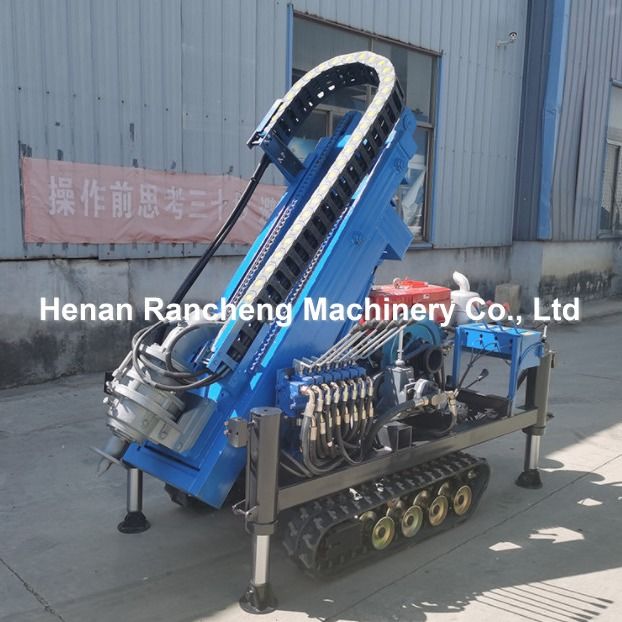

Product Image
