Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig

Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig

Photovoltaic Pile Drilling Rig

Solar Photovoltaic Pile Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC185Y

Contact Us
Request A Quote
Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig
Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig
Product Details
Name:
Hydraulic Solar Pile Driver
Model:
RC185Y
Bore Diameter:
90-300mm
Bore Depth:
20-100mm
Air Consumption:
10-26m³/min
Dimension:
5300*1970*2620mm
Weight:
5800kg
Host Power:
84kw
Highlight:

Photovoltaic Pile Drilling Rig

,

Solar Photovoltaic Pile Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe online Video

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price
Good price RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine online Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price
Good price Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System online Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Contact Us
Contact Now
Product Description

Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig



Machine Description



The RC185Y photovoltaic drilling rig, also known as a solar pile driver or PV pile driving machine is a versatile, multi-functional rig designed for the efficient and precise installation of support piles in solar photovoltaic (PV) systems. It is commonly used in solar PV installations, ground-mounted PV systems, solar farms, and photovoltaic power station construction.



This rig is capable of drilling holes with an impactor, using a spiral drill rod, and driving screw photovoltaic ground piles. Its high efficiency, large torque, wide drilling apertures, and strong durability make it an suitable for photovoltaic construction projects.



Application:



This hydraulic borehole drilling rig is widely used in water well drilling, solar pile installation, auger piling foundation, geotechnical engineering foundation, blast hole drilling construction, etc.



Machine Specifications



Bore diameter(hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min
Air pressure 0.7-1.6Mpa(medium)
1.6-2.46Mpa(high)
Pipe diameter 76mm/89mm
For rock F=6-20
Bore diameter(screw) Max 400mm
Bore depth 0-30m
Screw pipe diameter 130-400mm
Once promotion 3200mm
Skid pitch 120º
The swinging angle of the drilling boom Left and right total 50º
The swinging angle of the skid Left and right total 40º
Rotation speed 0-110r/min
Host power 84Kw
Climb ability 35º
Dimension(L*W*H) 5300*1970*2620mm
weight 5800Kg
Walk speed 0-2.5km/h



Machine Advantages



1. It walks powerfully and can drag the air compressor uphill easily.


2. Humanized integrated operation platform, easy to use and operate.


3. The cover is well-designed and has a beautiful appearance and is easy to maintain.


4. The dual-motor rotary power head has a compact structure, double hydraulic speed, a wide range of hole diameters, and is easy to use when the drill gets stuck.

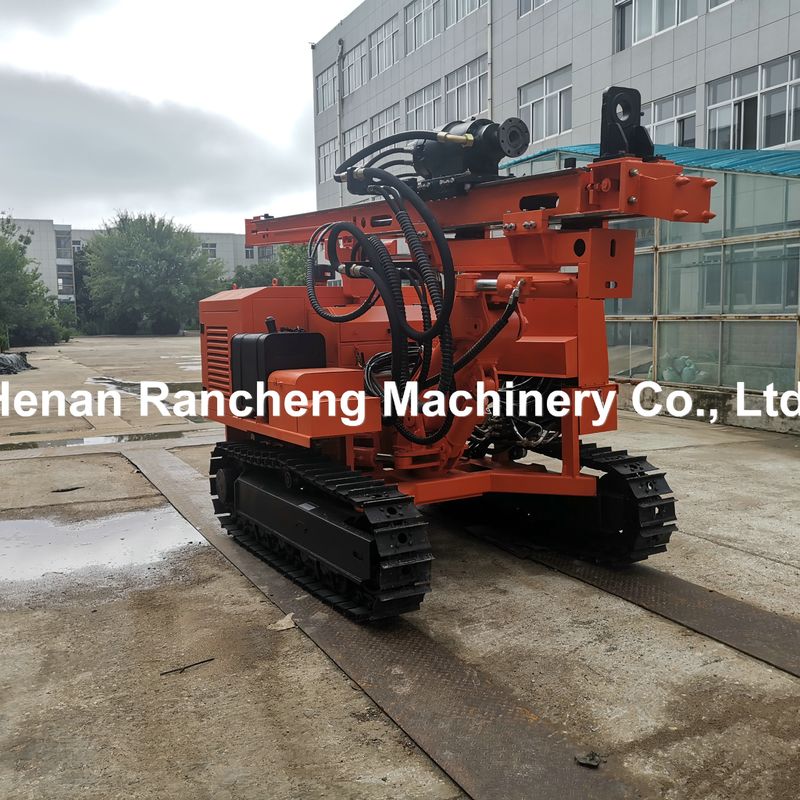

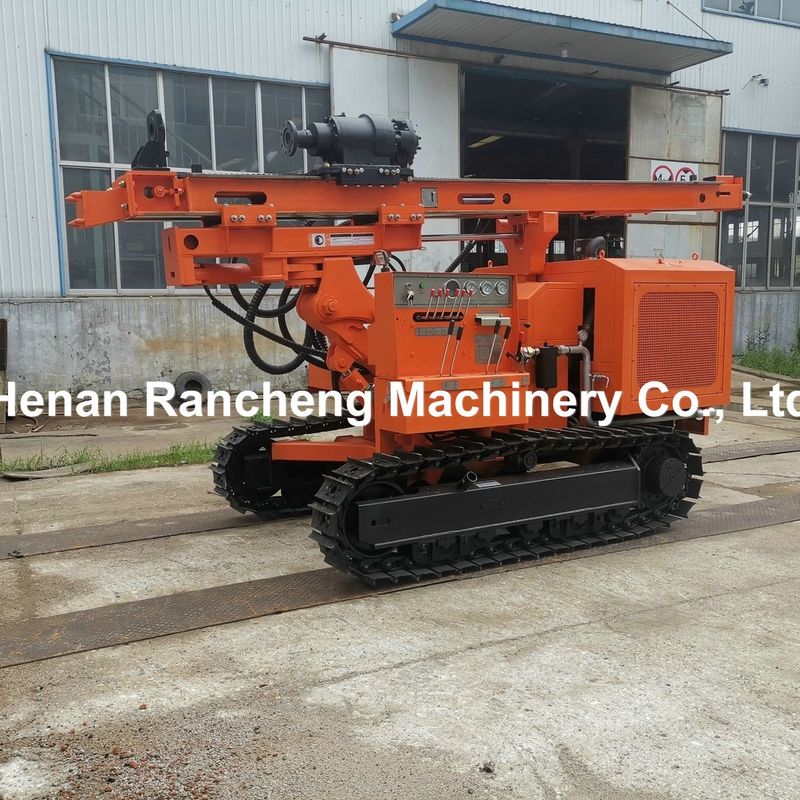

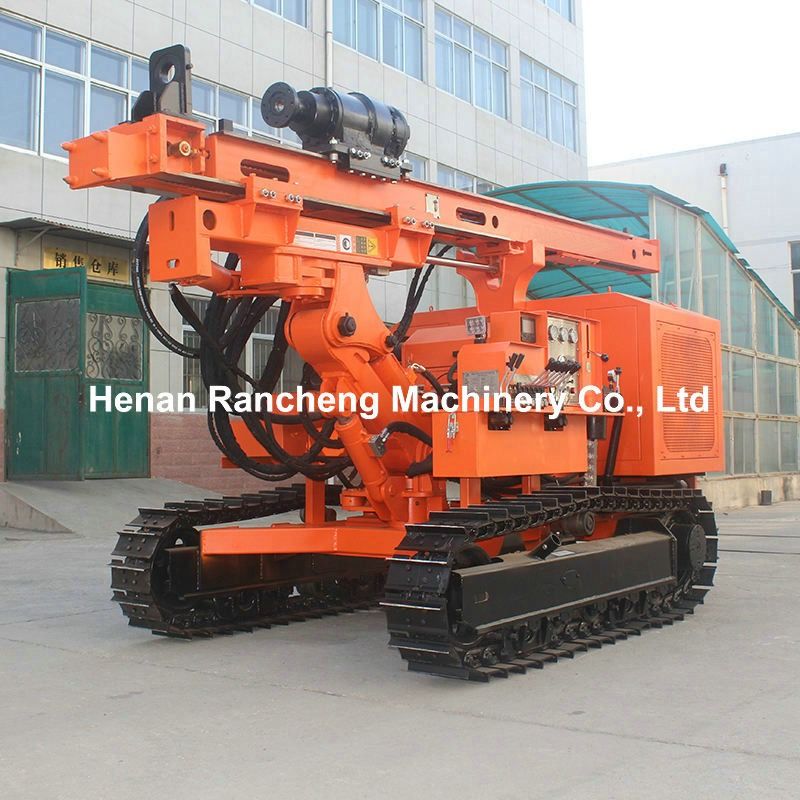

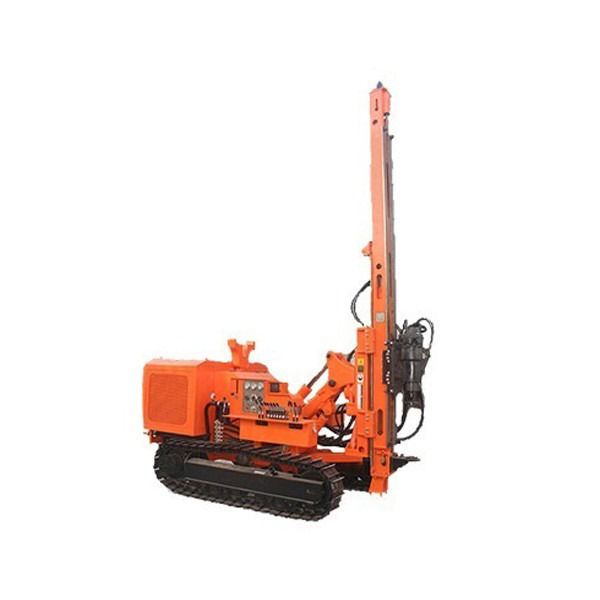

Machine Pictures



Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig 0

Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig 1Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig 2Fast Drilling Speed DTH Drill Machine Professional Solar Photovoltaic Pile Drilling Rig 3
