Name: Small Mini Solar Pile Driver With Rotary Motor For Solar Project
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RC130Y
Availability: InStock

Home > products > Solar Pile Driver >

Small Mini Solar Pile Driver With Rotary Motor For Solar Project

Mini Solar Pile Driver

Small Solar Pile Driver

Rotary Motor Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC130Y

Request A Quote

Product Details

Model:

Micro Solar Auger Pile Rig

Name:

RC130Y

Weight:

4360kg

Dimension(L*W*H):

4460*1950*2460(mm)

Bore Diameter(screw):

Max 400mm

Max Depth:

30m

Highlight:

Mini Solar Pile Driver

Small Solar Pile Driver

Rotary Motor Solar Pile Driver

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

Good Quality Small Mini Solar Pile Driver With Rotary Motor For Solar Project

Machine introduction

The RC130Y crawler hydraulic solar pile driver adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on.

Technical Parameters

Wind pressure(Mpa)	1.2--2.46
Air consumption(m³/min)	10--20
Drilling diameter(mm)	115---150
Drilling depth(m)	down 62m
Once promotion distance(mm)	3000
Drill diameter(mm)	76
Skid compensation(mm)	1200
Maximum lift force(N)	26000
Guide shell lutting(°)	up and down total 100
Guide shell swing angle(°)	Left and right total 100
Boom lift angle(°)	up and down total 70
Boom swing angle(°)	70
Grade ability(°)	30
Chassis ground clearance(mm)	300
Travelling speed(Km/h)	0-2.5
Back to the transit speed(r/min)	0--90
Rotary torque(N.m)	3100
Host Power(kW)	56
For rock	6---20
Total Weight(kg)	4800
Dimension (L * W * H)	527019502400

Advantages

1.Drill maximum 3m long ground screw piles.

2.Drill 130-400mm diameter auger spiral soil holes.

3.Drill 90-350mm diameter DTH stone rocky ground holes .

4.Working on flat ground or maximum 15 degree slope ground

5.the pile driver hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment;

Pictures

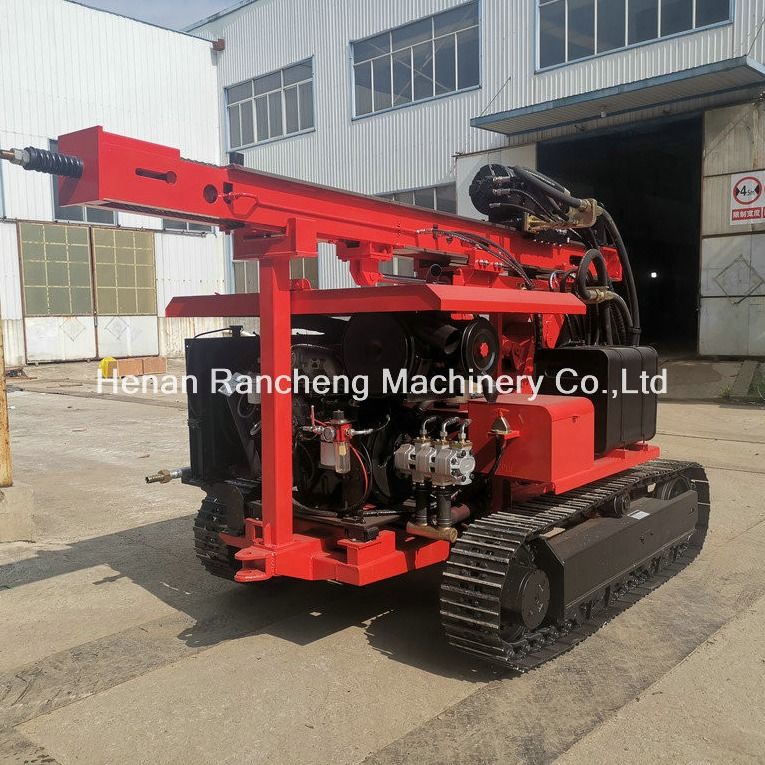

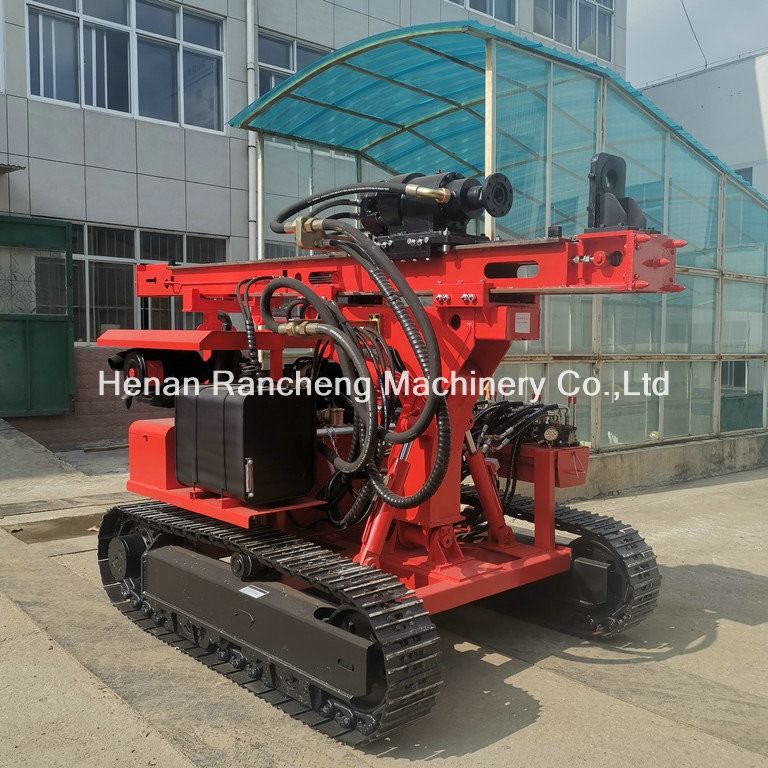

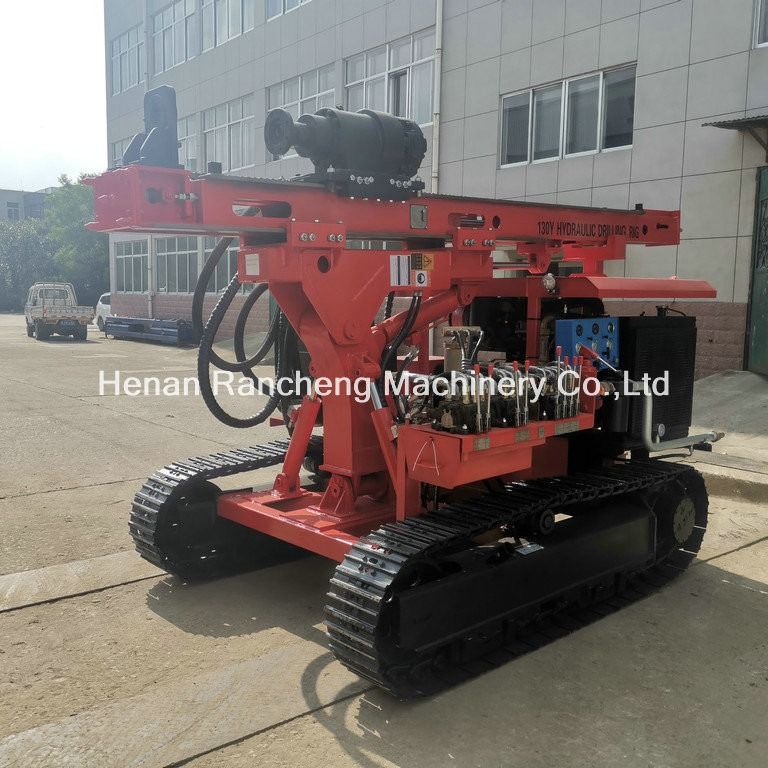

Small Mini Solar Pile Driver With Rotary Motor For Solar Project 0

Small Mini Solar Pile Driver With Rotary Motor For Solar Project 4
