DTH Drilling Rig 300m Bore Depth Crawler Mounted Machine With 85KW Engine

DTH Drilling Rig 300m Bore Depth Crawler Mounted Machine With 85KW Engine

300m Bore Depth DTH Drilling Rig

Crawler Mounted DTH Drilling Rig

85KW DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF300C

Contact Us
Request A Quote
Product Details
Name:
Crawler Type Water Well Drilling Rig
Model:
RCF300C
Rotary Speed:
40-70r/min
Hoisting Force Of Winch:
2T
Mud Pump:
450L/min(option)
Highlight:

300m Bore Depth DTH Drilling Rig

,

Crawler Mounted DTH Drilling Rig

,

85KW DTH Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

DTH Drilling Rig 300m Bore Depth Crawler Mounted Machine with 85KW Engine



Product Description



The RCF300C hydraulic crawler-mounted deepwater drilling machine is designed for drilling up to 300 meters. It utilizes advanced hydraulic technology with a top head drive system, providing large rotary torque for efficient drilling. Its compact structure and adjustable mast with compensation function ensure stability during operations, as the mast supports the ground while drilling, maintaining borehole stability.



Application


This deep well drilling rig is mainly used for irrigation well drilling, home water well drilling, geothermal well drilling, hydrology wells drilling, civil use water well drilling, industry well drilling, etc projects



Technical Parameters



Model RCF300C
Bore diameter(Hammer) 100-350mm
Bore depth 300m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4200×2200×2600mm
Weight 7200Kg
Diesel engine 85KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling







Advantages



1, High efficiency

Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed, and short auxiliary time, so the operation efficiency is high.



2, Low cost

Air DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.



3, High outrigger

Four high hydraulic legs are convenient for loading and transportation, can be loaded directly without a crane.



4, Drilling Rig chassis

It adopts a Professional excavator chassis, with long service life, and it is very suitable for muddy field movement.



5, High configuration

The borehole drilling machine's main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.



6, Hydraulic oil pump

Parallel gearbox design separates the oil pump unit, the power
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;



7, Diesel engine

This hydraulic drilling rig uses an 85KW Yuchai engine


8.Lifting force

Design composite tower, 3.4m long-stroke, double cylinder lift capacity 18 tons.



Machine picture display

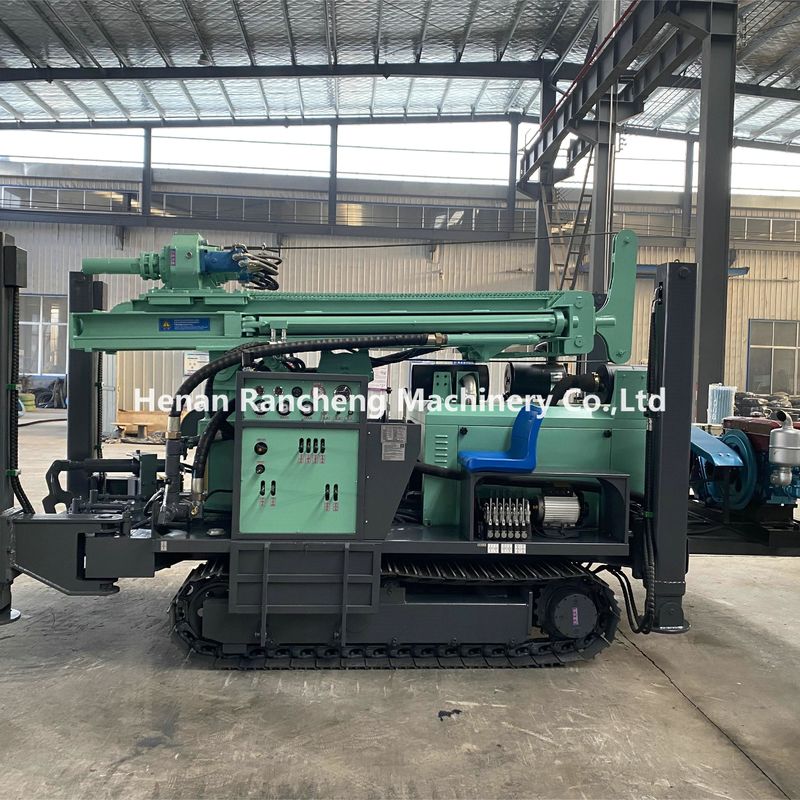

DTH Drilling Rig 300m Bore Depth  Crawler Mounted Machine With 85KW Engine 0DTH Drilling Rig 300m Bore Depth  Crawler Mounted Machine With 85KW Engine 1

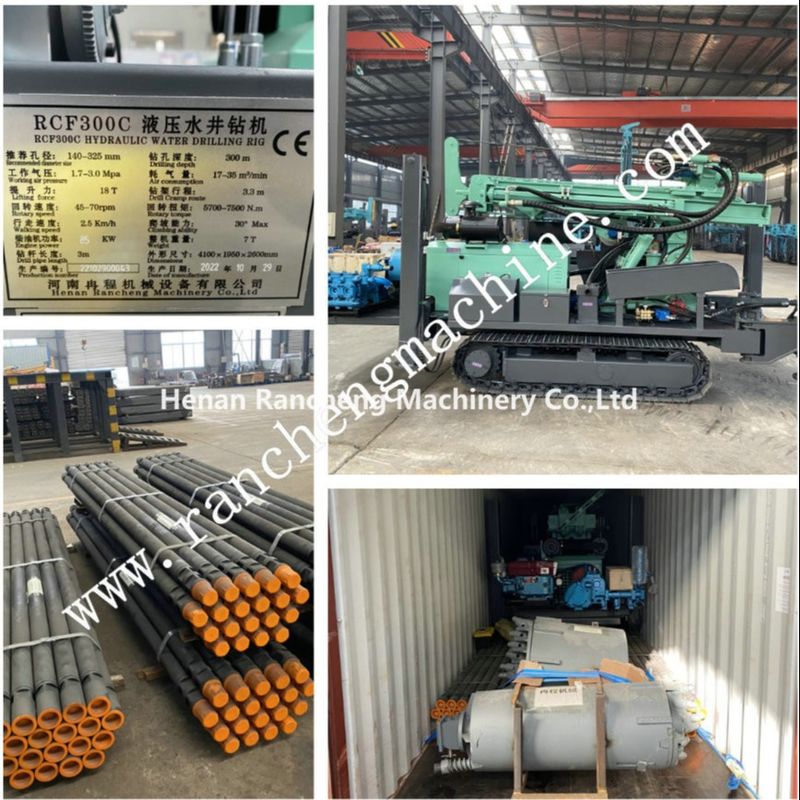

DTH Drilling Rig 300m Bore Depth  Crawler Mounted Machine With 85KW Engine 2

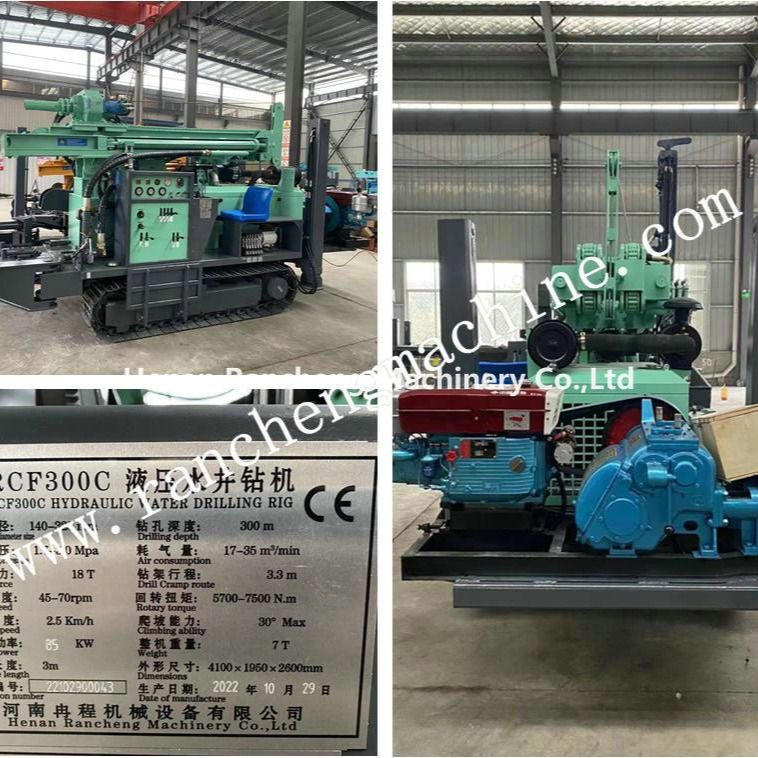

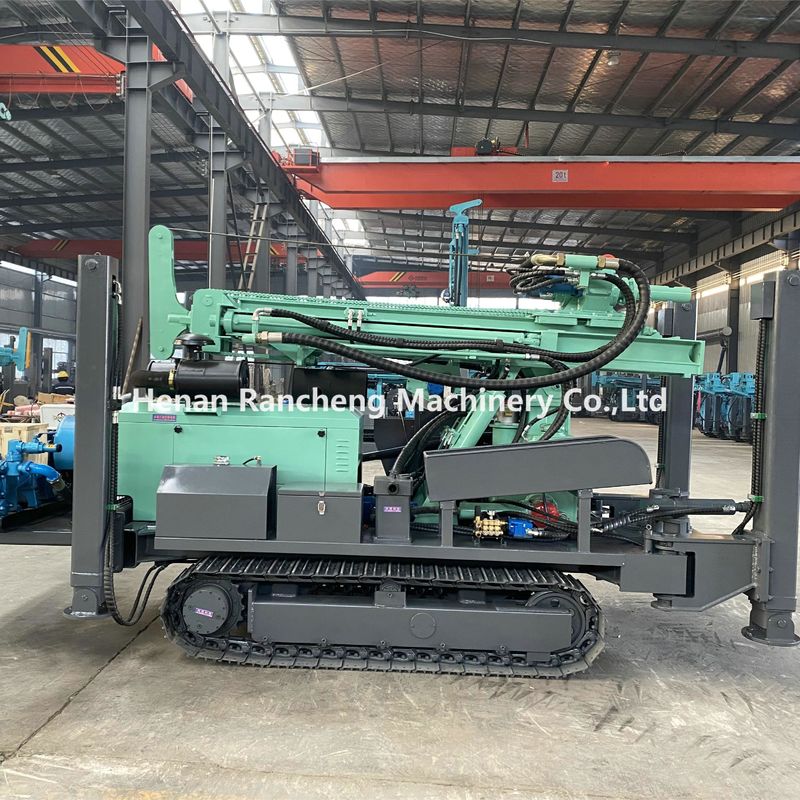

DTH Drilling Rig 300m Bore Depth  Crawler Mounted Machine With 85KW Engine 3
