Solar Pile Driver With 39KW Engine For 170 Cm Depth And 2.8T Vehicle Weight
Product Description
Introducing the RCH360W Bored Pile Equipment – the ultimate solution for your engineering project needs. This innovative machine is not just a load-bearing wheel pile driver; it also serves as a corrugated fence type drilling machine, making it a versatile addition to any construction site. With its three primary functions – punching, underground impact drilling, and column pulling – the RCH360W is designed to tackle a wide range of engineering challenges with ease.
One of the standout features of the RCH360W is its wheeled design, which allows for exceptional mobility across various terrains and construction conditions. Whether you’re working on a rugged landscape or a smooth urban site, this equipment can adapt seamlessly, ensuring that your project progresses without unnecessary delays. Its flexible driving performance means that operators can navigate tight spaces and challenging environments, making it an invaluable asset for any contractor.
Moreover, the RCH360W is engineered for simplicity and efficiency. Its user-friendly controls enable operators to quickly learn and master the machine, reducing training time and increasing productivity on the job site. With the ability to efficiently complete various engineering tasks, this bored pile equipment not only enhances operational efficiency but also contributes to the overall success of your projects.
In summary, the RCH360W Bored Pile Equipment is a powerful, adaptable, and easy-to-use solution for modern engineering projects. Whether you need to punch, drill, or pull columns, this machine is equipped to meet your demands and exceed your expectations. Invest in the RCH360W today and experience the difference in performance and reliability that it brings to your construction endeavors.
Product Specifications
| Model |
RCH360W |
| Working Dimension (mm) |
2900*2650*4200 |
| Transportation Dimension (mm) |
2900*2250*2550 |
| Wheelbase (mm) |
1950 |
| Vehicle Weight (Ton) |
2.8 |
| Engine Power (KW) |
39 |
| Flow Rate of Hydraulic System (L/min) |
90 |
| Hydraulic System Pressure (Mpa) |
20 |
| Mast stroke(mm) |
2300 |
| Piling Height (mm) |
2600 |
| Impact Power (J) |
1960 |
| Hydraulic Hammer Type |
YC360, Imported from South Korea |
| Piling efficiency (mm/min) |
2500 |
| Drilling Depth (m) |
1.7 |
| Drilling Diameter (mm) |
50-300 |
| Max. Climbing Ability (°/%) |
10°/ 17.6% |
| Max. Walking Speed (km/h) |
11 |
| Max traction speed (km/h) |
30 |
| Tire specifications |
7.0-9 |
| Left and Right Sliding Stroke (mm) |
≤400 |
| Max. Adjustment Angle of Sliding Guide Frame |
left 30 / right 8 |
| Front and Rear Adjustment Angle of Sliding Guide Frame |
Front 75 / Back 15 |
| Hydraulic Tank Capacity (L) |
80 |
| Diesel Tank Capacity (L) |
40 |
Product Features
The RCH360W is equipped with wheeled mobility, making it ideal for flat ground operations. However, for those challenging projects that require navigating rugged or muddy terrain, our crawler solar piling rig is the perfect companion. This dual capability ensures that no matter the conditions, you can rely on the RCH360W to deliver exceptional performance.
One of the standout features of the RCH360W is its flexible drive system. Primarily powered by robust diesel engines, this equipment can also be customized with alternative drive devices to cater to your specific construction needs. Whether you require enhanced power for heavy-duty tasks or a more eco-friendly option, the RCH360W adapts to your requirements seamlessly.
Ease of operation is at the forefront of the RCH360W’s design. We understand that efficiency is key on any job site, which is why this bored piling equipment is engineered with user-friendliness in mind. Its intuitive controls and human-centered design make it simple for operators of all skill levels to manage, reducing training time and increasing productivity.
In summary, the RCH360W Bored Piling Equipment is your go-to choice for reliable, adaptable, and easy-to-operate machinery. Whether you’re working on flat surfaces or tackling tough terrains, this equipment is built to meet the demands of modern construction projects. Elevate your operations with the RCH360W and experience the difference in performance and efficiency!

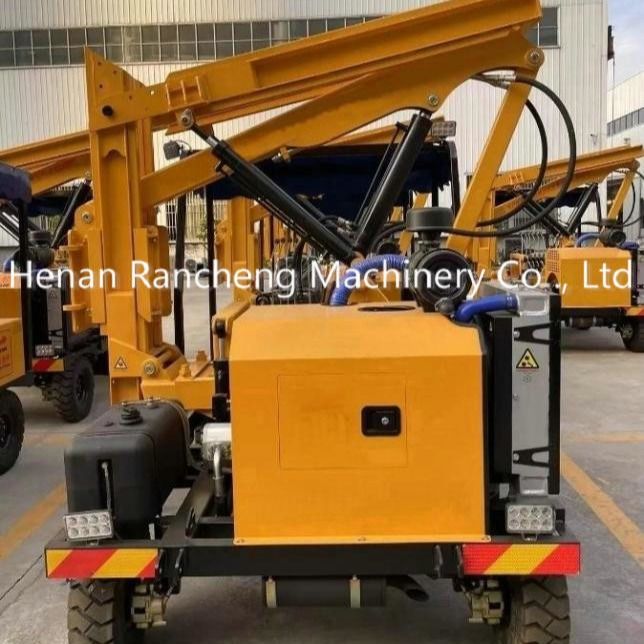

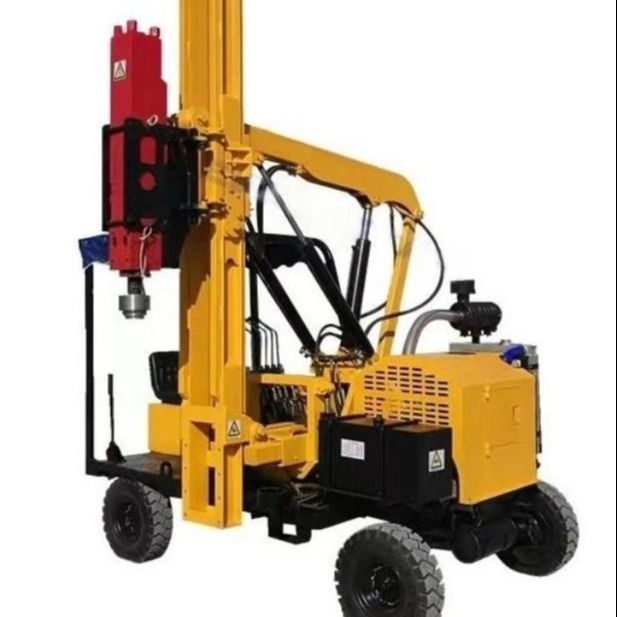

Product Image
