300m Deep Hydraulic Crawler Drilling Rig for 350mm Water Wells
Product Description
Introducing the RCF300C Crawler Water Well Drilling Rig – the pinnacle of advanced hydraulic technology designed for efficient and reliable water well drilling. Engineered for performance, this state-of-the-art rig is driven by a powerful head that delivers an impressive rotation torque ranging from 5700 to 7500 N·m, ensuring that you can tackle even the most challenging drilling tasks with ease.
The RCF300C features a compact structure that enhances maneuverability without compromising on stability. Its innovative mast design includes an adjustable compensation function, allowing for optimal support during the drilling process. This unique feature ensures that the mast is firmly anchored to the ground, significantly improving the rig’s stability and precision while drilling.
With a rotation speed of 40 to 70 r/min, the RCF300C is capable of achieving high drilling efficiency, making it an ideal choice for both small-scale and large-scale projects. Powered by an 85 kW Yuchai diesel engine, this drilling rig operates smoothly and reliably, providing the power needed to complete your drilling tasks effectively.
Whether you are working in remote locations or urban environments, the RCF300C Crawler Water Well Drilling Rig is designed to meet the demands of modern drilling operations. Its robust construction and advanced features make it a valuable asset for contractors, engineers, and water resource professionals alike.
Experience the future of water well drilling with the RCF300C – where cutting-edge technology meets unparalleled performance. Invest in a drilling rig that not only enhances productivity but also ensures the highest standards of safety and efficiency in every project.
Application
RCF300C Crawler Water Well Drilling Rig is mainly suitable for drilling projects such as irrigation wells, domestic water wells, geothermal wells, hydrological wells, civil water wells, industrial wells, etc.
Technical Parameters
| Model |
RCF300C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
300m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4200×2200×2600mm |
| Weight |
7200Kg |
| Diesel engine |
85KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
Advantages
1,it drill 300m depth ,100-350mm diameter.
2,it is hydraulic system operation ,easy to operate.
3,it is 85KW diesel engine ,convenient to use in the place without electricity.
4,Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools.

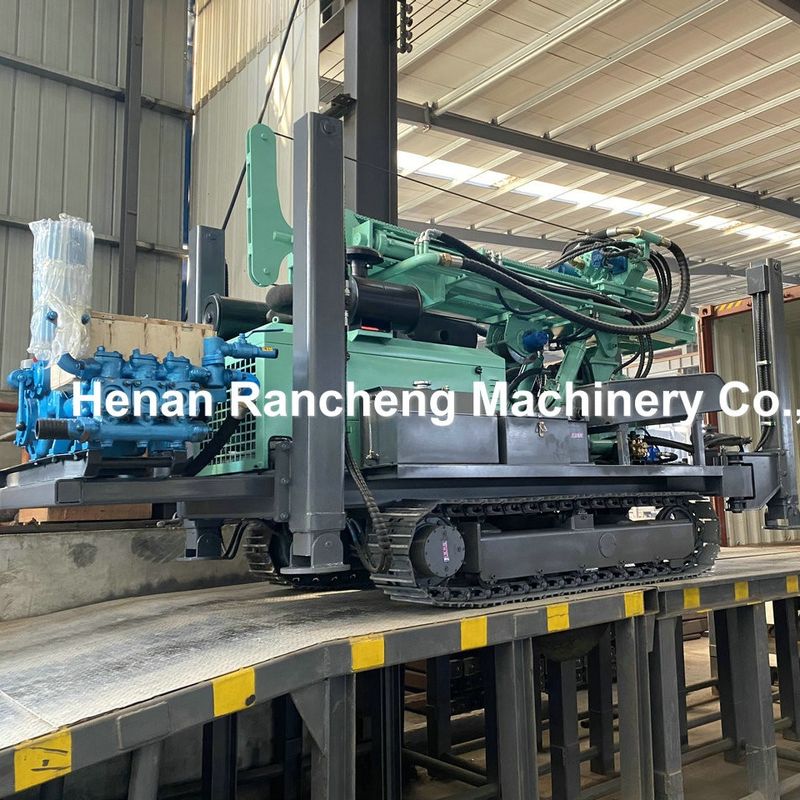

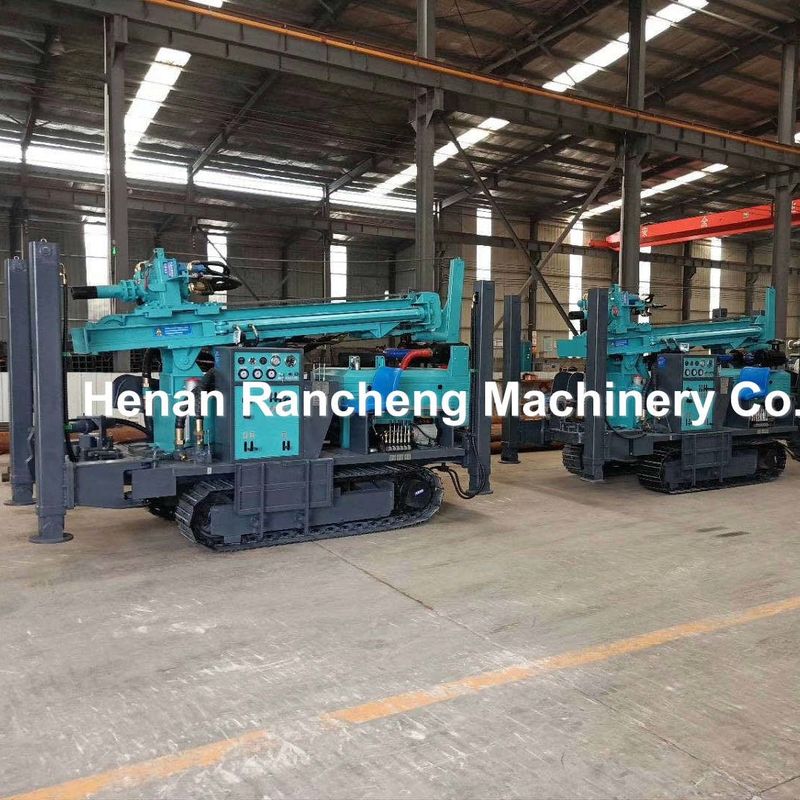

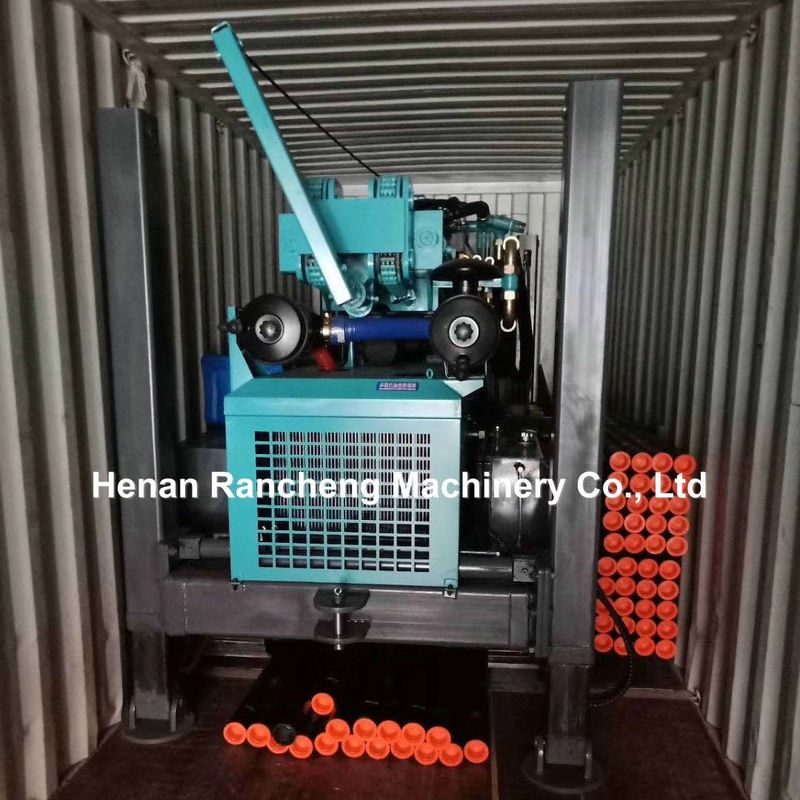

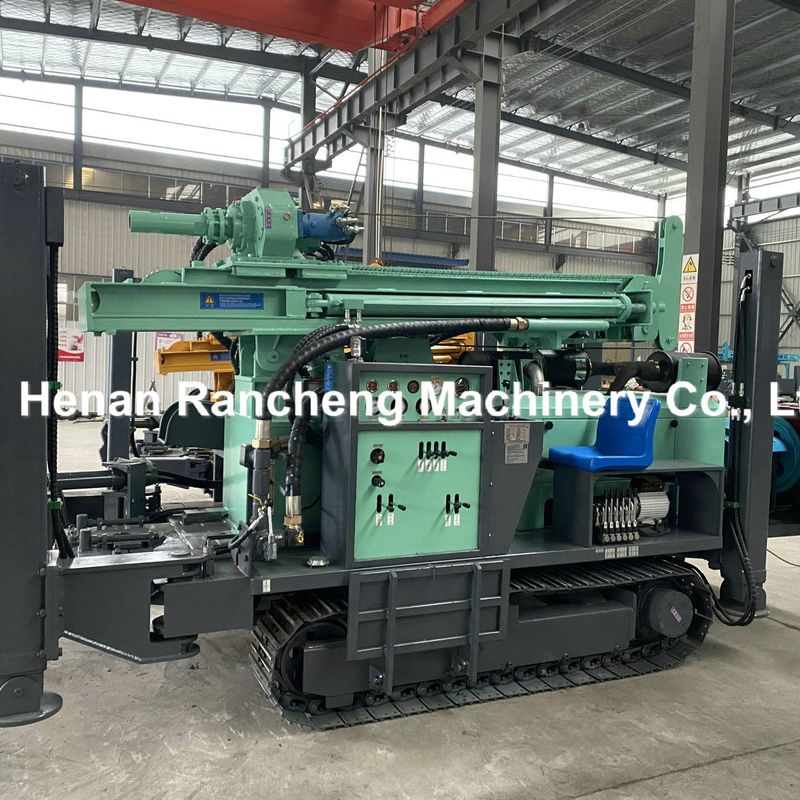

Machine picture display
