30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine

30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine

25HP Solar Pile Driver

Solar Pile Driver Equipment

30m Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Contact Us
Request A Quote
Product Details
Name:
Solar Pile Driver Equipment
Model:
RCKM-30S
Power:
25HP
Max Depth:
30m
Weight:
1200kg
Hydraulic Legs:
4
Highlight:

25HP Solar Pile Driver

,

Solar Pile Driver Equipment

,

30m Solar Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

2025 Hot Selling 30m Deep Solar Pile Driver Equipment With 25HP diesel engine

Product Description

The RCKM-30S Small Pile Driver Equipment is designed specifically for small pile projects, including photovoltaic solar pile drilling, soil nail pile drilling, earth screw pile drilling, ground auger pile drilling, and foundation mini pile drilling. This versatile machine is powered by a 25HP diesel engine and can drill to a maximum depth of 30 meters with a diameter range of 50-300mm.

The equipment features a rubber crawler mounted walking system, ensuring easy movement across various terrains. It is equipped with hydraulic mechanical transmission, providing efficient power delivery and smooth operation.

Ideal for on-site engineering projects, the RCKM-30S offers multi-angle piling, high precision, and strong durability. It is designed for efficiency, saving both time and labor, making it the perfect choice for small-scale pile driving projects. Its user-friendly design and strong adaptability ensure that operators can easily manage the machine in diverse working conditions, maximizing piling efficiency.

Product Specifications


ModelRCKM-30S
Rig weight1.2t
Dimensions (L×W×H)2300*1300*2200mm
Engine power25HP
Rotary head torque3500N.m
Hydraulic oil pumpSingle pump
hydraulic loading systemCylinder chain pressure
Hydraulic working pressure20Mpa
Way of walkingCrawler gearbox walking
Walking speed7-15km/h
cooling systemHydraulic cooler
Carriage travel distance2.8m
Piling height1-3m
Borehole diameter50-300mm
Borehole depth 1-30m
Air consumption6m3/min
Adapt to rock typesMedium hard rock ,F=8-12
Climbing ability35°
Hydraulic legs4


Product Features

1.This machine is capable of drilling up to 30 meters deep with a diameter range of 50-300 mm, making it suitable for various pile-driving tasks.

2.The drilling angle can be adjusted from 45° to 90°, providing flexibility for different drilling needs and ensuring efficient operation.

3. Featuring a high-quality hydraulic system and reliable components, this machine is built to last and offers excellent performance over time.

4. Equipped with a powerful hydraulic power head, it delivers fast drilling speeds and is capable of handling rock drilling with the included impactor.

5. Powered by a trusted single-cylinder diesel engine, it offers strong performance and ensures stable operation for extended periods.

6. Designed to move smoothly across a variety of challenging terrains without damaging the road surface, this machine provides excellent flexibility and maneuverability.

Product Image

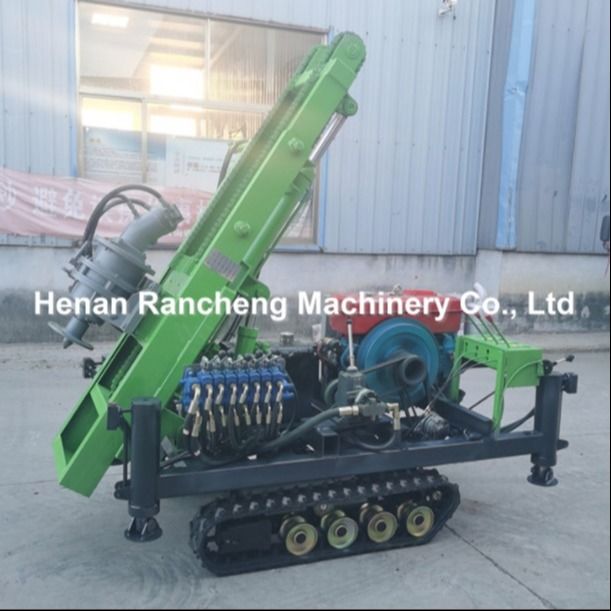

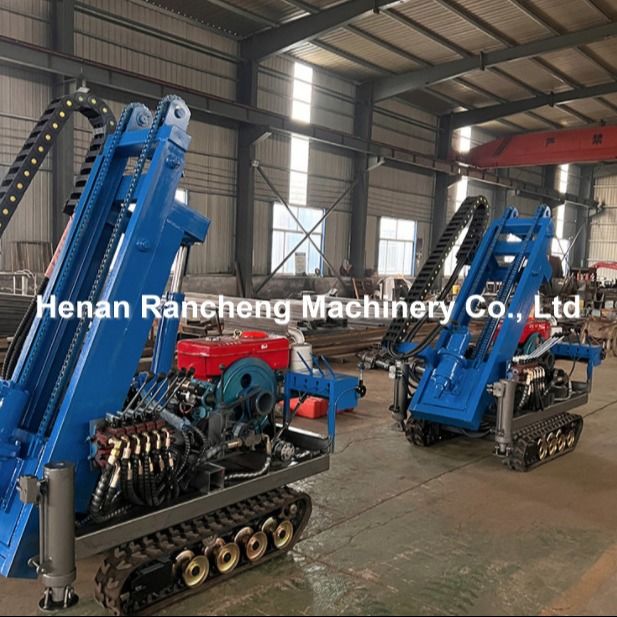

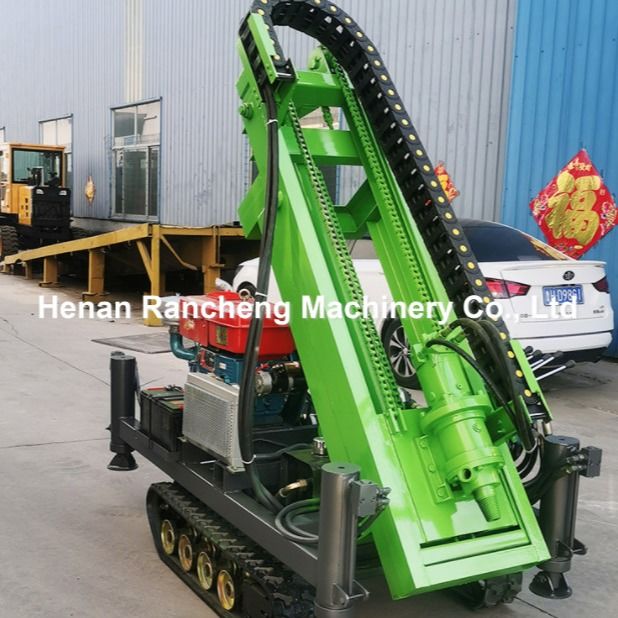

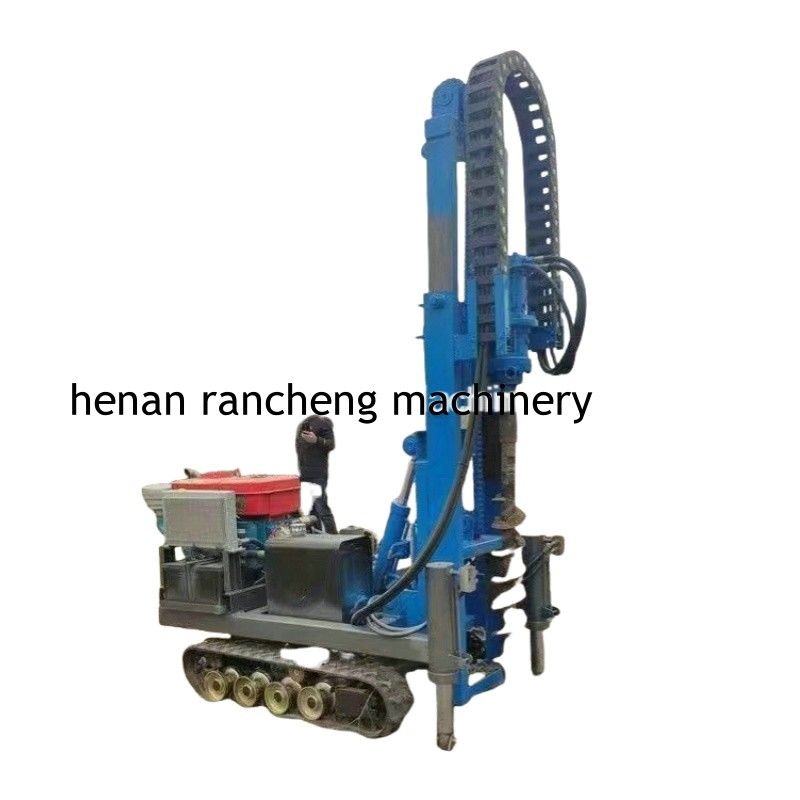

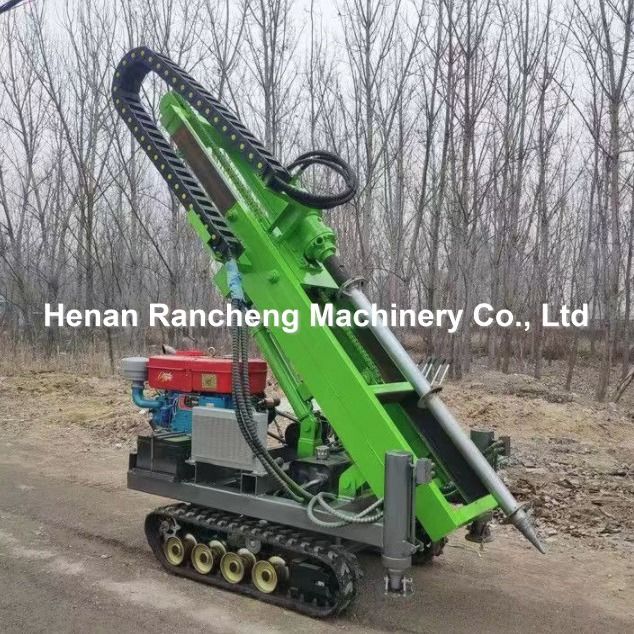

30m Deep Solar Pile Driver Equipment With 25HP Diesel Engine 030m Deep Solar Pile Driver Equipment With 25HP Diesel Engine 130m Deep Solar Pile Driver Equipment With 25HP Diesel Engine 230m Deep Solar Pile Driver Equipment With 25HP Diesel Engine 330m Deep Solar Pile Driver Equipment With 25HP Diesel Engine 4
