Name: RCH530D Full Hydraulic Pile Driver With Cummins Diesel Engine 97kw
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCH530D
Availability: InStock

Home > products > Solar Pile Driver >

RCH530D Full Hydraulic Pile Driver With Cummins Diesel Engine 97kw

Full Hydraulic Pile Driver

97kw Pile Driver

RCH530D Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCH530D

Request A Quote

Product Details

Model:

RCH530D

Name:

Full Hydraulic Pile Driver

Diesel Engine Rated Power:

97KW Cummins Engine

Hydraulic Pressure(Max):

Mast Stroke:

200-5500mm

Hydraulic Hammer:

YC360 (85MM Borehole Rod)

Highlight:

Full Hydraulic Pile Driver

97kw Pile Driver

RCH530D Pile Driver

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price

Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price

Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price

Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price

Contact Now

Product Description

RCH530D Full Hydraulic Pile Driver with Cummins Diesel Engine 97kw Engine

Product Description

Crawler mounted pile drivers are widely used for highway guardrail post installation, garden fence installation and small foundation construction.The machine has mainly 3 functions: ramming, DTH impact drilling, as well as pulling out the posts . With these functions, the machine can meet the requirement for most projects.

Main Components:

(1) Hydraulic pump

(2) Hydraulic motor

(3) Multi-directional control valves and centralized hydraulic control rods

(4) Changchai brand diesel engine

(5) Hydraulic hammer and hammer adapter

(6) Pile extractor

Product Specifications

Model	RCH530D
Transportation size (LWH)	6500mm2200mm2700mm
Working Size (LWH)	3500mm2200mm7500mm
Crawler Size	2550mm1700mm530mm
Vehicle Weight	4500-5200KG
Diesel Engine Rated Power	70KW
Flow Rate of Hydraulic System	113.4L/Min
Hydraulic Pressure(Max)	20Mpa
Mast Stroke	200-5500
Hydraulic Hammer	YC360 (85MM borehole rod)
Impact	1300J
Piling efficiency	3200mm/Min
Drilling Depth(Max)	3500mm
Borehole Diameter	50-300mm
Climbing Ability(Max)	30°
Speed	3.8KM/H
Left/Right Sliding Stroke(Max)	500mm
Max Inclination Angle of Sliding Guide Frame	Left 30°/Right 8°
Front / Rear Adjusting angle of frame	Front 75°/ Rear 15°
Min Ground Clearance	230mm
Capacity of Hydraulic Oil Tank	80L
Capacity of Diesel Tank	80L

Product Features

1. Both wheeled and crawler type moving mode for choice.

2. Mainly Diesel engine driven, and other optional driving unit could meet different customers ’ needs for different construction demands;

3. Easily operation.

4. High-efficiency

5. Energy-saving

6. this pile Machine is equipped with angle gauge, which helps the operator adjust the direction in time and ensure vertical drilling.

7. Wide view cabin, which facilitate the operator to observe the working environment

8. Intelligent design makes different hammer adapters/bits/head is suitable for different shape posts for your choice, like C-shape, H-shape, U-shape, Sigma shape etc.

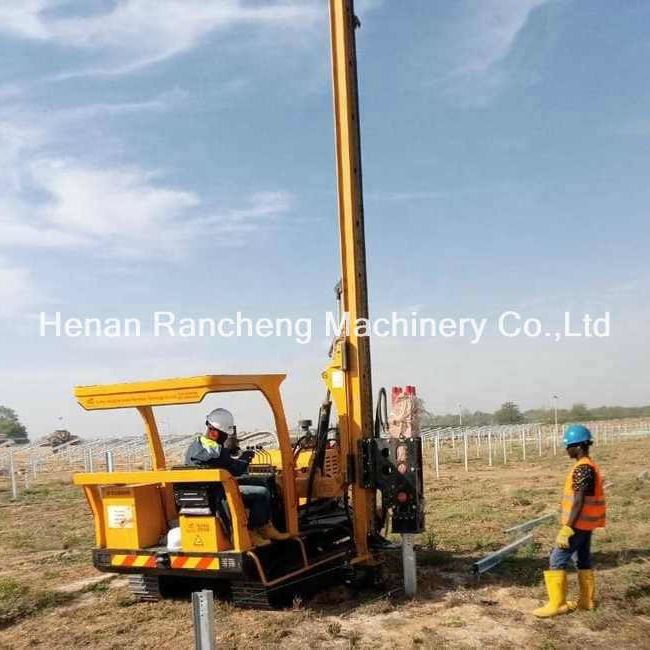

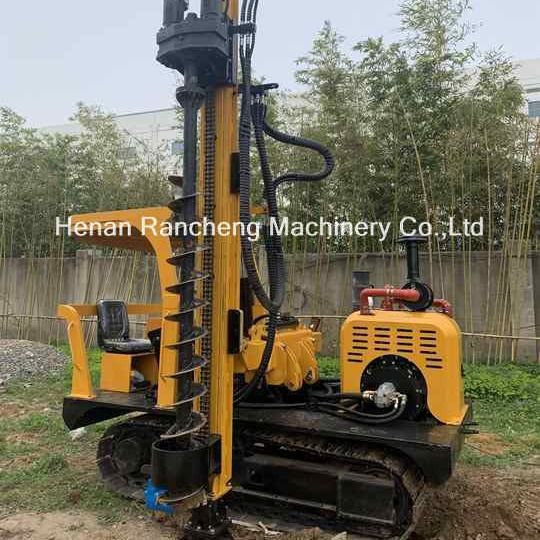

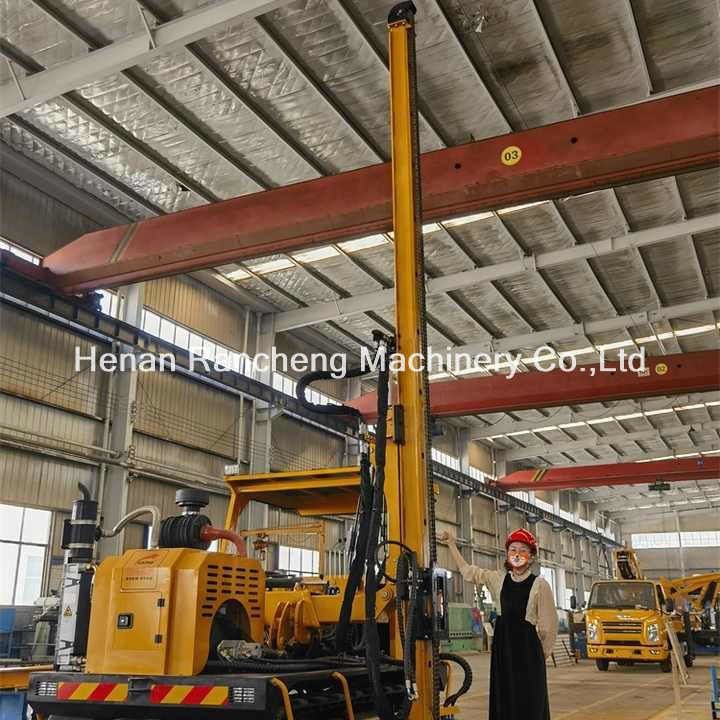

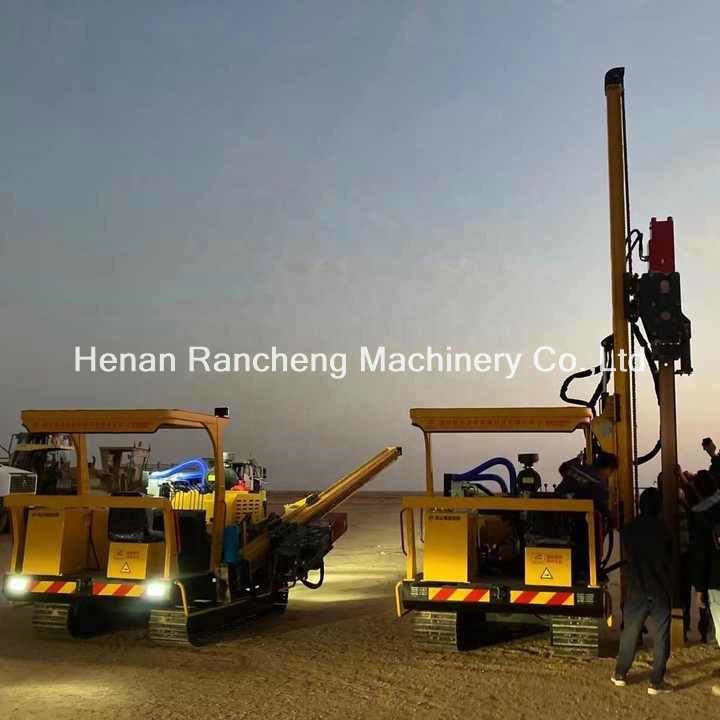

Product Image
