Europe hot-selling 350m crawler hard rock water well drilling rig with 91KW Power
Product Description
RCF350C Water Hole Drilling Machine is an advanced and reliable piece of equipment designed for efficient drilling in a variety of applications, including irrigation wells, drinking water wells, geothermal wells, and industrial wells. Featuring a powerful 91KW Yuchai diesel engine, this machine delivers excellent performance for challenging drilling tasks.
The machine's crawler-mounted design ensures excellent mobility and stability, even on uneven and rugged terrain. With its top head rotation drive, it can perform both mud pump and DTH air drilling, making it versatile for different geological conditions. The RCF350C can reach a maximum drilling depth of 350 meters and can handle drilling diameters up to 350 mm, allowing for flexible operation across diverse drilling projects.
This equipment is engineered to be highly efficient, reliable, and adaptable, making it an ideal choice for both small-scale and large-scale drilling needs.
Technical Parameters
| Model |
RCF350C |
| Bore diameter(Hammer) |
140-350mm |
| Bore depth |
350m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m/6m |
| Lifting force |
22T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
6200-8500Nm |
| Rotary speed |
55-115r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6000×2000×2550mm |
| Weight |
8600Kg |
| Diesel engine |
91KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
| Operating system |
Full hydraulic operation |
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

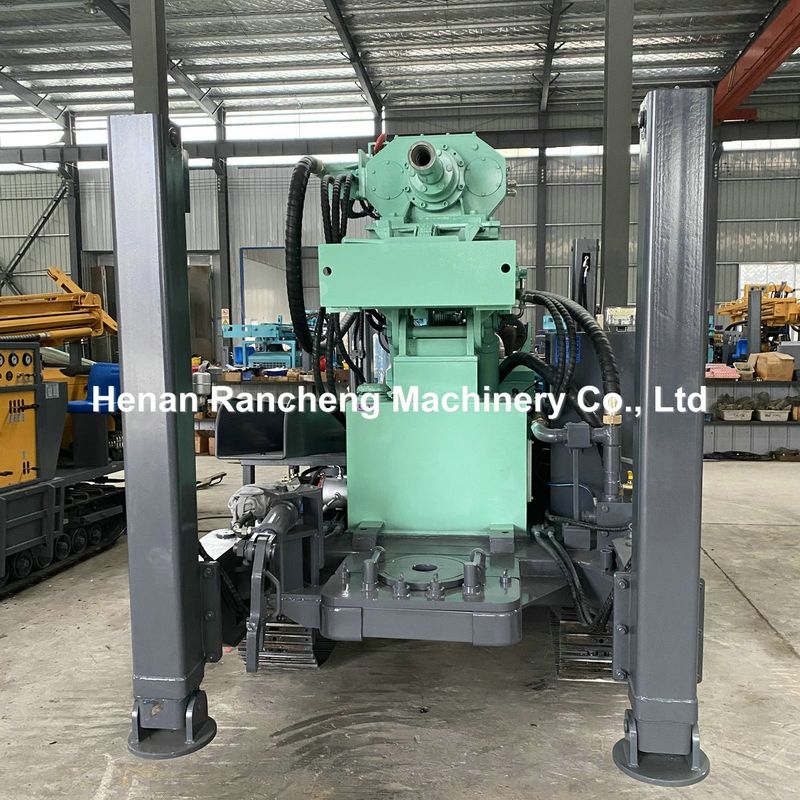

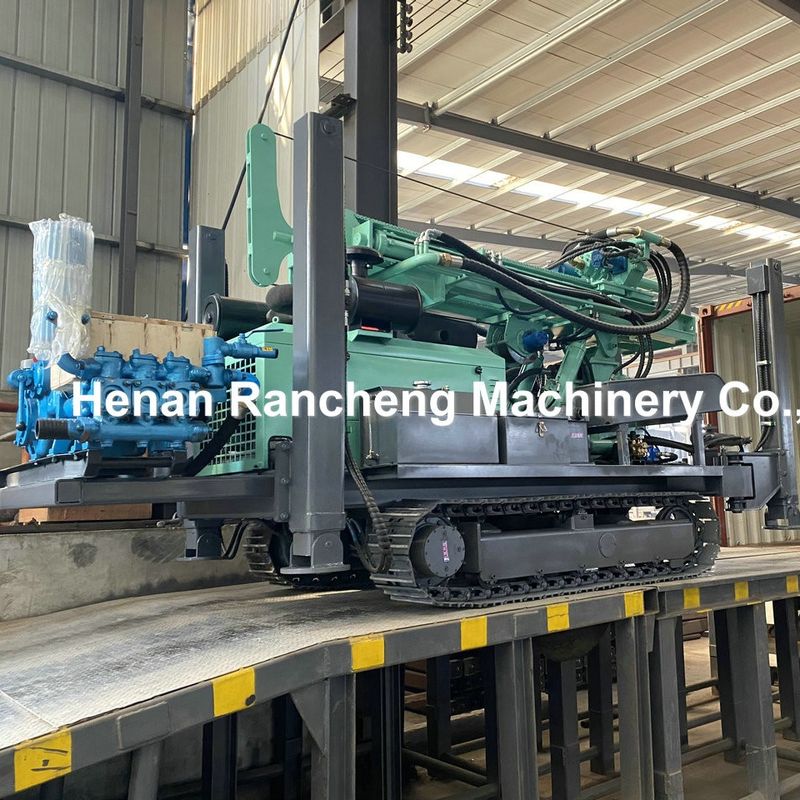

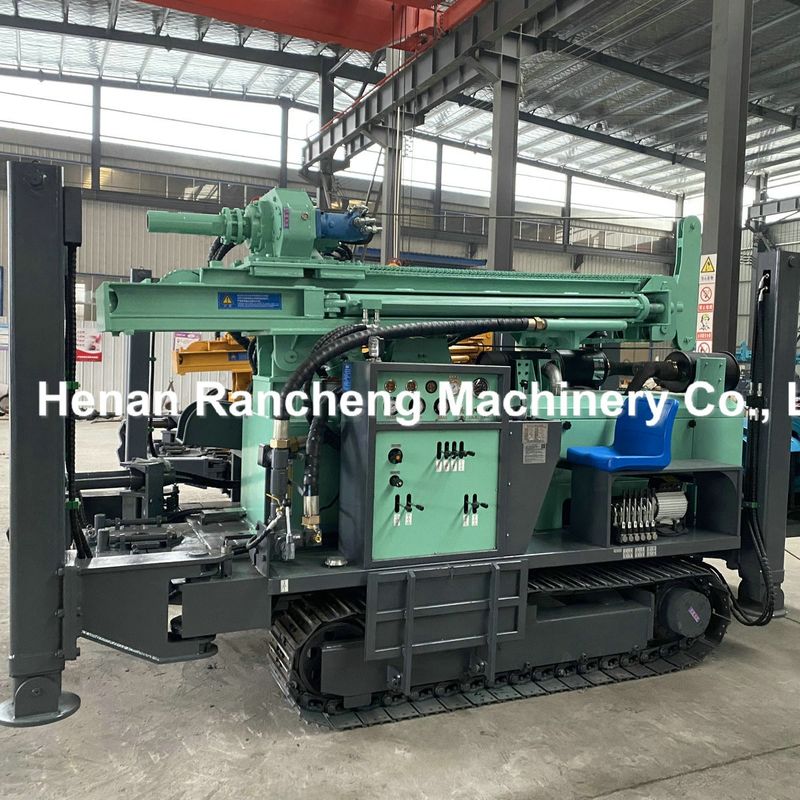

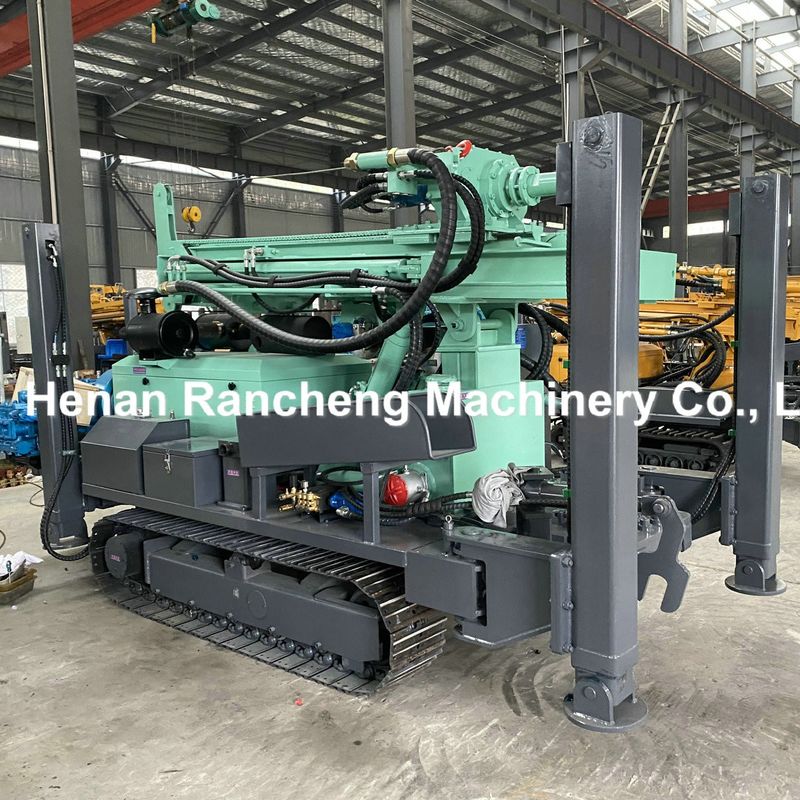

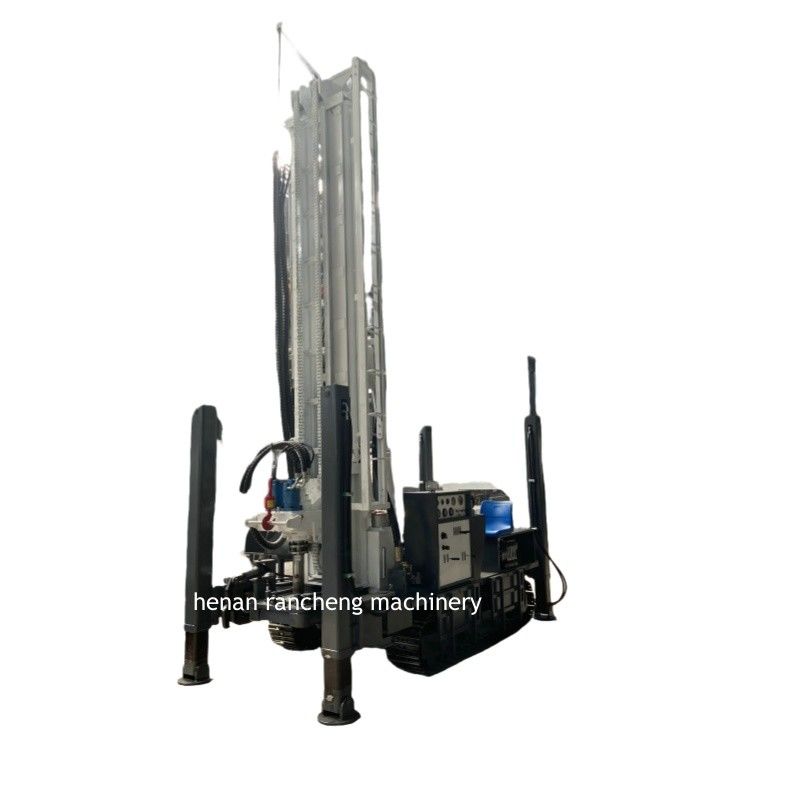

Machine picture display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
