Factory Price Solar Piling Driver 70KW Engine RCH530D Rig Machine in Stock
Product Description
The RCH530D bored piling rig is a highly adaptable machine, specifically engineered for tasks such as highway guardrail installation, garden fence construction, and small foundation projects.
Equipped with a powerful 70KW engine and an 80L diesel tank, the RCH530D provides exceptional performance and efficiency. Its hydraulic system ensures precise control, allowing the guardrail columns to be firmly driven into the soil with optimal perpendicularity and stability, significantly enhancing the safety of the structures.
This same hydraulic system enables effortless pile extraction, supporting reuse or repositioning, which increases operational flexibility and reduces costs.
The rig’s advanced drilling capabilities make it effective for penetrating hard surfaces, including soil, asphalt, concrete, rock, and granite, ensuring reliable performance across various geological conditions.
With a drilling depth of 3.5 meters and borehole diameters ranging from 50mm to 300mm, the RCH530D is an ideal solution for projects requiring precision, power, and adaptability.
Product Specifications
| Model |
RCH530D |
| Transportation size (L*W*H) |
6500mm*2200mm*2700mm |
| Working Size (L*W*H) |
3500mm*2200mm*7500mm |
| Crawler Size |
2550mm*1700mm*530mm |
| Vehicle Weight |
4500-5200KG |
| Diesel Engine Rated Power |
70KW |
| Flow Rate of Hydraulic System |
113.4L/Min |
| Hydraulic Pressure(Max) |
20Mpa |
| Mast Stroke |
200-5500 |
| Hydraulic Hammer |
YC360 (85MM borehole rod) |
| Impact |
1300J |
| Piling efficiency |
3200mm/Min |
| Drilling Depth(Max) |
3500mm |
| Borehole Diameter |
50-300mm |
| Climbing Ability(Max) |
30° |
| Speed |
3.8KM/H |
| Left/Right Sliding Stroke(Max) |
500mm |
| Max Inclination Angle of Sliding Guide Frame |
Left 30°/Right 8° |
| Front / Rear Adjusting angle of frame |
Front 75°/ Rear 15° |
| Min Ground Clearance |
230mm |
| Capacity of Hydraulic Oil Tank |
80L |
| Capacity of Diesel Tank |
80L |
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

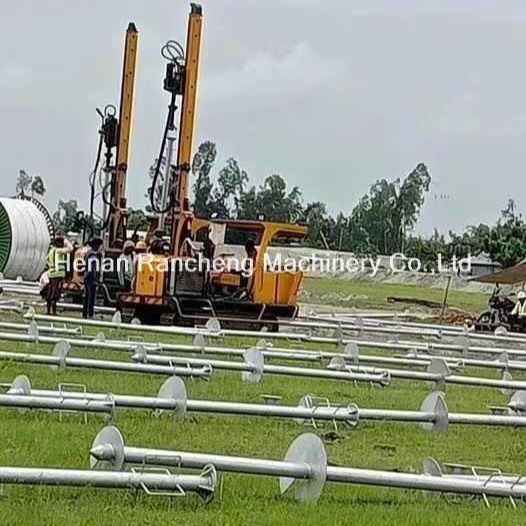

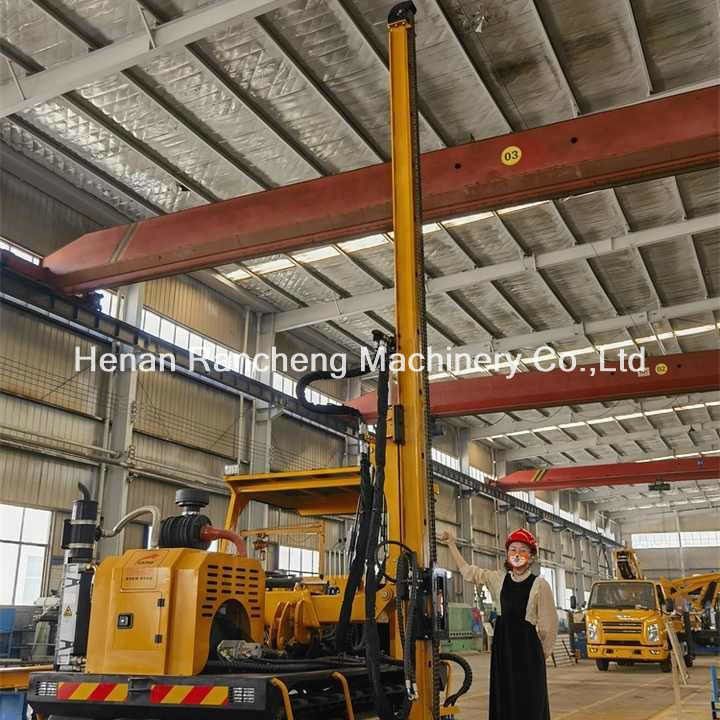

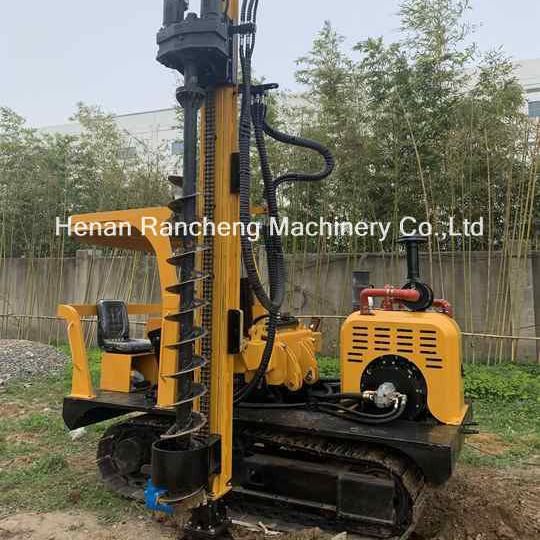

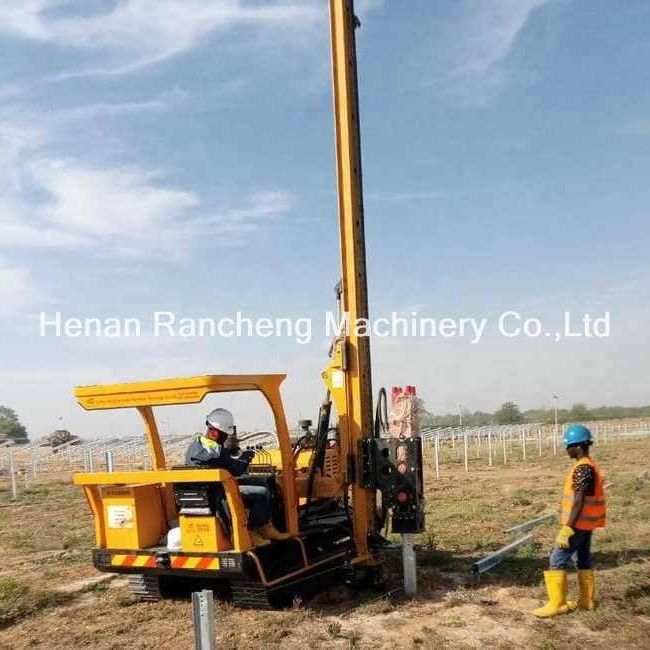

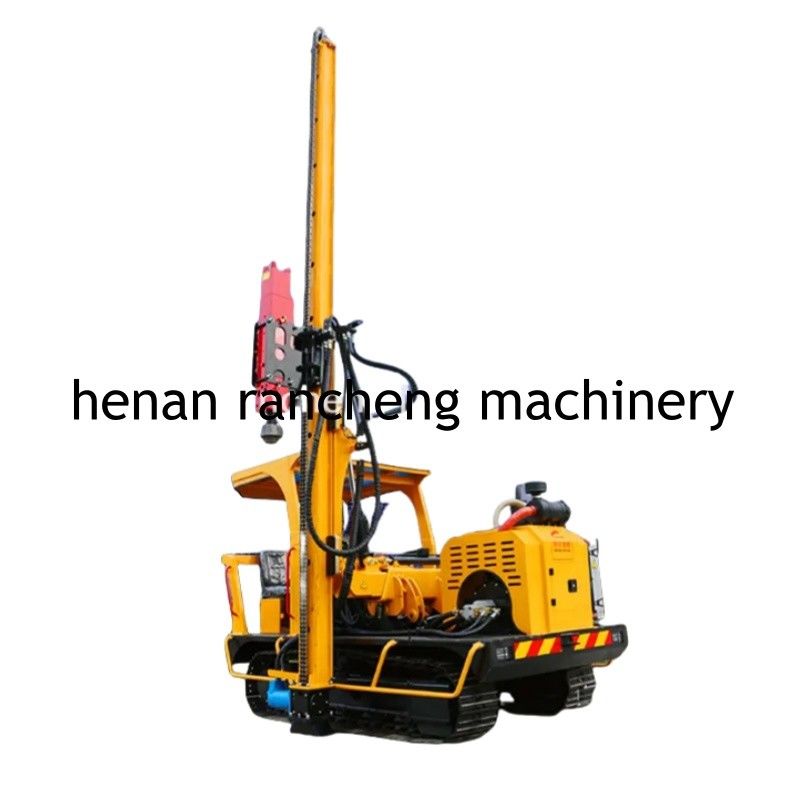

Product Image
