Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF280C
Best Selling 280m Bore Depth Hydraulic Crawler Water Well Drilling Rig Machine
Product Description
The RCF280C Water Well Drilling Rig is an advanced, multi-function, full hydraulic drilling machine designed for high efficiency and reliable performance. Equipped with a powerful 70KW Yuchai engine, this rig is built to handle demanding drilling tasks with ease. The RCF280C is capable of drilling up to 280 meters in depth and accommodates diameters ranging from 100 to 350mm, making it versatile for a wide range of applications.
This drilling rig features steel crawler-mounted walking for excellent mobility and stability, ensuring smooth operations across different terrains. The machine supports both mud pump and DTH air drilling, allowing it to adapt to various drilling conditions and project requirements.
The RCF280C is primarily used for resource exploration, hydrology wells, civil water wells, and agricultural irrigation projects. Its powerful torque and full hydraulic system enhance its performance, making it an ideal choice for those seeking efficiency and dependability in water well drilling.
Technical Parameters
Model | RCF280C |
Bore diameter(Hammer) | 100-350mm |
Bore depth | 280m |
Air consumption | 17-35m³/min |
Air pressure | 1.7-3.0Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 3m/6m |
Lifting force | 18T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 30m/min |
Fast feeding speed | 50m/min |
Max torque of the rotary | 7000-9000Nm |
Rotary speed | 40-70r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 4100×1900×2600mm |
Weight | 7000Kg |
Diesel engine | 70KW Yuchai engine |
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

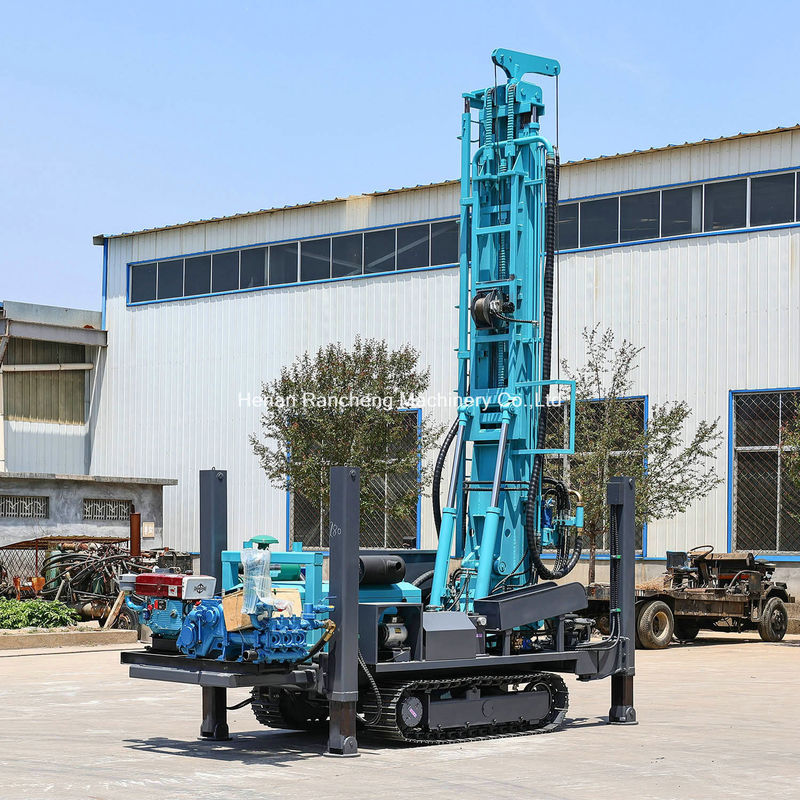

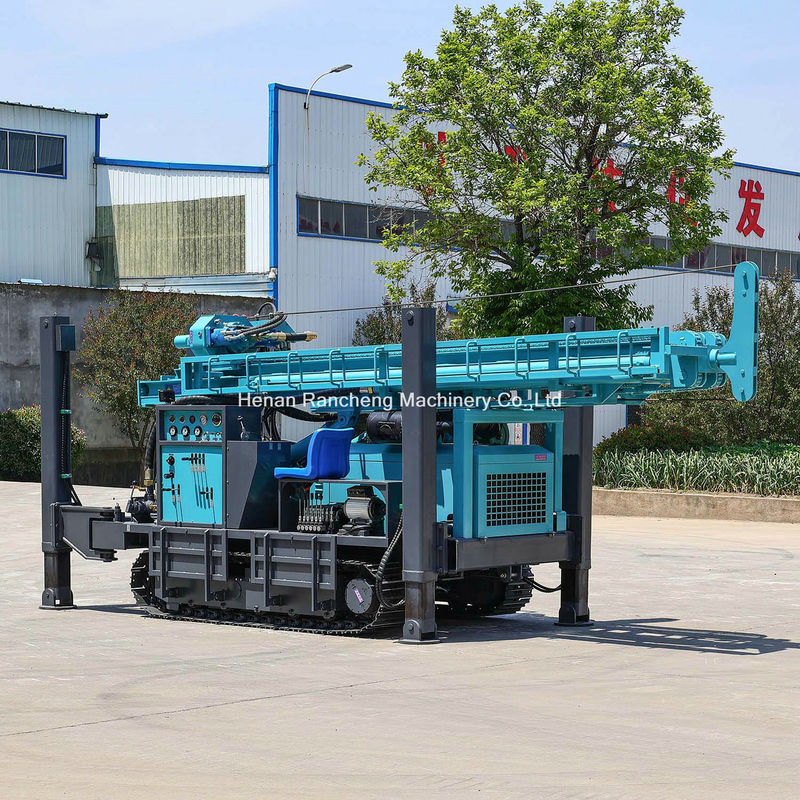

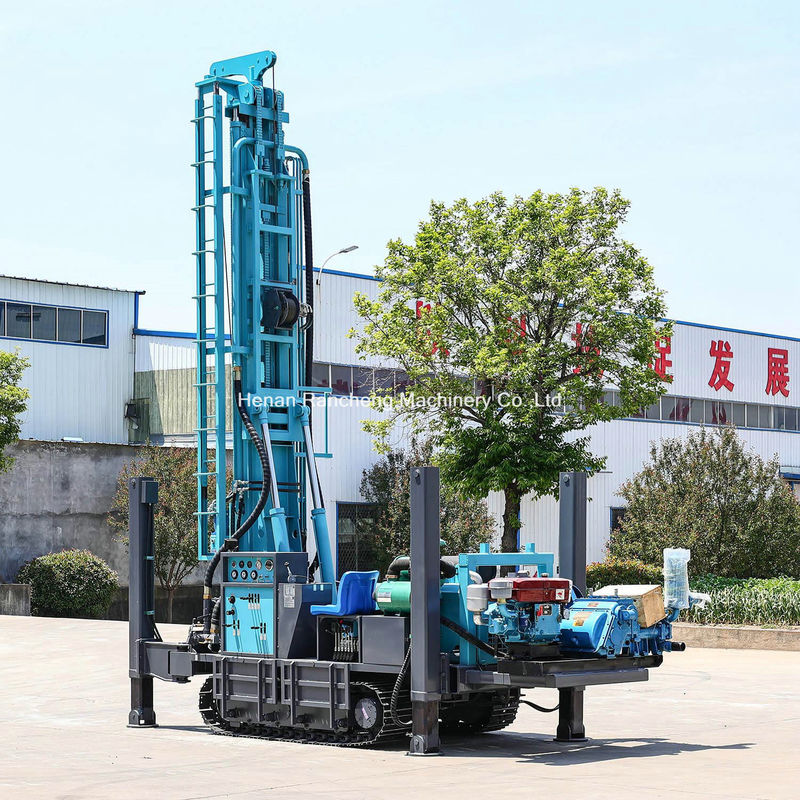

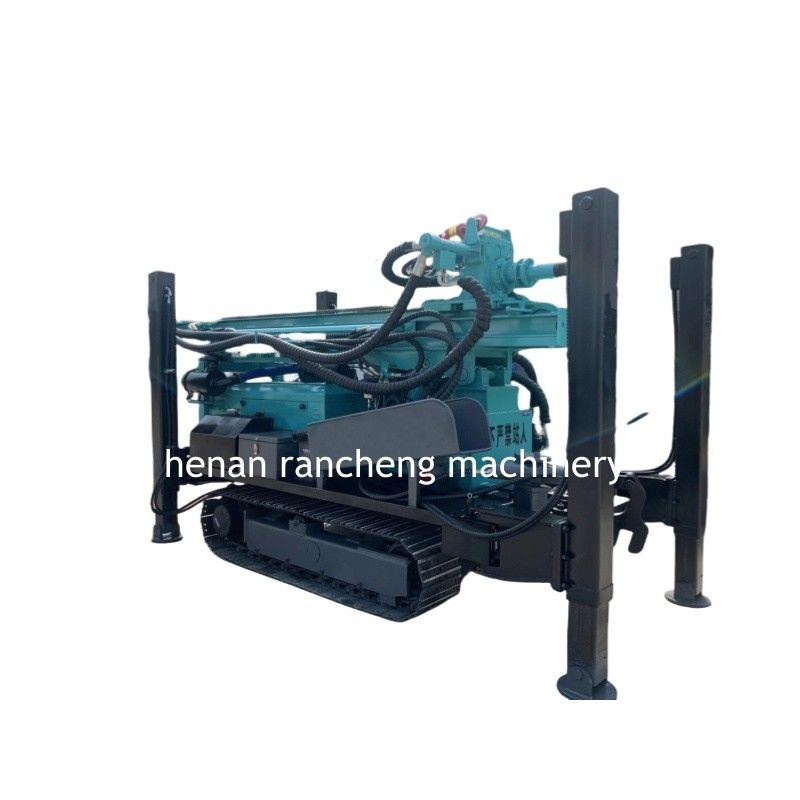

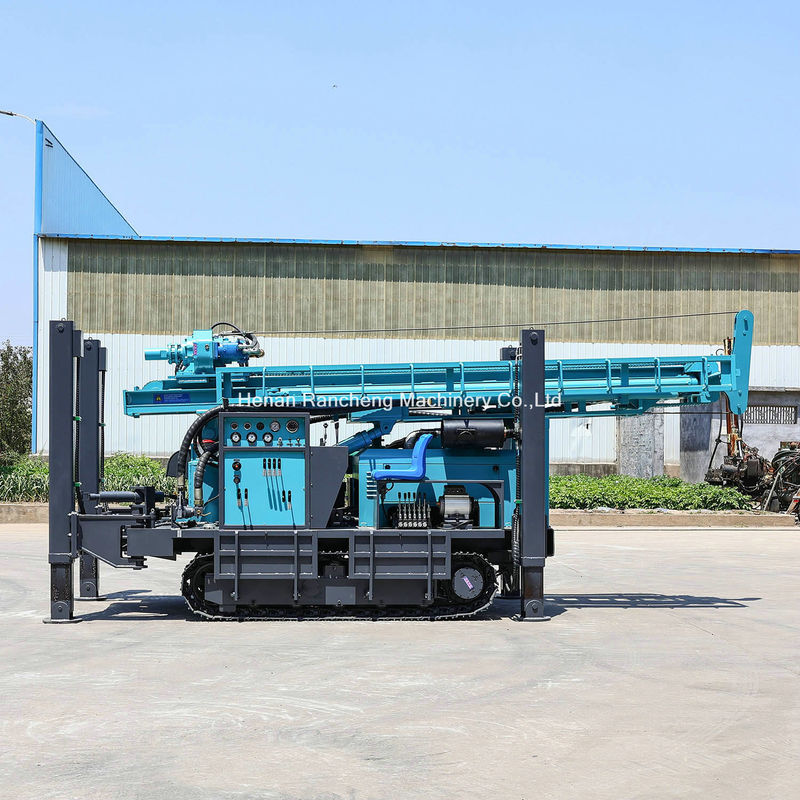

Machine Picture Display
