Name: Crawler-Mounted DTH Hydraulic Water Well Drilling Rig 180m Deep Ground Crawler Drilling Rig Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF180S
Availability: InStock

Home > products > Water Well Drilling Machine >

Crawler-Mounted DTH Hydraulic Water Well Drilling Rig 180m Deep Ground Crawler Drilling Rig Machine

Crawler Drilling Rig Machine

DTH Hydraulic Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Request A Quote

Product Details

Name:

RCF180S Crawler Mounted Well Drilling Rig

Drilling Depth:

180m

Bore Diameter（hammer）:

90-300mm

Air Consumption:

17-31m³/min

Air Pressure:

1.7-2.5Mpa

Pipe Diameter:

76mm/89mm

Pipe Length:

Diesel Engine:

77.3KW Yuchai Engine

Highlight:

Crawler Drilling Rig Machine

DTH Hydraulic Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Get Best Price

Video

RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3

Get Best Price

Video

500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine

Get Best Price

Video

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Get Best Price

Contact Now

Product Description

Crawler-Mounted DTH Hydraulic Water Well Drilling Rig 180m Deep Ground Crawler Drilling Rig Machine

Machine Description

RCF180S small water well drilling rig is a small crawler water well drilling rig with a drilling depth of up to 180 meters and a diameter of up to 300 mm. This small water well drilling rig has high drilling efficiency, easy operation, energy saving and durability. It is suitable for water well drilling, borehole drilling, farmland irrigation drilling, borehole drilling, etc.

Technical Parameters

Bore diameter(hammer)	90-300mm
Bore depth	180m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Once-time advance length	2.4m
Pipe diameter	76mm/89mm
Pipe length	2m
Push force	4T
Lifting force	15T
Max torque of rotary	4000-4600Nm
Rotary speed	45-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	2300×1200×1900mm
weight	2700kg
Diesel engine	77.3KW Yuchai engine

Feature:

1.High Efficiency

Equipped with a hydraulic system and advanced drilling tools, the mini well drilling rig can drill up to 180m deep, making it an ideal choice for small water well projects.

2.Operating Easily

Its crawler chassis has excellent stability and maneuverability, allowing it to travel over rough terrain and difficult drilling conditions. The ergonomic control panel and user-friendly interface allow the operator to easily control and monitor the drilling progress.

3.Durability

Made of high-quality materials and advanced manufacturing processes, mini well drilling rig has a sturdy structure that can withstand harsh drilling conditions and can be used for many years with minimal maintenance.

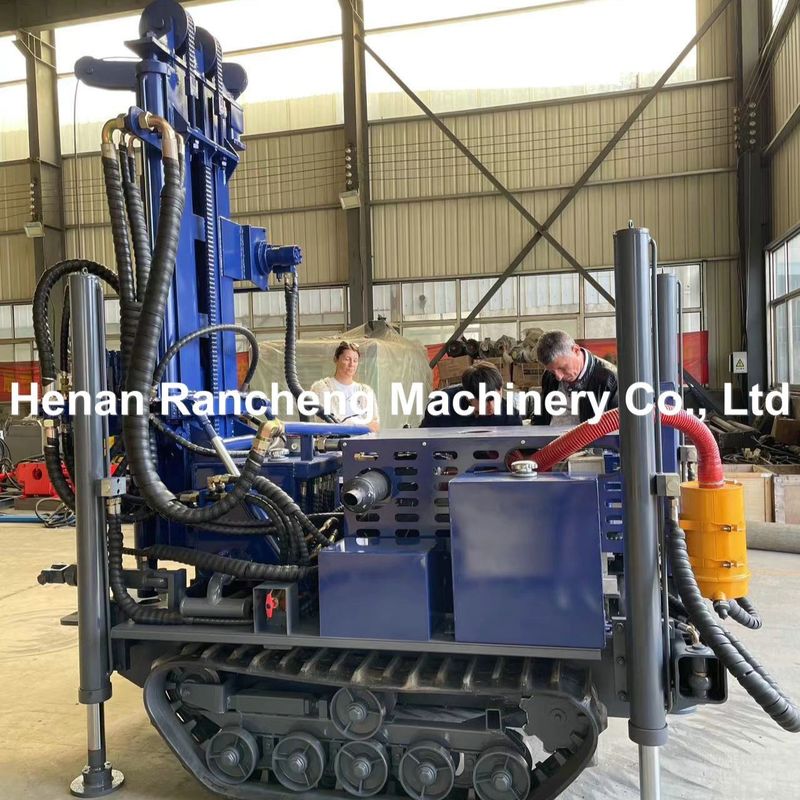

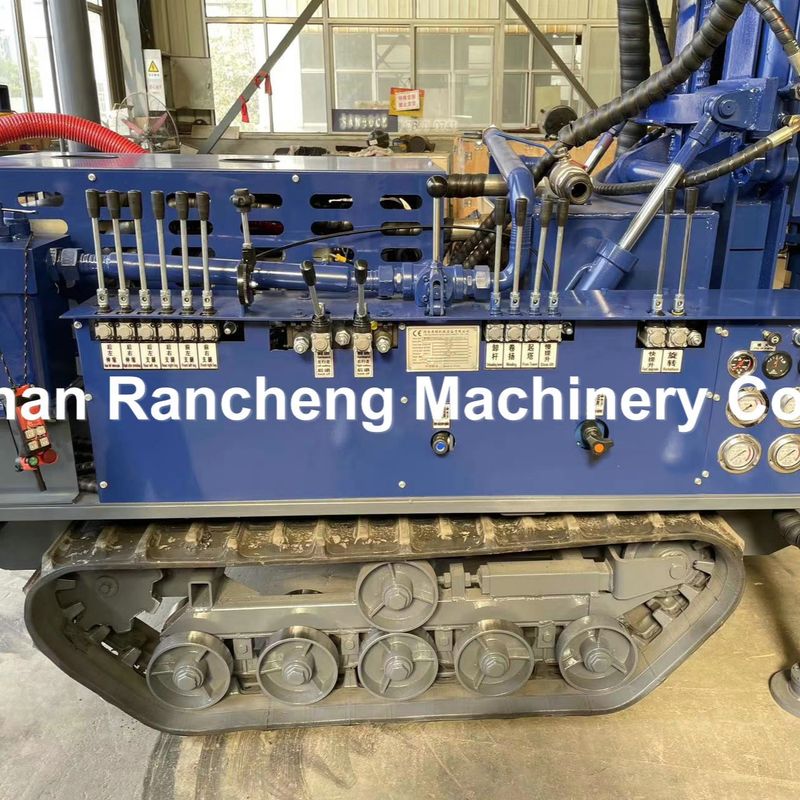

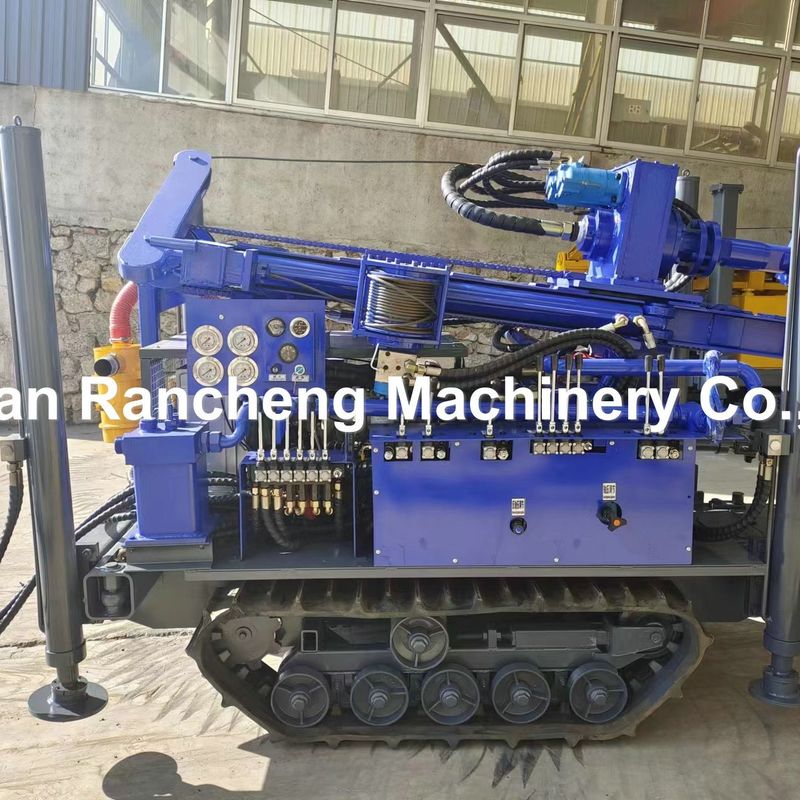

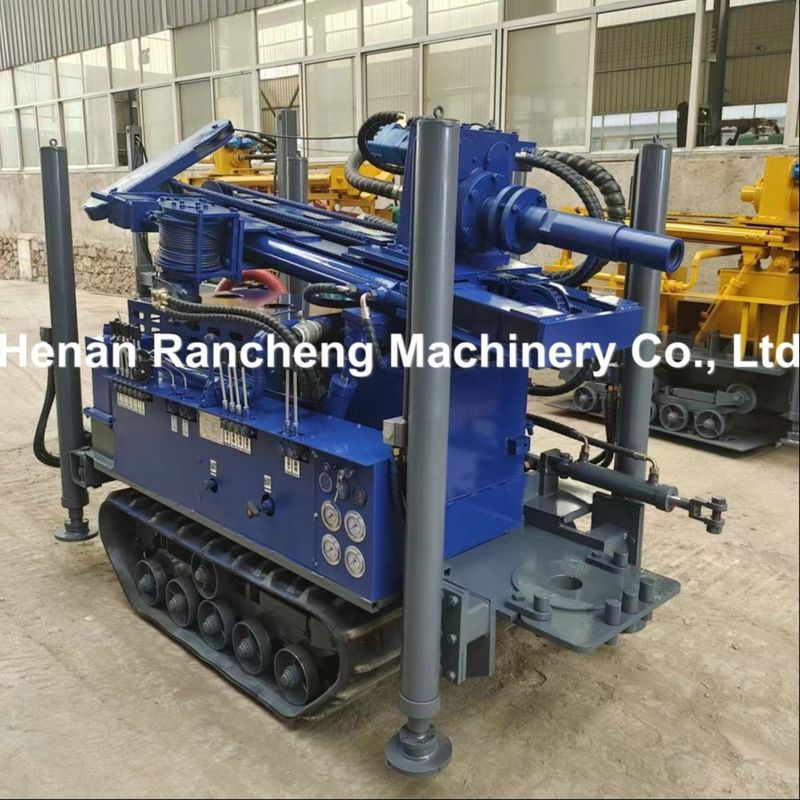

Image Display
