20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Multi-Functional Solar Pile Driver

Reliable Hydraulic Solar Pile Driver

30m Solar Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC185Y

Contact Us
Request A Quote
Product Details
Name:
Hydraulic Solar Pile Driver
Model:
RC185Y
Bore Diameter:
90-300mm
Bore Depth:
20-100mm
Air Consumption:
10-26m³/min
Dimension:
5300*1970*2620mm
Weight:
5800kg
Host Power:
84kw
Highlight:

Multi-Functional Solar Pile Driver

,

Reliable Hydraulic Solar Pile Driver

,

30m Solar Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch



Machine Description



Introducing the versatile RC185Y drill: the perfect solution for all your drilling needs! Designed to be versatile, the RC185Y is a premium drill that excels in a wide range of drilling methods, making it an indispensable tool for all types of projects. Whether you need rotary mud pump drilling, pneumatic downhole drilling, helical pile drilling or solar pile installation, this drill is designed to deliver superior performance in all areas.



The RC185Y stands out with its innovative hydraulic technology, which not only increases efficiency but also significantly reduces fuel consumption. This way, you get more with less, making it an environmentally friendly choice for your drilling operations. Thanks to its powerful torque, the device can easily handle the toughest drilling tasks. In addition, the convenient hole deflection function enables precise drilling, making it ideal for projects that require accuracy and reliability.



From construction sites to renewable energy projects, the RC185Y has a wide range of applications, including ground anchoring of solar PV piles. Its versatility makes it suitable for both small and large operations, giving you the flexibility to adapt to all your project needs.



Investing in the RC185Y multi-purpose drill rig means investing in quality, efficiency and versatility. The platform features a rugged design and advanced technology to withstand harsh working environments and deliver outstanding results. Expand your drilling operations and discover the RC185Y difference: a combination of innovation and performance!



Machine Specifications



Bore diameter(hammer) 90-300mm
Bore depth 20-100m
Air consumption 10-26m³/min
Air pressure 0.7-1.6Mpa(medium)
1.6-2.46Mpa(high)
Pipe diameter 76mm/89mm
For rock F=6-20
Bore diameter(screw) Max 400mm
Bore depth 0-30m
Screw pipe diameter 130-400mm
Once promotion 3200mm
Skid pitch 120º
The swinging angle of the drilling boom Left and right total 50º
The swinging angle of the skid Left and right total 40º
Rotation speed 0-110r/min
Host power 84Kw
Climb ability 35º
Dimension(L*W*H) 5300*1970*2620mm
weight 5800Kg
Walk speed 0-2.5km/h



Machine Advantages



1. Compact design: RC185Y has a small size and light weight, making it easy to transport and operate in narrow spaces. It's perfect for both indoor and outdoor applications, and can easily navigate through tight spaces and rough terrain.


2. High performance: Despite its compact size, RC185Y has a powerful engine that delivers high torque and speed. This allows the machine to drive piles quickly and accurately, reducing the time and effort required for construction projects.


3. Ease of use: RC185Y is user-friendly and intuitive, with simple and easy-to-understand controls that anyone can operate. The machine also features an ergonomic design that minimizes operator fatigue and maximizes productivity.

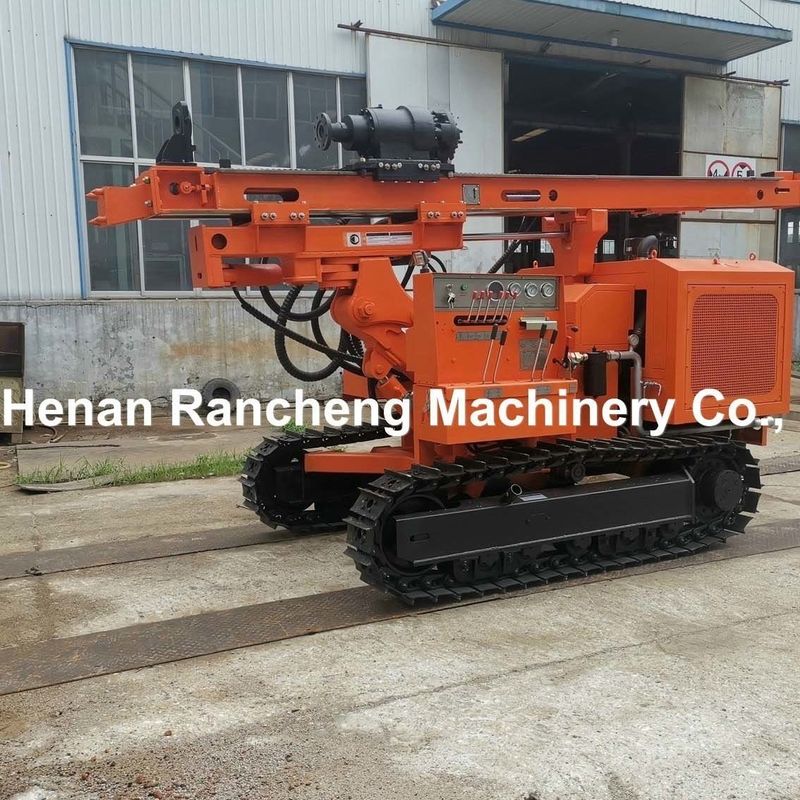

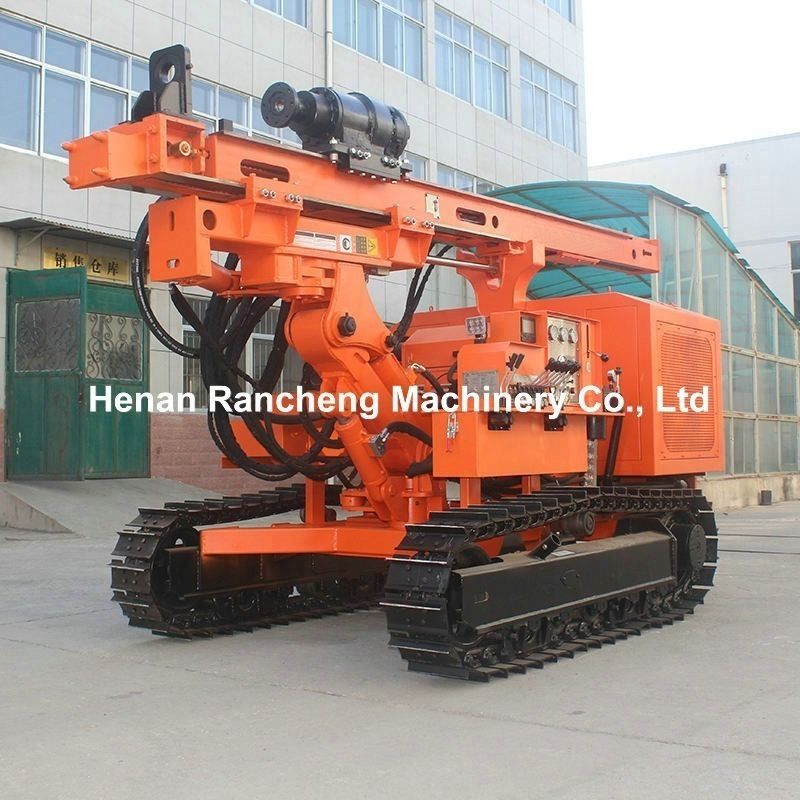

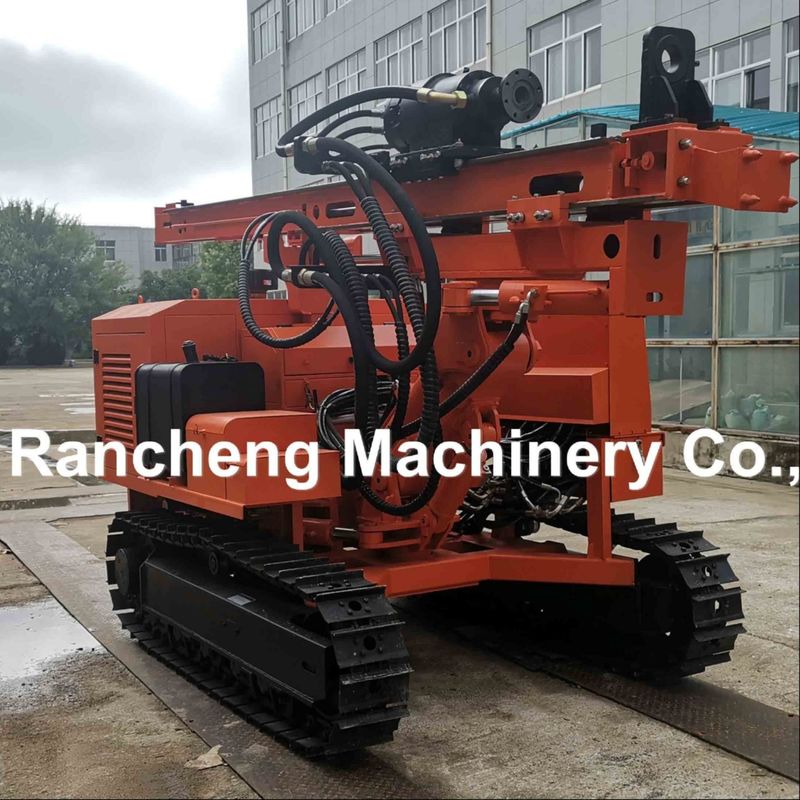

Machine Pictures



20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch 0

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch 120-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch 220-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch 3
