800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor Or Mud Pump

800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor Or Mud Pump

Mud Pump Water Well Drilling Rig

Air Compressor Water Well Drilling Rig

800m Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Contact Us
Request A Quote
Product Details
Name:
RCF800C Multi Functional Drilling Rig
Geology Drilled:
All Kind
Drill System And Operation:
Hydraulic
Max Hole Depth:
800m
Hole Diameter:
140-500m
Diesel Engine:
154KW Cummins
Air Consumption:
17-42m³/min
Air Pressure:
1.7-3.5Mpa
Feeding Efficiency:
10-35m/h
Highlight:

Mud Pump Water Well Drilling Rig

,

Air Compressor Water Well Drilling Rig

,

800m Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor or Mud Pump



Machine Introduction



The RCF800C Water Drilling Equipment adopts full hydraulic control, top drive drill bit rotation, and very high drilling efficiency. The overall layout is reasonable, and it adopts tractor suspension or full ground chassis for transportation, with good maneuverability and very flexible on difficult roads.



Made of high-quality materials and stylish and compact design, water drilling equipment is more efficient, have a low failure rate, are more economical and durable, and have a high comprehensive cost performance.



Specification



Model RC800C
Drilling way Both mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Diesel engine 154KW Cummins
Max hole depth 800m
Hole diameter

140-500mm

Air consumption

17-42m³/min

Length of drilling pipe 1m/2m/3m/6m
Diameter of drilling pipe

102/108/114mm

Total Weight 13ton
Dimension (L * W * H)

6300×2300×2650mm



Applications

1.The water drilling equipment can be widely used in many fields such as hydrological wells, coalbed methane, shallow shale gas, geothermal, etc.,


2.and can also be used for coal mine gas mining and salvage work. The top-mounted drive head spindle has a large roadway diameter, which is suitable for a variety of construction work such as mud drilling, air drilling, air foam drilling, etc., to meet the needs of drilling wells in different terrains and strata.

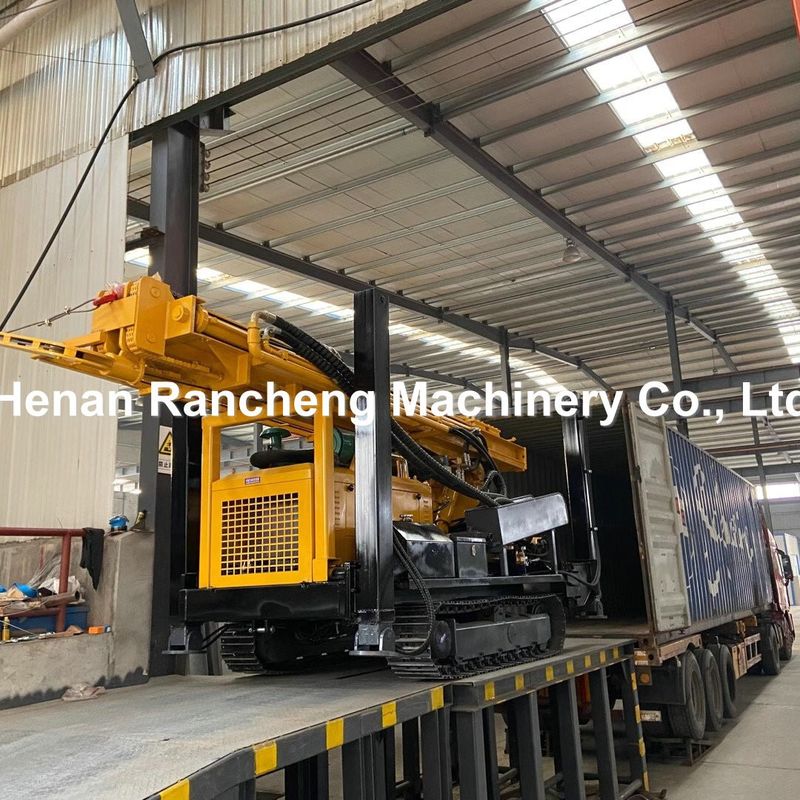

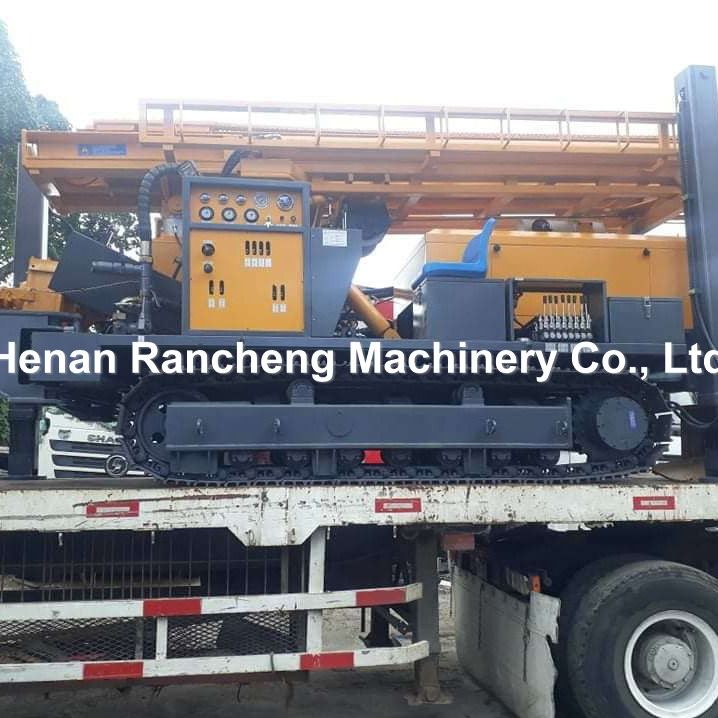

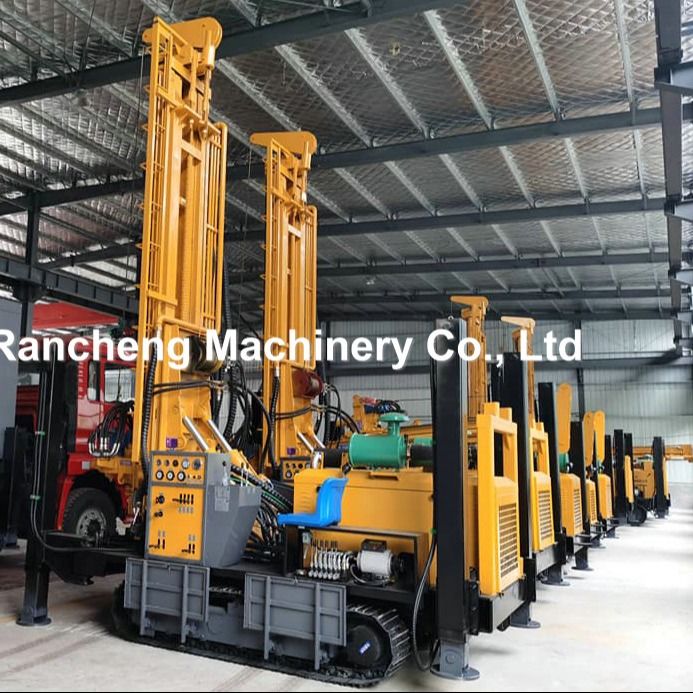

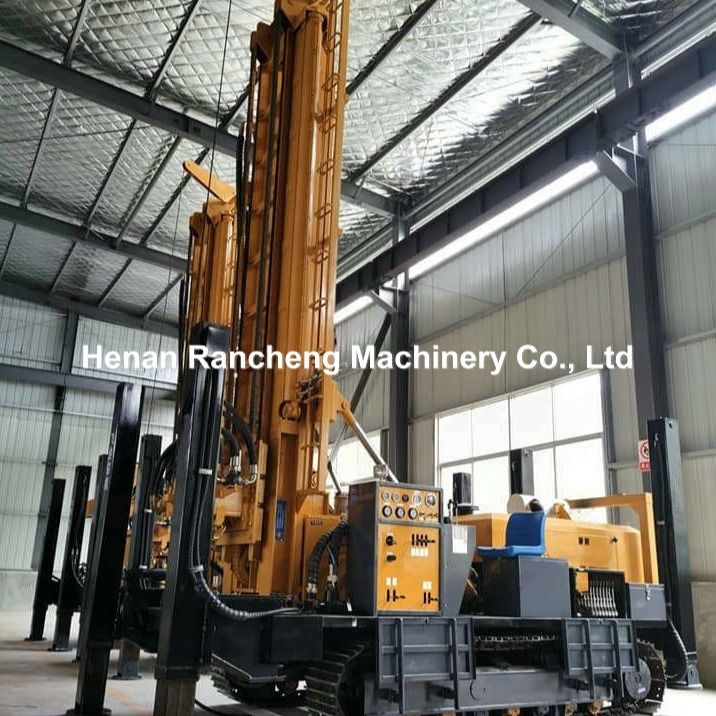

Machine Pictures



800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor Or Mud Pump 0800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor Or Mud Pump 1800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor Or Mud Pump 2800m Depth Crawler Pneumatic Water Well Drilling Rig With Air Compressor Or Mud Pump 3
