30Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox

30Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox

30m Crawler Gearbox Pile Driver

Hydraulic Power Hea Pile Driver

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCKM-30S

Contact Us
Request A Quote
Product Details
Name:
Solar Pile Drive
Model:
RCKM-30S
Borehole Depth:
1-30m
Borehole Diameter:
50-300mm
Dimensions:
2300*1300*2200mm
Rig Weight:
1.2T
Engine Power:
30HP
Cooling System:
Hydraulic Cooler
Hydraulic Legs:
4
Highlight:

30m Crawler Gearbox Pile Driver

,

Hydraulic Power Hea Pile Driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

30Hp Hydraulic power hea Pile Driver With 30m Crawler Gearbox



Product Description



Introducing the RCKM-30S Compact Pneumatic Crawler Pile Driver – the ultimate solution for your piling needs! Designed for versatility and efficiency, this versatile machine is ideal for a variety of applications, including solar piling, roadside fencing, and micropile installation. Whether you’re working on a large solar farm or a small fencing project, the RCKM-30S is designed to meet your demands for precision and reliability.



At the heart of the RCKM-30S is a powerful 30 HP diesel engine that delivers powerful performance to take on the toughest jobs with ease. The hydro-mechanical transmission system increases productivity and allows for smooth, fast control. This means you can focus on getting the job done, not worrying about machine performance.



One of the key features of the RCKM-30S is the ability to support multi-angle drives. This capability allows for very precise installations, ensuring that each pile is driven exactly where it needs to be. The machine’s durable construction is designed to withstand the rigors of demanding work environments, making it a trusted partner for contractors and builders.



In addition to its impressive performance, the RCKM-30S is designed to be easy to use. Its intuitive controls and compact design make it easy to use even in tight spaces. This not only saves you time but also increases productivity on the job site.



In short, the RCKM-30S Compact Crawler Pneumatic Pile Driver is a powerful, efficient and versatile machine that is ideal for a wide range of piling applications. Invest in the RCKM-30S today and experience the difference in your construction projects!



Product Specifications



Model RCKM-30S
Rig weight 1.2t
Dimensions (L×W×H) 2300*1300*2200mm
Engine power 25HP
Rotary head torque 3500N.m
Hydraulic oil pump Single pump
hydraulic loading system Cylinder chain pressure
Hydraulic working pressure 20Mpa
Way of walking Crawler gearbox walking
Walking speed 7-15km/h
cooling system Hydraulic cooler
Carriage travel distance 2.8m
Piling height 1-3m
Borehole diameter 50-300mm
Borehole depth  1-30m
Air consumption 6m3/min
Adapt to rock types Medium hard rock ,F=8-12
Climbing ability 35°
Hydraulic legs 4



Product Features



1.Drilling depth up to 30m, drilling diameter 50-300mm.



2.The drilling angle is adjustable from 45° to 90°, easy to operate, and the drilling efficiency is fast.



3.Advanced hydraulic system, excellent hydraulic components, long service life of hydraulic system.



4.High torque hydraulic power head ,fast drilling speed ,with the impactor can be drilled rock.



5.Adopting branded single-cylinder diesel engine ,strong power ,reliable performance ,stable operation for a long time.



6.Adaptable to all kinds of complex terrain ,no damage to the road surface ,flexible and maneuverable.

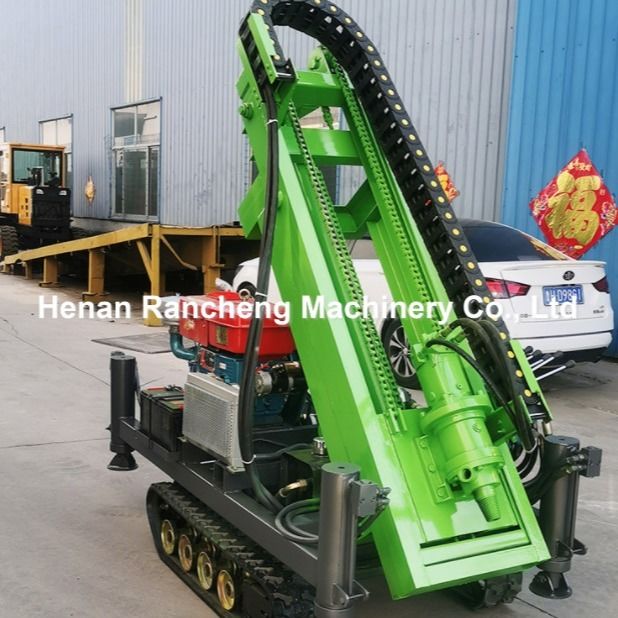

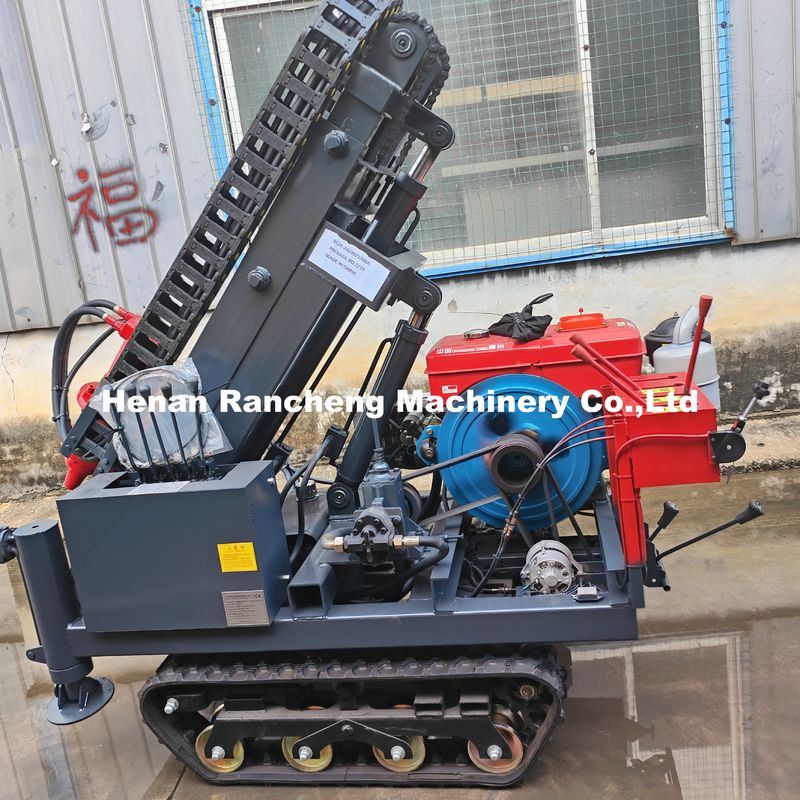

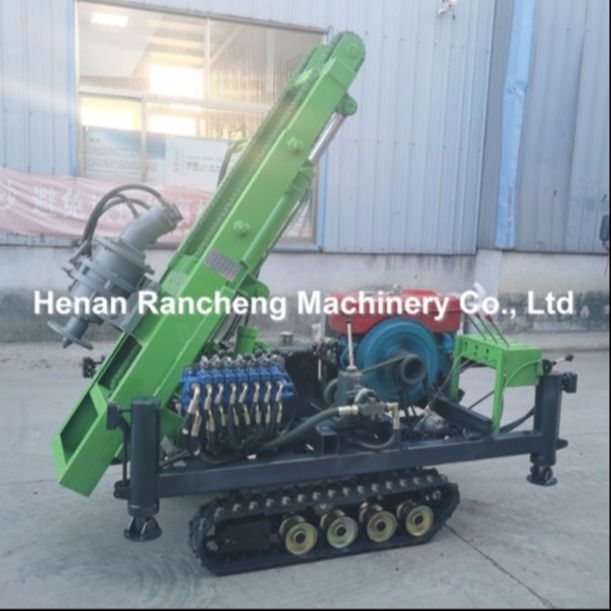

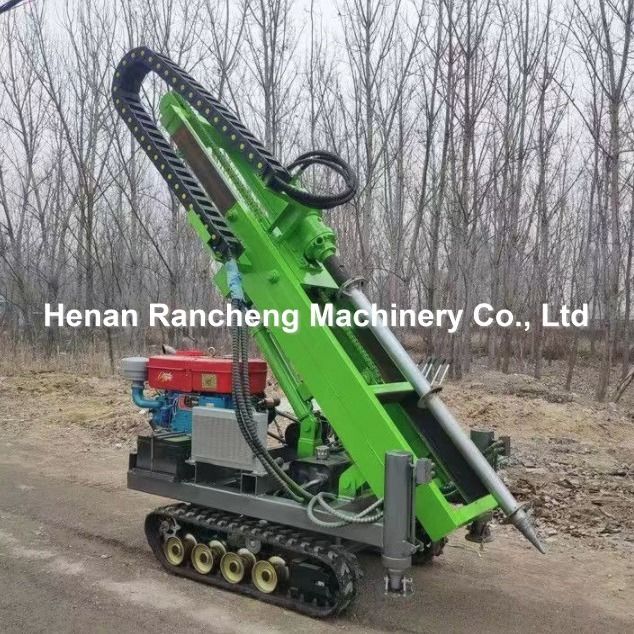

Product Image



30Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 030Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 130Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 230Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 3

30Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 430Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 530Hp Hydraulic Power Hea Pile Driver With 30m Crawler Gearbox 6
