180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks

180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks

77.3 KW Water Well Drilling Rig

180-Meter Water Well Drilling Rig

Crawler Tracks Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks
180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks
Product Details
Name:
Water Well Drilling Machine
Model:
RCF180S
Drilling Depth:
180m
Once-time Advance Length:
2.4m
Pipe Length:
2m
Lifting Force:
15T
Rotary Speed:
45-65r/min
Weight:
2700kg
Diesel Engine:
77.3KW Yuchai Engine
Max Torque Of Rotary:
4000-4600Nm
Dimension（L*W*H):
2300×1200×1900MM
Highlight:

77.3 KW Water Well Drilling Rig

,

180-Meter Water Well Drilling Rig

,

Crawler Tracks Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth online Video

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Get Best Price
Good price RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3 online Video

RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3

Get Best Price
Good price 500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine online Video

500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine

Get Best Price
Good price 150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption online Video

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Get Best Price
Contact Us
Contact Now
Product Description

180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks



Machine Description



The RCF180S water well drilling rig is powerful and equipped with a 77.3kw Yuchai diesel engine. The maximum depth can reach 180m and it can achieve a very high power output. The maximum torque can reach 4600Nm and can lift 15t. It is small in size but has strong drilling power.



The RCF180S is compact and light in weight. The whole machine weighs only 2700kg. It is easy and flexible to transport. It can work in narrow areas and can use mud pumps and air compressors for drilling. This machine is equipped with four high-pressure legs for easy loading and unloading.



The RCF180S is equipped with a 2m drill pipe. It is not only suitable for water well drilling but also for geothermal wells, geothermal heat pumps and other engineering projects. The machine is easy to operate and has a wide range of applicability. It is a small water well drilling rig with excellent performance.



Technical Parameters



Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine



Advantage



The RCF180S small water well drilling rig adopts a down-the-hole pneumatic design, can be equipped with an air compressor and a mud pump, uses a top drive and a dual-motor rotary head, and is equipped with a 77.35kw Yuchai diesel engine to provide strong power and torque. The maximum depth can reach 180m, and the rubber crawler is suitable for various complex terrains. The centralized full hydraulic control console makes operation faster and improves work efficiency.



Image Display

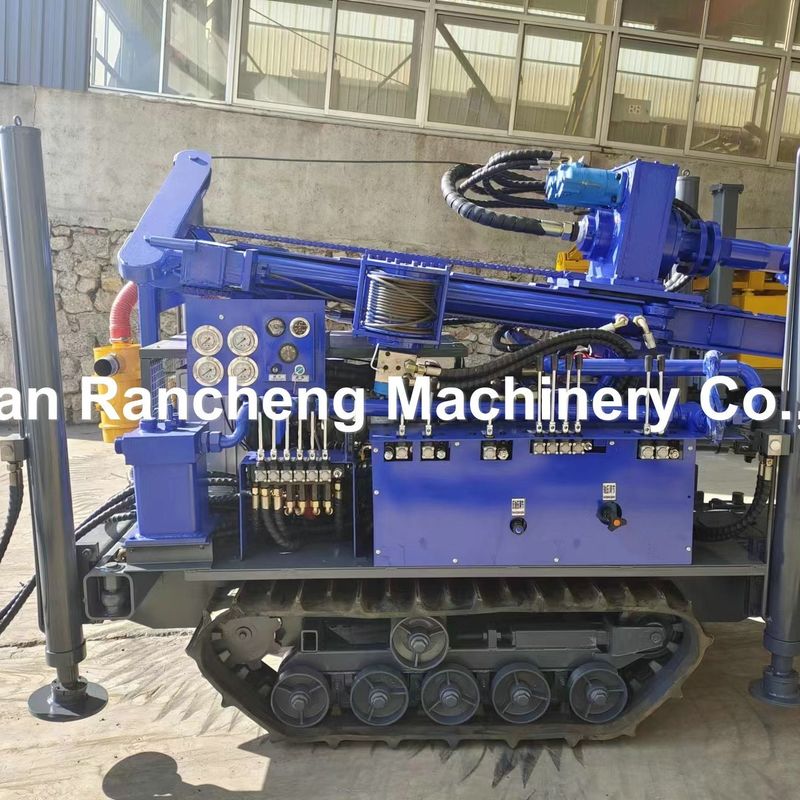

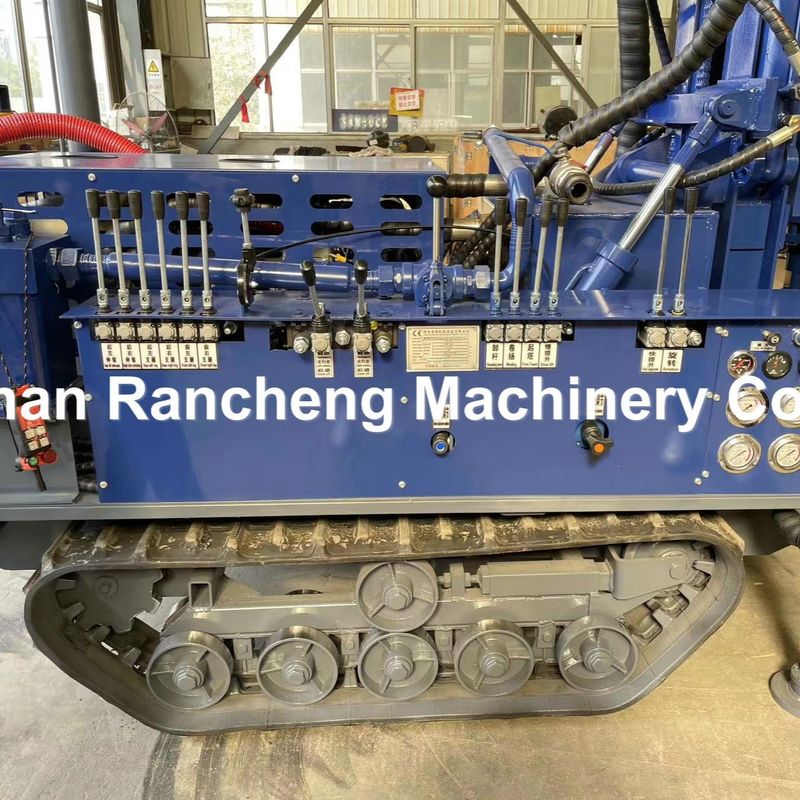

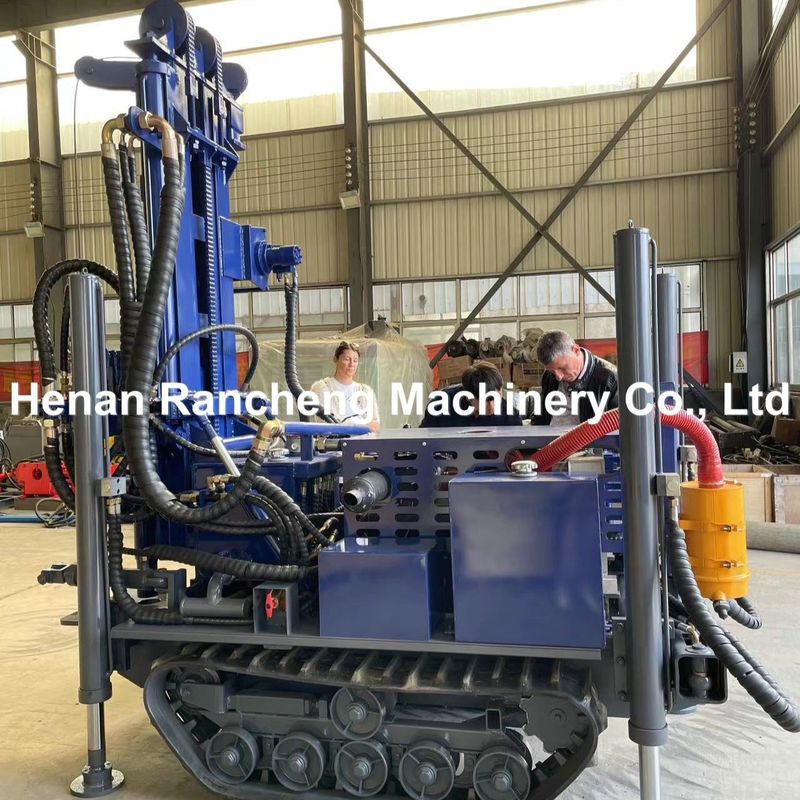

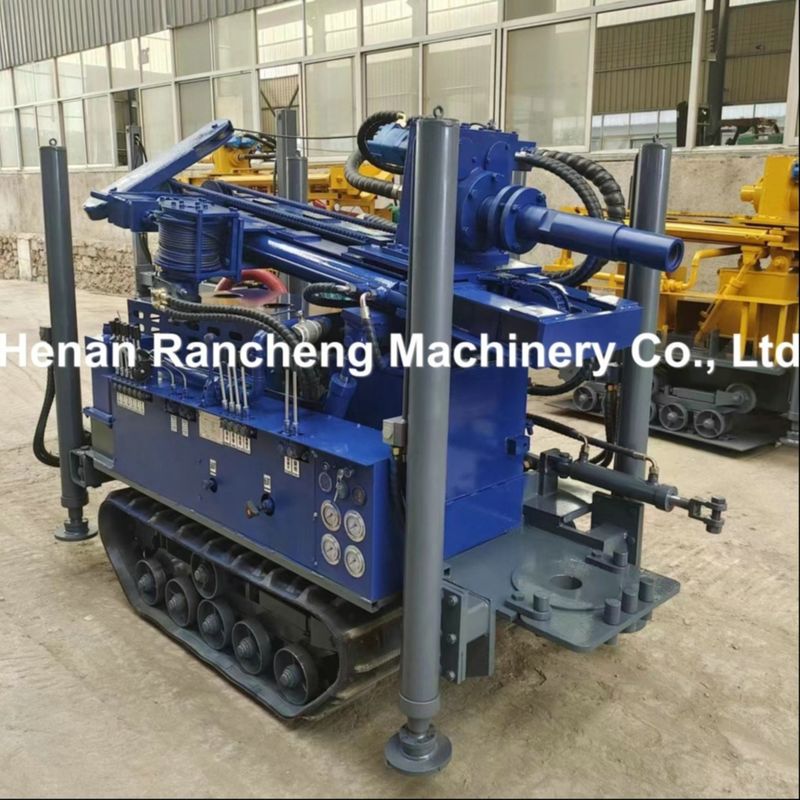

180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 0180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 1180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 2180-Meter Deep Water Well Drilling Rig With A 77.3 KW Engine And Crawler Tracks 3
