Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump

Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump

hydraulic DTH Drilling Rig

BW250 Mud Pump DTH Drilling Rig

200m Rubber Crawler DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE,ISO 9001:2000

Model Number:

RCF200C

Contact Us
Request A Quote
Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump
Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump
Product Details
Name:
RCF200C Crawler Mounted Water Well Drilling Machine
Bore Diameter:
90-350mm
Bore Depth:
200m
Pipe Diameter:
76mm/89mm
Pipe Length:
3m
High Hydraulic Leg:
1.5m
Feeding Efficiency:
10-35m/h
Diesel Engine:
58KW Yuchai
Highlight:

hydraulic DTH Drilling Rig

,

BW250 Mud Pump DTH Drilling Rig

,

200m Rubber Crawler DTH Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth online Video

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth

Get Best Price
Good price RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3 online Video

RCF150S Water Well Drilling Machine with 150m Drilling Depth and 17-31m sup3

Get Best Price
Good price 500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine online Video

500m Hydraulic Water Well Drilling Rig For Water Well Borehole Core Mining RC Drilling Machine

Get Best Price
Good price 150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption online Video

150m Hydraulic Water Well Drilling Machine For 17 - 31m³/Min Air Consumption

Get Best Price
Contact Us
Contact Now
Product Description

Rubber Crawler hydraulic DTH Drilling Rig 200m Machine with BW250 Mud Pump

Product Description

RCF200C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs with greater pneumatic power play an important role in improving drilling speed.



Using high-quality materials and stylish and compact design, the drilling rig is more efficient, has a low failure rate, is more economical and durable, and has a high overall cost-effectiveness. Our water well drilling rigs have been truly verified by the market and received positive feedback from customers.





Technical Parameters



Model RCF200C
Bore diameter(Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4000X1800X2300mm
Weight 5000Kg
Diesel engine

58KW Yuchai



Application



Adopting the latest models and advanced hydraulic technology, with low consumption, large rotation torque and convenient hole deflection, our water well drilling rigs are mainly used for drilling of resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.

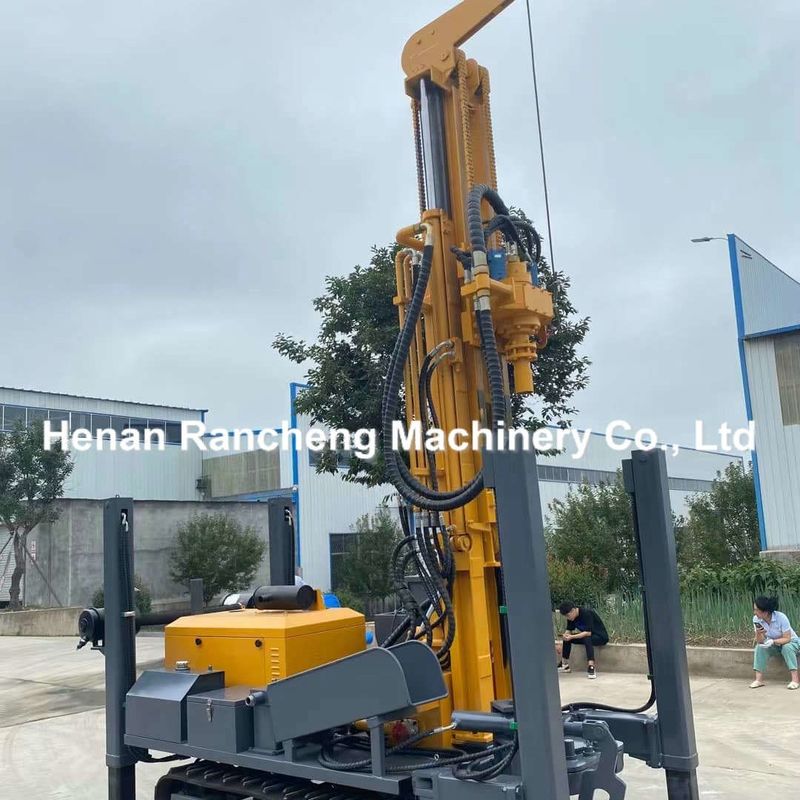

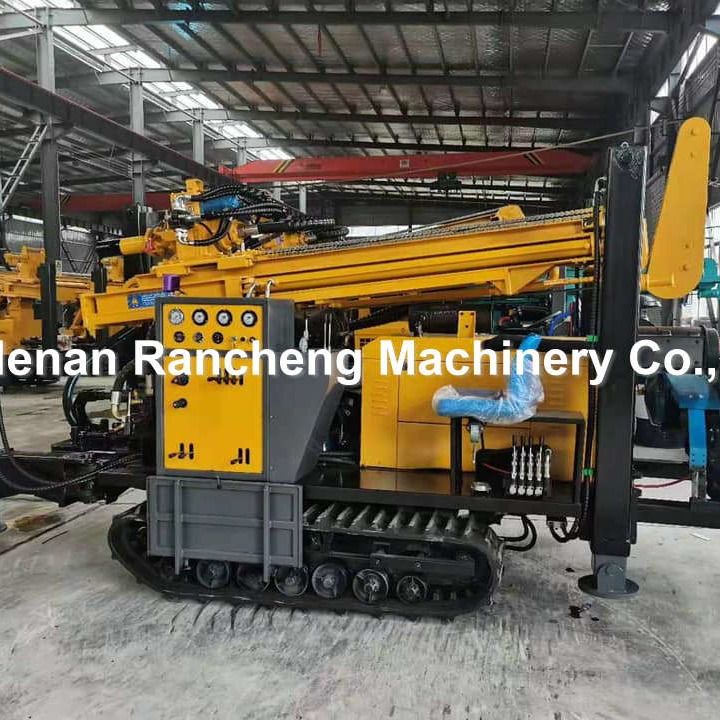

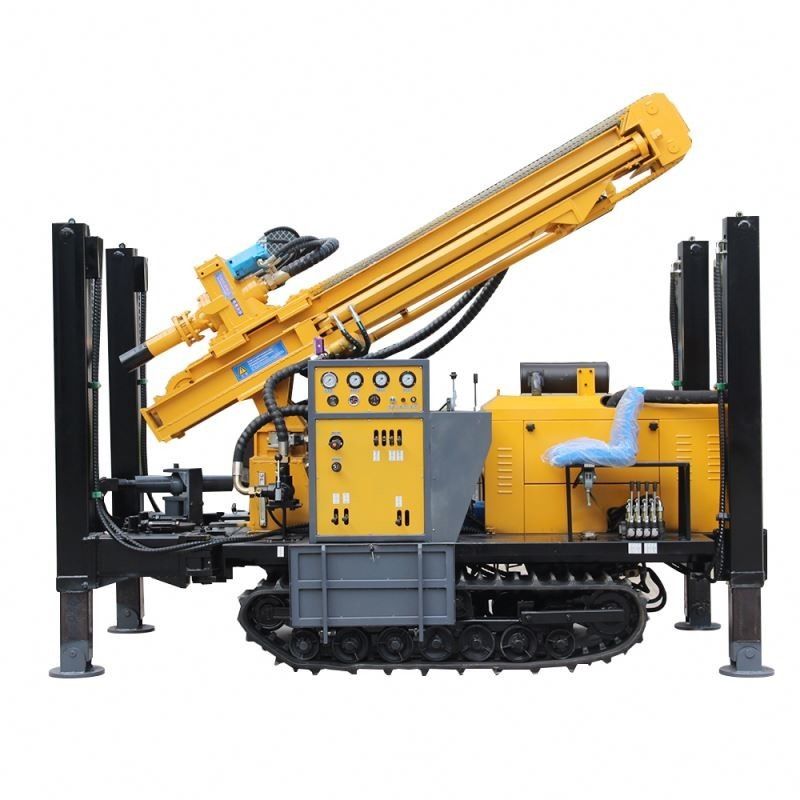

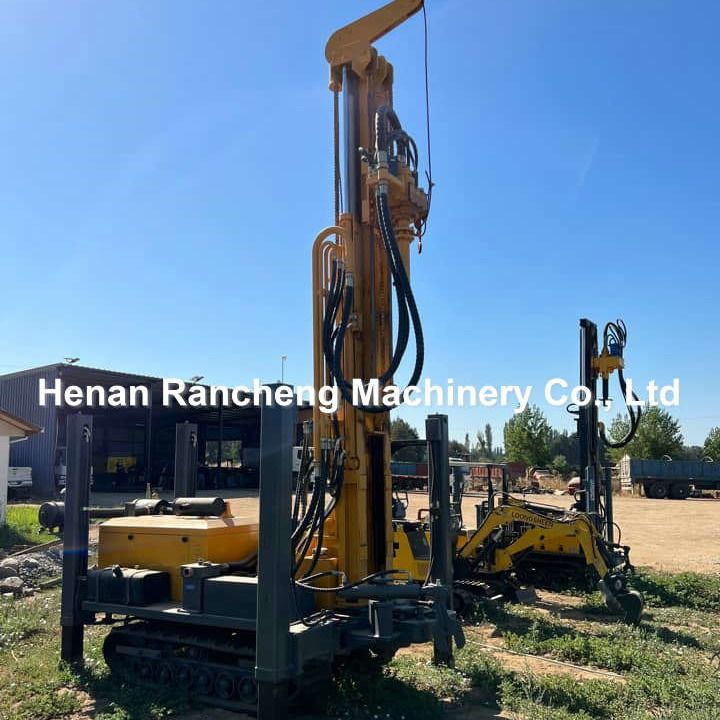

The Machine picture



Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump 0Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump 1

Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump 2

Rubber Crawler Hydraulic DTH Drilling Rig 200m Machine With BW250 Mud Pump 3
