150m Deep Compact Portable Crawler Drilling Rig For Water Borehole Projects
Products Description
The RCF150S is a convenient water drilling machine that weighs only 2,300 kg, making it easy to transport and set up. This machine is perfect for various applications, including farm irrigation, yard wells, geothermal wells, and industrial water drilling projects. It can drill deep holes of up to 150 meters, with diameters ranging from 90 mm to 300 mm, making it suitable for different water projects. Equipped with two motors for rotation, it can also utilize mud pumps and air compressors, allowing it to drill effectively through all soil types.
Machine Specifications
| Bore diameter(hammer) |
90-300mm |
| Bore depth |
150m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Once-time advance length |
2.4m |
| Pipe diameter |
76mm/89mm |
| Pipe length |
2m |
| Push force |
4T |
| Lifting force |
12T |
| Max torque of rotary |
3500-3800Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
2300×1200×1900MM |
| weight |
2300kg |
| Diesel engine |
42KW Yunnei engine |
Machine Advantages
The RCF150S is a compact and portable rubber track drilling rig, weighing only 2300 kg and measuring 2300 x 1200 x 1900 mm. Its lightweight and versatile design makes it perfect for a variety of drilling tasks, offering easy transportation and setup.
This rig utilizes a down-the-hole pneumatic system, featuring a dual-motor rotating head with top drive, as well as a mud pump and air compressor. The dual motors enhance torque and rotation speed, ensuring efficient drilling capabilities.
Powered by a 42 kW Yunnei engine, the RCF150S can drill up to 150 meters deep with diameters between 90 and 300 mm. Its rubber track design provides smooth movement, while the fully hydraulic legs and operating system ensure stability and ease of operation.
The rig's hydraulic system and overall design have been optimized for improved performance and efficiency. Its compact and adaptable nature makes it ideal for use in confined spaces such as courtyards.

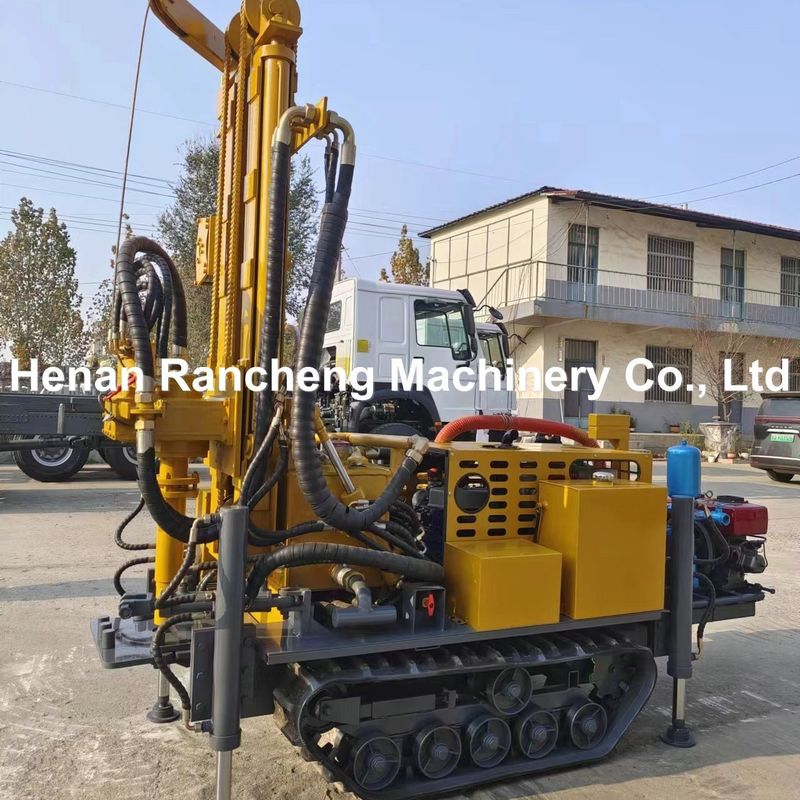

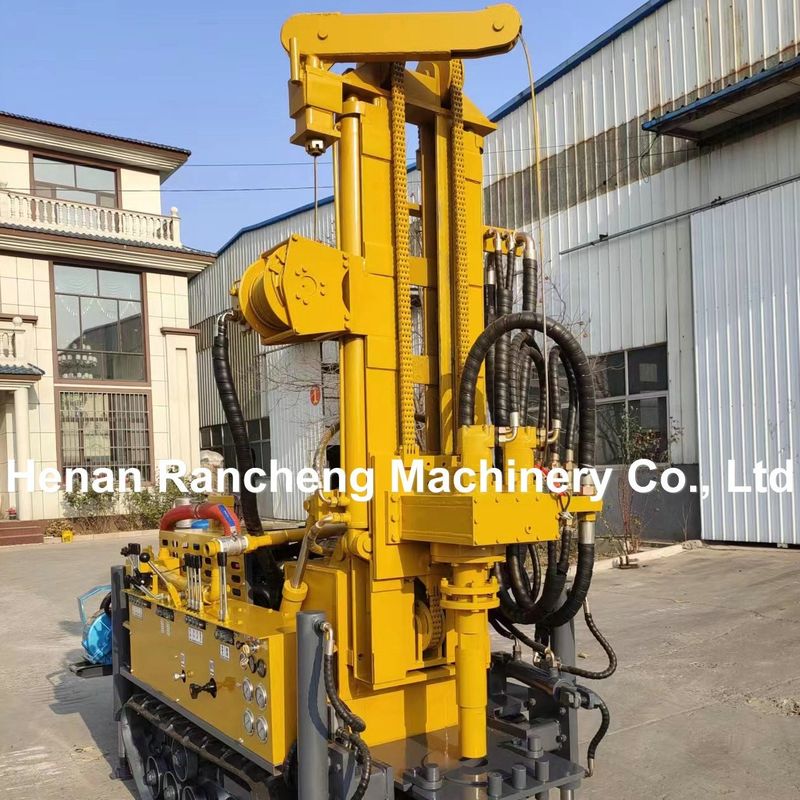

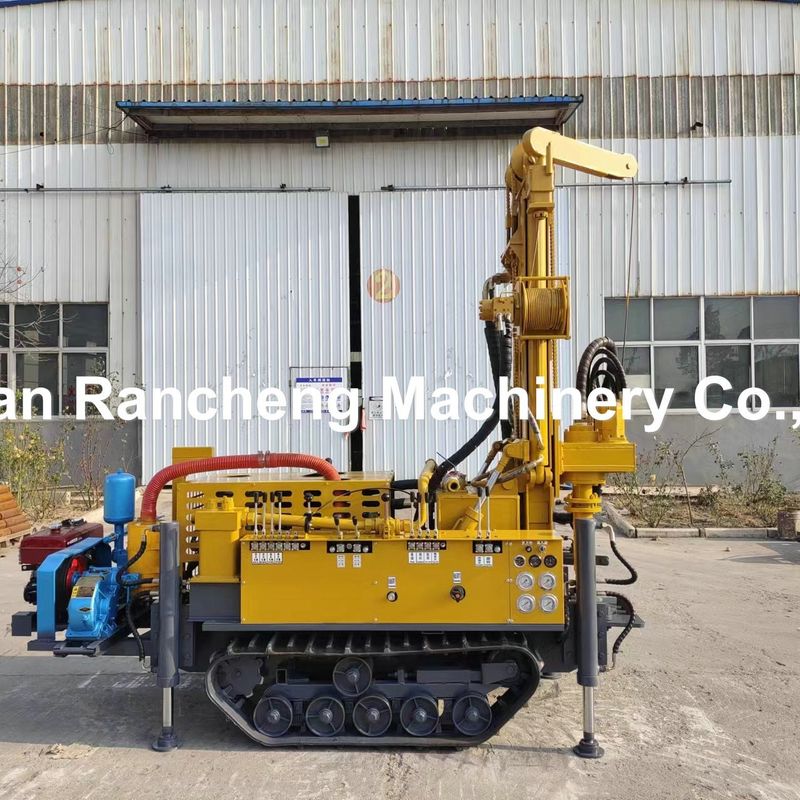

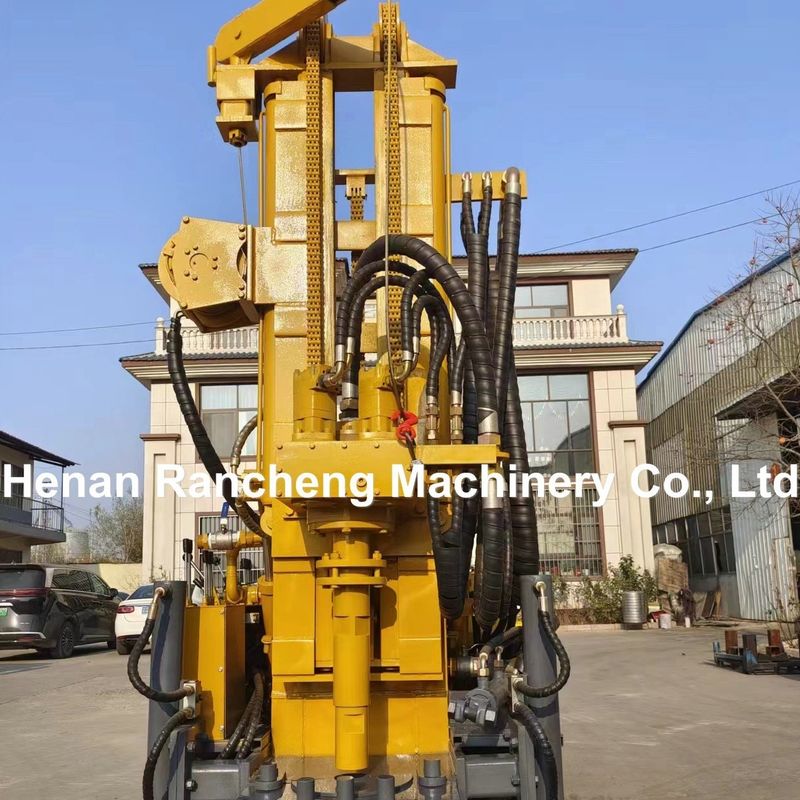

Machine Pictures
