High hydraulic support legs 350m crawler Borehole water well drilling rig with 91KW engine
Product Description
The RCF350C Water Hole Drilling Machine is a state-of-the-art and dependable piece of equipment, built for efficient drilling across various applications such as irrigation wells, drinking water wells, geothermal wells, and industrial wells. Powered by a robust 91KW Yuchai diesel engine, it ensures outstanding performance even for the most demanding drilling tasks.
Designed with a crawler-mounted base, the machine offers superior mobility and stability on uneven and rough terrains. Its top head rotation drive allows for both mud pump and DTH air drilling, offering versatility in tackling different geological conditions. The RCF350C can drill to depths of up to 350 meters and handle diameters as large as 350 mm, providing flexibility for a wide range of drilling projects.
With its focus on efficiency, reliability, and adaptability, this machine is the ideal solution for drilling needs, whether for small or large-scale operations.
Technical Parameters
| Model |
RCF350C |
| Bore diameter(Hammer) |
140-350mm |
| Bore depth |
350m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m/6m |
| Lifting force |
22T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
6200-8500Nm |
| Rotary speed |
55-115r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6000×2000×2550mm |
| Weight |
8600Kg |
| Diesel engine |
91KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
| Operating system |
Full hydraulic operation |
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

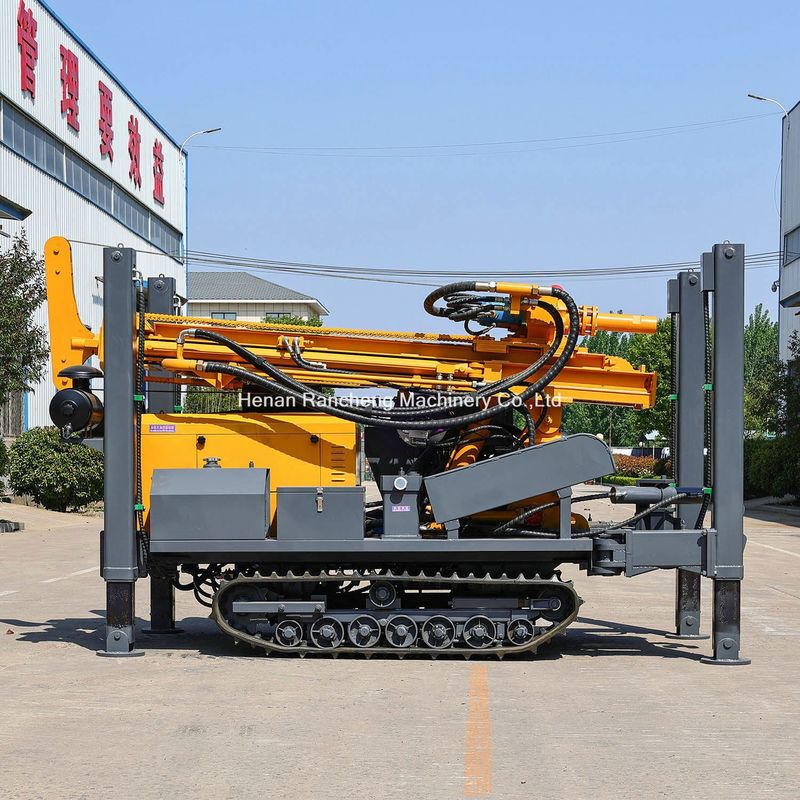

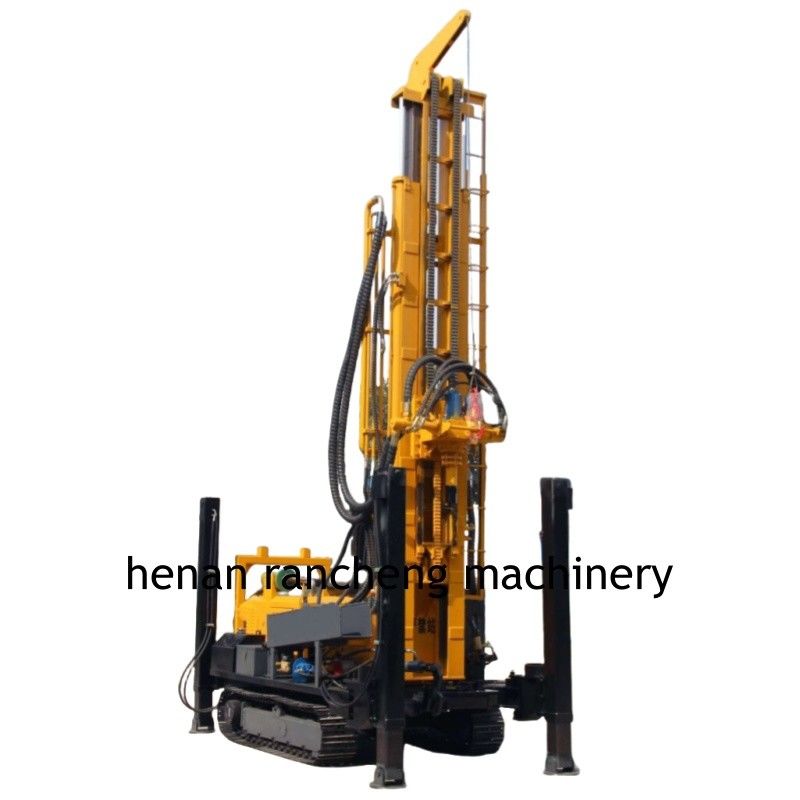

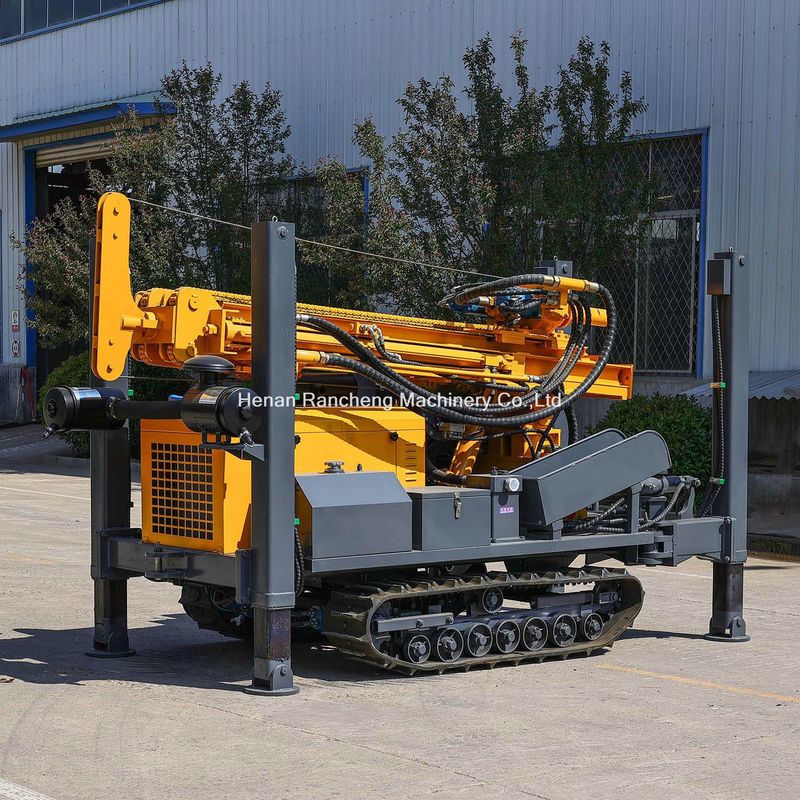

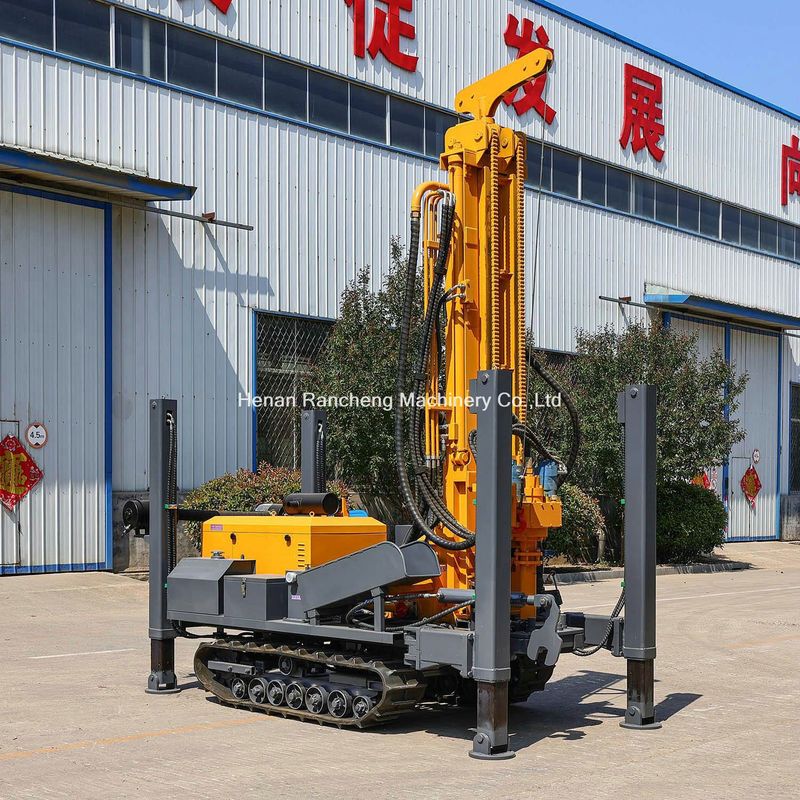

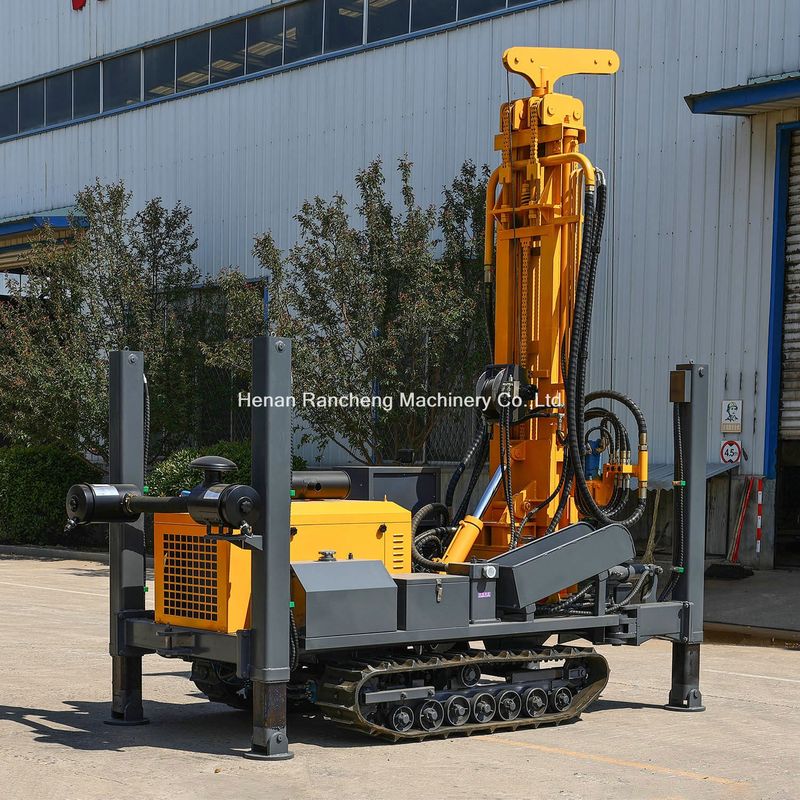

Machine picture display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
