China New Top Drive Drilling Rig And Hard Rock Mud/Air Drilling Machines 300m Geological Rig

Hard Rock Mud Air Drilling Machines

300m Geological Rig

Top Drive Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF300C

Chat Now

Product Details

Name:

RCF300C Water Well Drilling Rig

Bore Diameter（hammer）:

100-350mm

Bore Depth:

300m

Air Consumption:

17-36m³/min

Air Pressure:

1.7-3.0Mpa

Highlight:

Hard Rock Mud Air Drilling Machines

300m Geological Rig

Top Drive Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Chat Now

Product Description

China New Top Drive Drilling Rig and Hard Rock Mud/Air Drilling Machines 300m Geological Rig

Product Description

RCF300C deepwater well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs with greater pneumatic power play an important role in increasing drilling speed.

Using high-quality materials and stylish and compact design, the drilling rig is more efficient, has a low failure rate, is more economical and durable, and has a high overall cost-effectiveness. Our water well drilling rigs have been truly verified by the market and received positive feedback from customers.

Technical Parameters

Model	RCF300C
Bore diameter(Hammer)	100-350mm
Bore depth	300m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m
Lifting force	18T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	7000-9000Nm
Rotary speed	40-70r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4200×2200×2600mm
Weight	7200Kg
Diesel engine	85KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Application

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

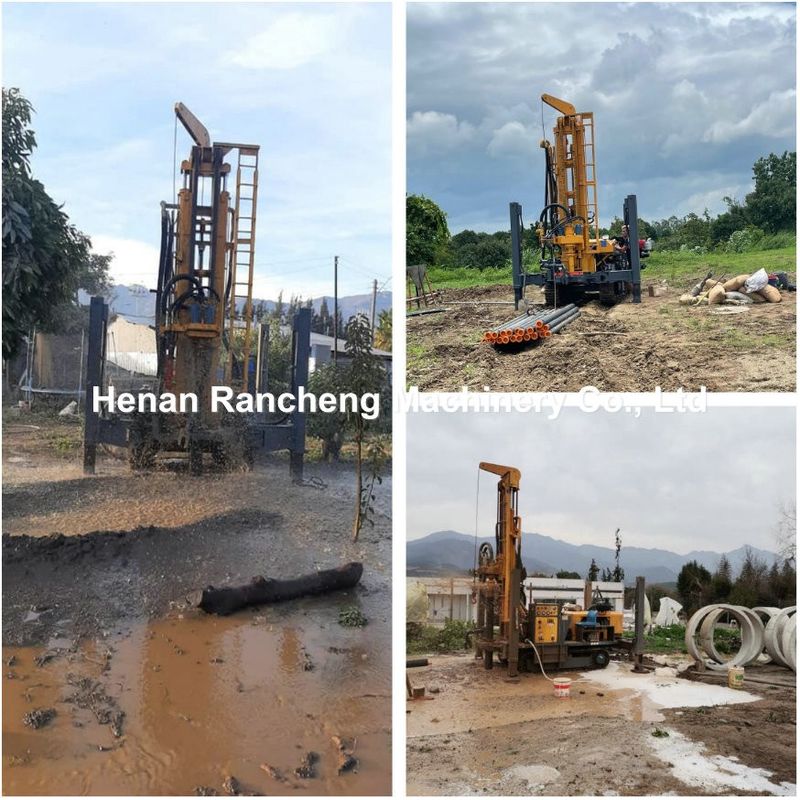

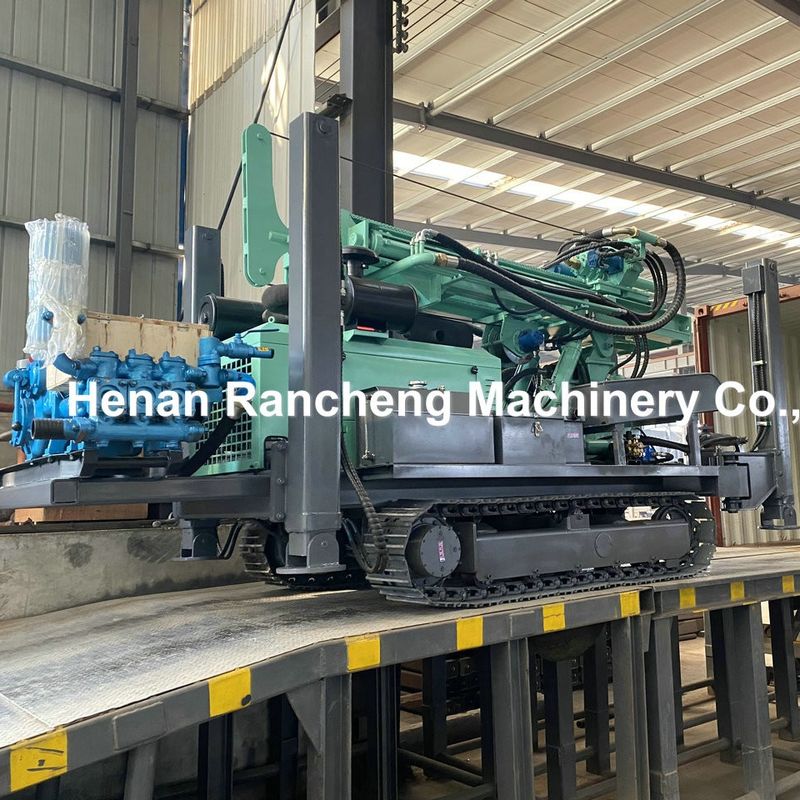

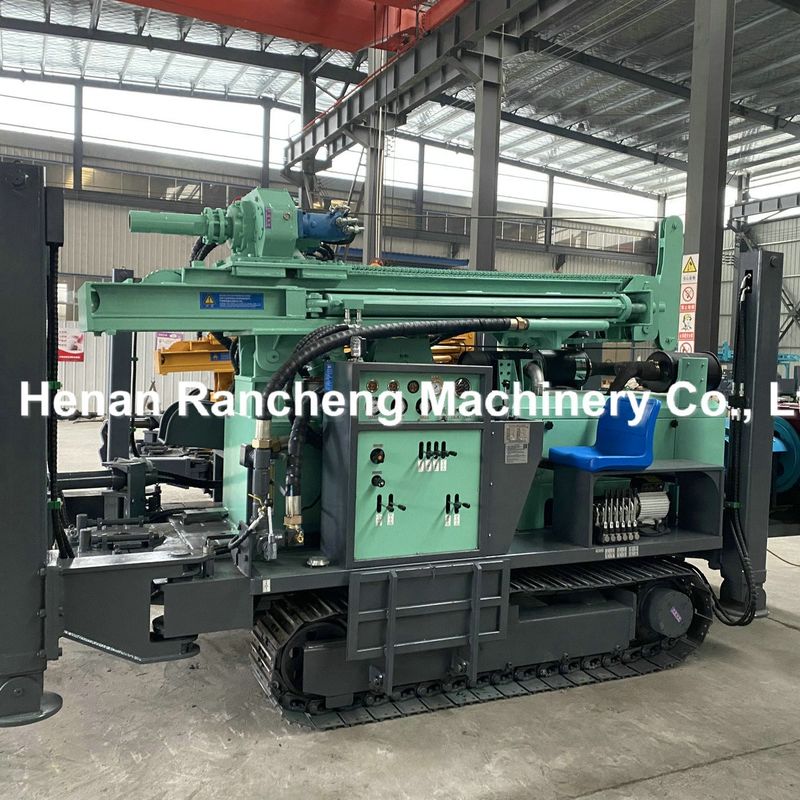

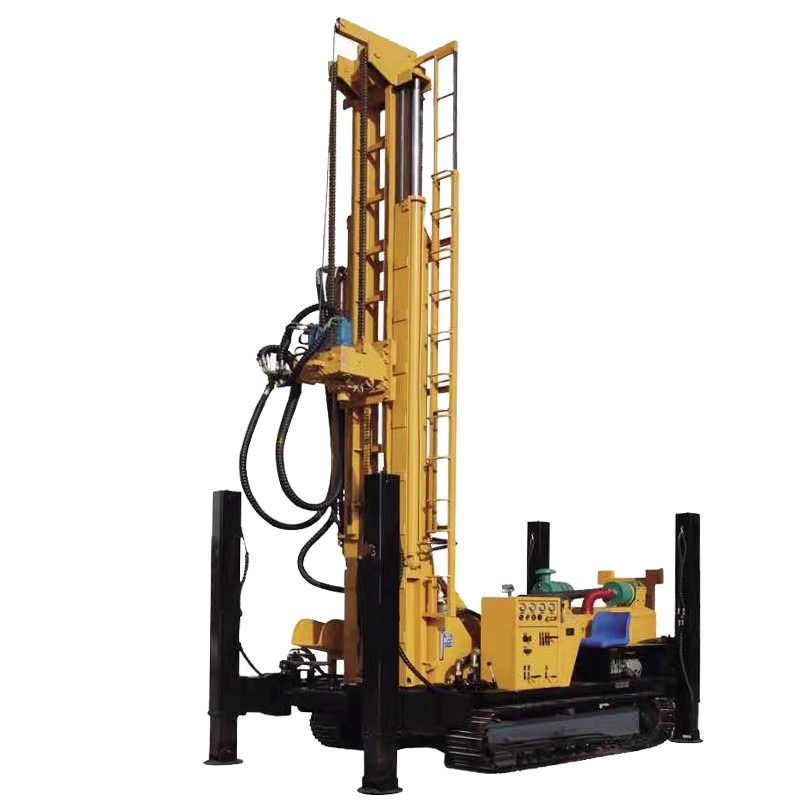

Machine picture display

China New Top Drive Drilling Rig And Hard Rock Mud/Air Drilling Machines 300m Geological Rig 0
